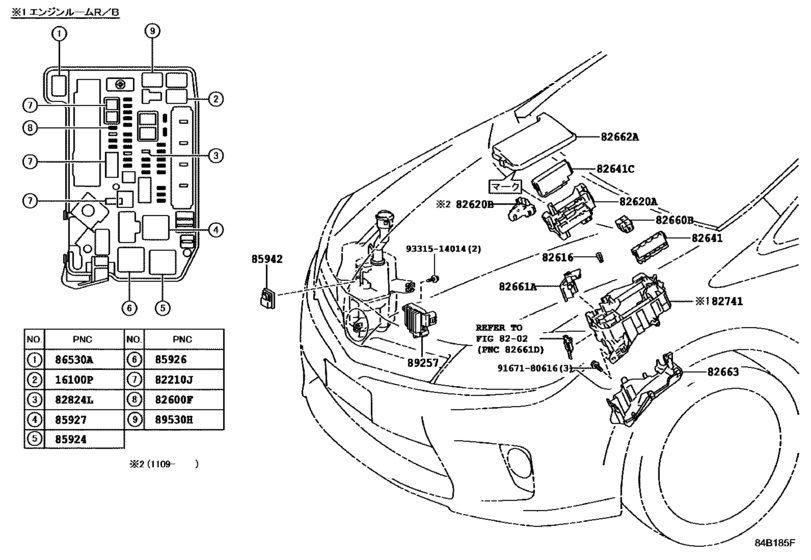

Switch & Relay & Computer ([11.2009 - 08.2013] ｴﾝｼﾞﾝﾙｰﾑ (0911-1308)) Diagram Toyota SAI
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- AZK10
- grade
- S
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 11.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- SAI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02028 Relay, Water Pump[11.2009 - 08.2013] 2AZFXE..AZK10..CBU |
90987-02028 |
from US $44.54 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[11.2009 - 08.2013] AZK10..CBU ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08297 Fusible Link[11.2009 - 08.2013] AZK10..CBU １２５Ａ |
90982-08297 |
US $8.32 |
||
|
82210J
|
82210J
90982-08301 Fusible Link[11.2009 - 08.2013] AZK10..CBU ５０Ａ−３０Ａ−４０Ａ，メス端子 |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[11.2009 - 08.2013] AZK10..CBU ６０Ａ，メス端子 |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2009 - 08.2013] AZK10..CBU ３０Ａ，メス端子,インストルメントパネルＪ／Ｂ |
90982-08306 |
US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[11.2009 - 08.2013] AZK10..CBU ４０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2009 - 08.2013] AZK10..CBU ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2009 - 08.2013] AZK10..CBU １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2009 - 08.2013] AZK10..CBU １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2009 - 08.2013] AZK10..CBU ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2009 - 08.2013] AZK10..CBU ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2009 - 08.2013] AZK10..CBU ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[11.2009 - 03.2010] AZK10..CBU |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [11.2009 - 08.2013] AZK10..CBU |
82620-75010 |
US $57.02 |
||
|
82620A
|
82620A
82620-75040 Block Assy, Fusible Link[08.2013 -] AZK10..CBU |
82620-75040 |
US $57.95 |
||
|
82620B
|
82620B
82620-75030 Block Assy, Fusible Link[11.2011 - 08.2013] AZK10..CBU |
82620-75030 |
US $9.76 |
||
|
82641
|
82641
82641-71010 Relay, Integration No.1[11.2009 - 08.2013] AZK10..CBU |
82641-71010 |
from US $146.21 |
||
|
82641C
|
82641C
82641-75062 Relay, Integration No.2[11.2009 - 09.2010] AZK10..S..CBU |
82641-75062 |
US $96.10 |
||
|
82641C
|
82641C
82641-75070 Relay, Integration No.1[08.2013 -] AZK10..S..CBU |
82641-75070 |
US $88.80 |
||
|
82641C
|
82641C
82641-75080 Relay, Integration No.1[10.2010 - 11.2011] AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）＆寒冷地仕様＆ヘッドランプ−ＬＥＤ＆フロントフォ グランプ−有り; AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）＆寒冷地仕様＆ヘッドランプ−ＬＥＤ＆フロントフォ グランプ−有り＆バックモニタ（リヤテレビジョンカメラ）−有り（ガイド付き ＆ ＊Ｗ ＶＦＭ）; AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）＆ヘッドランプ−ＬＥＤ＆フロントフォグランプ−有 り; AZK10.. |
82641-75080 |
US $88.80 |
||
|
82641C
|
82641C
82641-75090 Relay, Integration No.2[09.2010 - 11.2011] AZK10..S..CBU |
82641-75090 |
US $96.10 |
||
|
82641C
|
82641C
82641-75091 Relay, Integration No.2[11.2011 - 08.2013] AZK10..CBU |
82641-75091 |
US $80.08 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [11.2009 - 08.2013] AZK10..CBU |
82660-75010 |
from US $11.50 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [11.2009 - 08.2013] AZK10..CBU |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-75010 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [11.2009 - 09.2010] AZK10..CBU マーク＝Ａ２ |
82662-75010 |
US $38.15 |
||
|
82662A
|
82662A
82662-75011 Cover, Relay Block, Upper, No.1[09.2010 - 10.2011] AZK10..CBU マーク＝Ａ３ |
82662-75011 |
US $38.15 |
||
|
82662A
|
82662A
82662-75012 Cover, Relay Block, Upper, No.1[10.2011 - 08.2013] AZK10..CBU マーク＝Ａ４ |
82662-75012 |
US $31.74 |
||
|
82662A
|
82662A
82662-75020 Cover, Relay Block, Upper, No.1[08.2013 - 05.2015] AZK10..CBU マーク＝Ａ５ |
82662-75020 |
US $31.74 |
||
|
82662A
|
82662A
82662-75030 Cover, Relay Block, Upper, No.1[05.2015 -] AZK10..CBU マーク＝Ａ６ |
82662-75030 |
US $28.83 |
||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [11.2009 - 08.2013] AZK10..CBU |
82663-75010 |
US $39.06 |
||
|
82741
|
82741
82741-47020 Block, Engine Room Relay[11.2011 - 08.2013] AZK10..CBU |
82741-47020 |
US $81.40 |
||
|
82741
|
82741
82741-75010 Block, Engine Room RelayENGINE ROOM RELAY [11.2009 - 11.2011] AZK10..CBU |
82741-75010 |
US $75.24 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[11.2009 - 08.2013] AZK10..CBU |
82824-41010 |
from US $3.12 |
||
|
85924
|
85924
90987-02025 Relay[11.2009 - 08.2013] AZK10..CBU |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[05.2010 - 08.2013] AZK10..CBU; AZK10..S..CBU ヘッドランプ−ＬＥＤ; AZK10..G..CBU ツーリングＡ; AZK10..G..CBU ツーリング |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[11.2009 - 05.2010] AZK10..CBU; AZK10..S..CBU ヘッドランプ−ＬＥＤ; AZK10..G..CBU ツーリングＡ; AZK10..G..CBU ツーリング |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02025 Relay[11.2009 - 08.2013] AZK10..CBU |
90987-02025 |
from US $44.54 |
||
|
85942
|
85942
85942-30040 Relay, Cleaner Control[08.2013 -] AZK10..CBU 寒冷地仕様 |
85942-30040 |
from US $52.62 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[10.2010 - 11.2011] AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）＆ヘッドランプ−ＬＥＤ |
85942-58010 |
from US $111.97 |
||
|
86530A
|
86530A
90987-02027 Relay[11.2009 - 08.2013] AZK10..CBU |
90987-02027 |
from US $44.54 |
||
|
89257
|
89257
89257-30080 Computer, Cooling Fan[11.2009 - 08.2013] AZK10..CBU |
89257-30080 |
from US $226.08 |
||
|
89530H
|
89530H
90987-02027 Relay[09.2010 - 08.2013] AZK10..CBU |
90987-02027 |
from US $44.54 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.66 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
