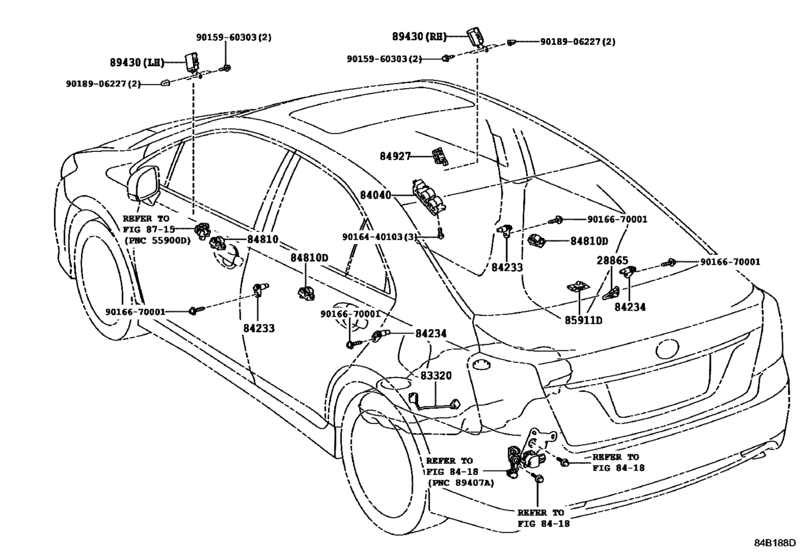

Switch & Relay & Computer ([11.2009 - 08.2013] ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ (0911-1308)) Diagram Toyota SAI
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- AZK10
- grade
- S
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 11.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- SAI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28865
|
28865
28865-28040 Sensor, Battery ThermometerBATTERY THERMOMETER [11.2009 - 08.2013] 2AZFXE..AZK10..CBU |
28865-28040 |
US $71.49 |
||
|
83320
|
83320
83320-75010 Gage Assy, Fuel SenderFUEL SENDER [11.2009 - 08.2013] AZK10..CBU |
83320-75010 |
US $36.69 |
||
|
84040
|
84040
84040-30250 Master Switch Assy,multiplex Network[08.2013 -] AZK10..CBU |
84040-30250 |
US $236.16 |
||
|
84040
|
84040
84040-33080 Master Switch Assy, Power window regulator[11.2009 - 08.2013] AZK10..CBU |
84040-33080 |
from US $177.22 |
||
|
84233
|
84233
84231-30380 Switch, Courtesy Lamp[06.2013 - 08.2013] AZK10..CBU |
84231-30380 |
US $10.56 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[11.2009 - 05.2013] AZK10..CBU |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-30380 Switch, Courtesy Lamp[06.2013 - 08.2013] AZK10..CBU |
84231-30380 |
US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[11.2009 - 05.2013] AZK10..CBU |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-30220 Switch Assy, Power Window Regulator[08.2013 -] AZK10..CBU |
84810-30220 |
from US $46.66 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[11.2009 - 08.2013] AZK10..CBU |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[11.2009 - 08.2013] AZK10..CBU |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-30220 Switch Assy, Power Window Regulator[08.2013 -] AZK10..CBU |
84810-30220 |
from US $46.66 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[11.2009 - 08.2013] AZK10..CBU |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[11.2009 - 08.2013] AZK10..CBU |
84810-06090 |
US $211.68 |
||
|
85911D
|
85911D
85911-30020 Relay, Rear Sunshade[11.2009 - 08.2013] AZK10..CBU サンシェード−有り |
85911-30020 |
US $235.87 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
