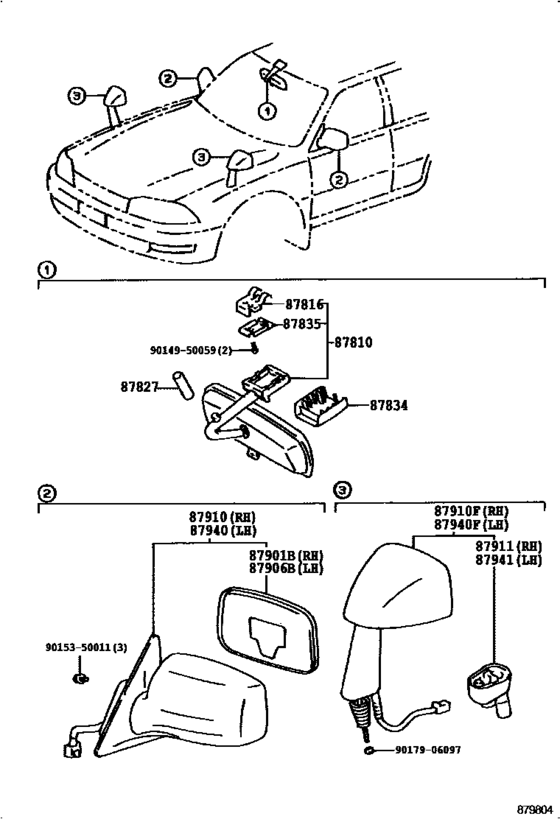

Mirror ([07.1992 - 08.1996] (9207-9608)) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-06010-B0 Mirror Assy, Inner Rear View[07.1992 - 07.1996] SXV15,VCV15 MED. GRAY,TRIM1# |
87810-06010-B0 |
US $122.30 |
||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[07.1992 - 07.1996] SXV15,VCV15 |
74372-30030 |
from US $2.97 |
||
|
87827
|
87827
87828-03010
Absorber, Inner Rear View Mirror
[07.1992 - 07.1996] SXV15,VCV15 長さ＝４４ |
87828-03010 |
— | ||
|
87827
|
87827
87828-87005 Absorber, Inner Rear View Mirror[07.1992 - 07.1996] SXV15,VCV15 L=49 |
87828-87005 |
from US $4.99 |
||
|
87834
|
87834
87834-06010-B0 Cover, Inner Rear View Mirror Stay Holder[07.1992 - 07.1996] SXV15,VCV15 LIGHT GRAY,TRIM1# |
87834-06010-B0 |
US $3.79 |
||
|
87835
|
87835
87835-06010 Protector, Inner Mirror Spring[07.1992 - 07.1996] SXV15,VCV15 |
87835-06010 |
US $13.40 |
||
|
87901B
|
87901B
87931-32510
Mirror Sub-Assy, Outer Rear View, Rh
[08.1994 - 07.1996] SXV15,VCV15 |
87931-32510 |
— | ||
|
87901B
|
87901B
87931-32520 Mirror Sub-Assy, Outer Rear View, Rh[07.1992 - 08.1994] VCV15 |
87931-32520 |
US $382.93 |
||
|
87906B
|
87906B
87961-32540
Mirror Sub-Assy, Outer Rear View, Lh
[08.1994 - 07.1996] SXV15,VCV15 |
87961-32540 |
— | ||
|
87906B
|
87906B
87961-32550 Mirror Sub-Assy, Outer Rear View, Lh[07.1992 - 08.1994] VCV15 |
87961-32550 |
US $382.93 |
||
|
87910
|
87910
87910-32510-B2 Mirror Assy, Outer Rear View, Rh[08.1994 - 07.1996] SXV15,VCV15..CP SUPER SILVER ME.,1A0 |
87910-32510-B2 |
US $492.13 |
||
|
87910
|
87910
87910-32510-D5 Mirror Assy, Outer Rear View, Rh[08.1994 - 07.1996] SXV15,VCV15..CP SU.RED 3,3J6 |
87910-32510-D5 |
US $492.13 |
||
|
87910
|
87910
87910-32510-J3 Mirror Assy, Outer Rear View, Rh[08.1994 - 07.1996] SXV15,VCV15 DK.BLUE MM.,8K0 |
87910-32510-J3 |
US $492.13 |
||
|
87910
|
87910
87910-32520-B3 Mirror Assy, Outer Rear View, Rh[10.1993 - 08.1994] VCV15..CP SUPER SILVER ME.,1A0 |
87910-32520-B3 |
US $990.08 |
||
|
87910
|
87910
87910-32520-D0 Mirror Assy, Outer Rear View, Rh[10.1993 - 08.1994] VCV15..CP SUPER RED 3,3J6 |
87910-32520-D0 |
US $990.08 |
||
|
87910
|
87910
87910-32520-J3 Mirror Assy, Outer Rear View, Rh[09.1993 - 08.1994] VCV15 DK.BLUE MM.,8K0 |
87910-32520-J3 |
US $990.08 |
||
|
87940
|
87940
87940-32540-B2 Mirror Assy, Outer Rear View, Lh[08.1994 - 07.1996] SXV15,VCV15..CP BLUISH SILVER ME.,1A0 |
87940-32540-B2 |
US $492.13 |
||
|
87940
|
87940
87940-32540-D5 Mirror Assy, Outer Rear View, Lh[08.1994 - 07.1996] SXV15,VCV15..CP SU.RED 3,3J6 |
87940-32540-D5 |
US $492.13 |
||
|
87940
|
87940
87940-32540-J3 Mirror Assy, Outer Rear View, Lh[08.1994 - 07.1996] SXV15,VCV15 DK.BLUE M.M.,8K0 |
87940-32540-J3 |
US $492.13 |
||
|
87940
|
87940
87940-32550-B1 Mirror Assy, Outer Rear View, Lh[10.1993 - 08.1994] VCV15..CP BLUISH SILVER ME.,1A0 |
87940-32550-B1 |
US $990.08 |
||
|
87940
|
87940
87940-32550-D0 Mirror Assy, Outer Rear View, Lh[10.1993 - 08.1994] VCV15..CP SUPER RED 3,3J6 |
87940-32550-D0 |
US $990.08 |
||
|
87940
|
87940
87940-32550-J2 Mirror Assy, Outer Rear View, Lh[09.1993 - 08.1994] VCV15 DK.BLUE MM.,8K0 |
87940-32550-J2 |
US $990.08 |
||
|
9014950059
|
9014950059
90149-50059
New Genuine Part
|
90149-50059 |
— | ||
|
9015350011
|
9015350011
90153-50011 New Genuine Part |
90153-50011 |
US $0.92 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
