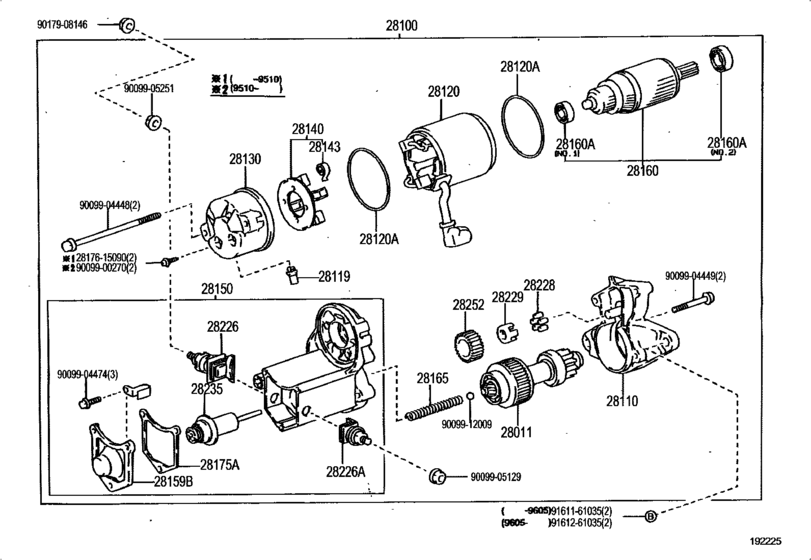

Starter ([07.1992 - 08.1996] 12V 1.4KW (9207-9608)) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-03010 Clutch Sub-Assy, Starter[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28011-03010 |
US $198.02 |
||
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-03030 Starter Assy[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 １２Ｖ １．４ＫＷ |
28100-03030 |
US $982.80 |
||
|
28100
|
28100
28100-03070 Starter Assy[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 １２Ｖ １．４ＫＷ |
28100-03070 |
US $1,557.92 |
||
|
28110
|
28110
28110-03010 Housing Assy, Starter Drive[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28110-03010 |
US $61.30 |
||
|
28110
|
28110
28110-74100 Housing Assy, Starter Drive[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28110-74100 |
US $90.27 |
||
|
28119
|
28119
28199-74110 Cover, Starter End Frame[07.1992 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28199-74110 |
US $2.97 |
||
|
28120
|
28120
28120-01030 Yoke Assy, Starter[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28120-01030 |
US $151.42 |
||
|
28120
|
28120
28120-74070
Yoke Assy, Starter
[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28120-74070 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[07.1992 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-03010 Frame Assy, Starter Commutator End[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28130-03010 |
US $22.13 |
||
|
28130
|
28130
28130-74100
Frame Assy, Starter Commutator End
[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28130-74100 |
— | ||
|
28140
|
28140
28140-03010 Holder Assy, Starter Brush[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28140-03010 |
US $19.07 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[07.1992 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
90099-17112 |
— | ||
|
28150
|
28150
28150-03020 Switch Assy, Magnet Starter[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28150-03020 |
US $222.77 |
||
| replacement | |||||
|
28150
|
28150
28150-74140 Switch Assy, Magnet Starter[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28150-74140 |
US $208.21 |
||
|
28150
|
28150
28150-74100 Switch Assy, Magnet Starter[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28150-74100 |
US $141.23 |
||
|
28159B
|
28159B
28159-07010
Cover, Starter Protector
[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28159-07010 |
— | ||
|
28160
|
28160
28160-03010 Armature Assy, Starter[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28160-03010 |
US $196.56 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28160-74070 |
— | ||
|
28160A
|
28160A
90068-10003
Bearing, Starter Armature
[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 ＮＯ．１ |
90068-10003 |
— | ||
|
28160A
|
28160A
90068-10004
Bearing, Starter Armature
[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 ＮＯ．２ |
90068-10004 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 N0.1 |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 ＮＯ．２ |
90099-10197 |
from US $7.34 |
||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[07.1992 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28165-74070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28175-55050 |
from US $1.91 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28226-64370 |
from US $7.12 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[07.1992 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28228-26040 |
— | ||
|
28229
|
28229
28229-03010 Retainer, Starter Idle Gear[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28229-03010 |
US $3.20 |
||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[07.1992 - 08.1994] 5SFE,3VZFE..SXV15,VCV15 |
28229-74070 |
US $1.46 |
||
|
28235
|
28235
28235-03080
Plunger, Magnet Switch
[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28235-03080 |
— | ||
|
28252
|
28252
28254-03010 Gear, Starter Idle[08.1994 - 07.1996] 5SFE,3VZFE..SXV15,VCV15 |
28254-03010 |
US $12.23 |
||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
