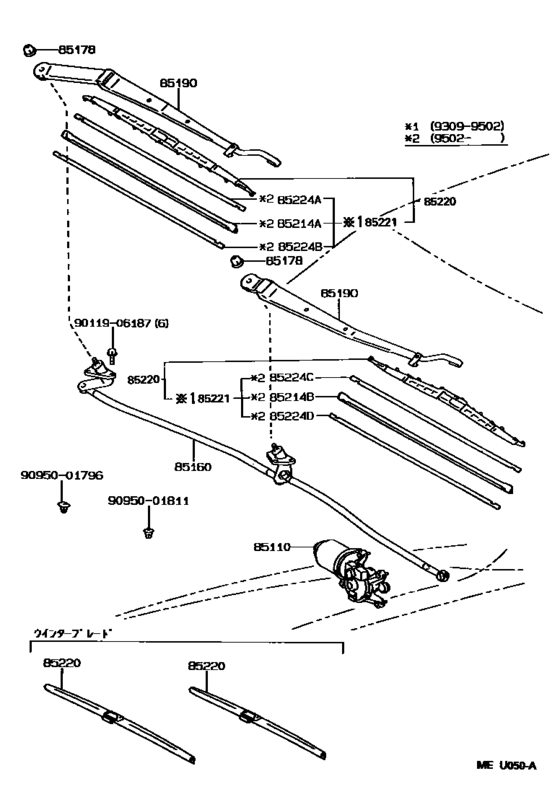

Windshield Wiper ([07.1992 - 08.1996] (9207-9608)) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-33060 Motor Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 |
85110-33060 |
US $407.68 |
||
| replacement | |||||
|
85110
|
85110
85110-33130 Motor Assy, Windshield WiperWINDSHIELD WIPER [07.1992 - 07.1996] SXV15,VCV15 |
85110-33130 |
US $409.14 |
||
|
85160
|
85160
85150-33060 Link Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 |
85150-33060 |
US $151.42 |
||
|
85178
|
85178
90176-08040
Nut (For Front Wiper Arm Setting)
[07.1992 - 02.1996] SXV15,VCV15 |
90176-08040 |
— | ||
| replacement | |||||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[07.1992 - 02.1996] SXV15,VCV15 |
90176-08051 |
US $2.08 |
||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[02.1996 - 07.1996] SXV15,VCV15 |
90176-08051 |
US $2.08 |
||
|
85190
|
85190
85211-33050 Arm Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 右側 |
85211-33050 |
US $71.34 |
||
|
85190
|
85190
85221-33030 Arm Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 左側 |
85221-33030 |
US $66.22 |
||
|
85214A
|
85214A
85214-33060
Rubber, Wiper, Rh
[08.1994 - 07.1996] SXV15,VCV15 |
85214-33060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-40080 Rubber, Wiper, Lh[08.1994 - 07.1996] SXV15,VCV15 |
85214-40080 |
from US $13.60 |
||
|
85214B
|
85214B
85214-60020 Rubber, Wiper, Lh[08.1994 - 07.1996] SXV15,VCV15 |
85214-60020 |
US $14.24 |
||
|
85220
|
85220
85212-33051 Blade Assy, Windshield Wiper[09.1992 - 07.1996] SXV15,VCV15 右側 |
85212-33051 |
US $48.78 |
||
| replacement | |||||
|
85220
|
85220
85222-40070
Blade, Fr Wiper, Lh
[09.1992 - 07.1996] SXV15,VCV15 右側 |
85222-40070 |
— | ||
|
85220
|
85220
85222-33120 Blade Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 左側 |
85222-33120 |
US $40.19 |
||
| replacement | |||||
|
85220
|
85220
85222-3H080 Blade Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 左側 |
85222-3H080 |
US $41.95 |
||
|
85220
|
85220
85291-22050
Blade Assy, Windshield Wiper
[07.1992 - 07.1996] SXV15,VCV15 ｱﾘ(ｳｲﾝﾀｰ ﾌﾞﾚｰﾄﾞ),右側 |
85291-22050 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-33060 Blade, Front Wiper, Winter, Rh[07.1992 - 07.1996] SXV15,VCV15 ｱﾘ(ｳｲﾝﾀｰ ﾌﾞﾚｰﾄﾞ),右側 |
85291-33060 |
US $72.96 |
||
|
85220
|
85220
85291-30030 Blade Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 ｱﾘ(ｳｲﾝﾀｰ ﾌﾞﾚｰﾄﾞ),左側 |
85291-30030 |
US $66.39 |
||
| replacement | |||||
|
85220
|
85220
85291-22080 Blade Assy, Windshield Wiper[07.1992 - 07.1996] SXV15,VCV15 ｱﾘ(ｳｲﾝﾀｰ ﾌﾞﾚｰﾄﾞ),左側 |
85291-22080 |
US $63.84 |
||
|
85221
|
85221
85213-20310
Rubber, Wiper Blade, Rh
[07.1992 - 08.1994] SXV15,VCV15 右側 |
85213-20310 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-40080 Rubber, Wiper, Lh[07.1992 - 08.1994] SXV15,VCV15 右側 |
85214-40080 |
from US $13.60 |
||
|
85221
|
85221
85223-33040
Blade, Windshield Wiper
[07.1992 - 08.1994] SXV15,VCV15 左側 |
85223-33040 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-60020 Rubber, Wiper, Lh[07.1992 - 08.1994] SXV15,VCV15 左側 |
85214-60020 |
US $14.24 |
||
|
85224A
|
85224A
85224-33050 Plate, Wiper Rubber Backing, No.1[08.1994 - 07.1996] SXV15,VCV15 |
85224-33050 |
US $5.07 |
||
|
85224B
|
85224B
85224-33050 Plate, Wiper Rubber Backing, No.1[08.1994 - 07.1996] SXV15,VCV15 |
85224-33050 |
US $5.07 |
||
|
85224C
|
85224C
85224-20300 Plate, Wiper Rubber Backing, No.3[08.1994 - 07.1996] SXV15,VCV15 |
85224-20300 |
US $5.53 |
||
|
85224D
|
85224D
85224-20300 Plate, Wiper Rubber Backing, No.3[08.1994 - 07.1996] SXV15,VCV15 |
85224-20300 |
US $5.53 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
|
9095001796
|
9095001796
90950-01796 PLUG |
90950-01796 |
US $2.62 |
||
|
9095001811
|
9095001811
90950-01811 New Genuine Part |
90950-01811 |
US $1.76 |
||
