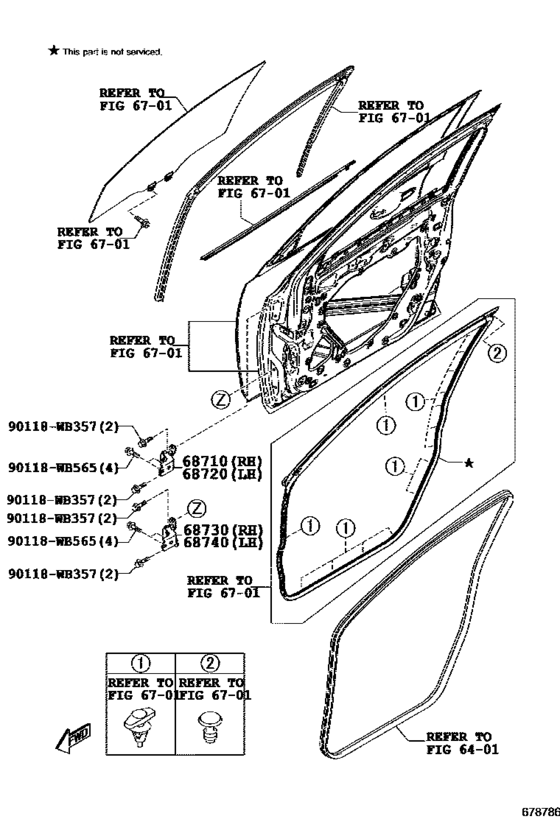

Front Door Window Regulator & Hinge ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-WB002
Hinge Assy, Front Door, Upper Rh
[08.2015 -] DD1C,1D |
68710-WB002 |
— | ||
|
68720
|
68720
68720-WB002
Hinge Assy, Front Door, Upper Lh
[08.2015 -] DD1C,1D |
68720-WB002 |
— | ||
|
68730
|
68730
68720-WB001
Hinge Assy, Front Door, Lower Rh
[08.2015 -] DD1C,1D |
68720-WB001 |
— | ||
|
68740
|
68740
68710-WB001
Hinge Assy, Front Door, Lower Lh
[08.2015 -] DD1C,1D |
68710-WB001 |
— |
