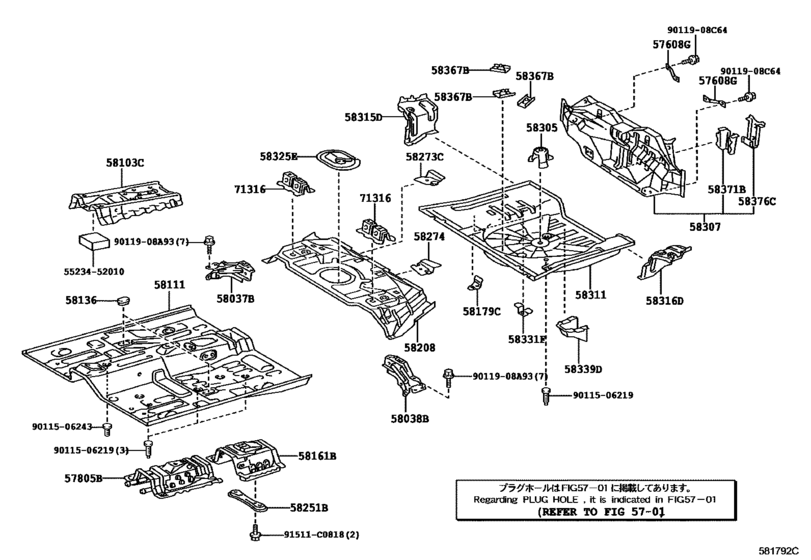

Floor Pan & Lower Back Panel ([04.2003 - ] (0304- )) Diagram Toyota SCION XA
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP61
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 04.2003
- To
- 12.2006
- Gear Shift Type
- 5F
- Vehicle Model
- XA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57608G
|
57608G
52185-52070 Brace Sub-Assy, Side Member To FloorSIDE MEMBER TO FLOOR [04.2003 - 07.2005] NCP61 RH |
52185-52070 |
US $22.71 |
||
|
57608G
|
57608G
52186-52030
Brace Sub-Assy, Side Member To Floor
[04.2003 - 07.2005] NCP61 LH |
52186-52030 |
— | ||
|
57805B
|
57805B
57805-52090 Reinforcement Sub-Assy, Belt Anchor, Rh[04.2003 - 07.2005] NCP61 |
57805-52090 |
US $177.63 |
||
|
58037B
|
58037B
57671-52080 Reinforce, Center Pillar To Floor, Rh[04.2003 - 07.2005] NCP61 |
57671-52080 |
US $47.61 |
||
|
58038B
|
58038B
57672-52080 Reinforce, Center Pillar To Floor, Lh[04.2003 - 07.2005] NCP61 |
57672-52080 |
US $47.61 |
||
|
58103C
|
58103C
58103-52011 Reinforcement Sub-Assy, Front Floor, Front[04.2003 - 07.2005] NCP61 |
58103-52011 |
US $100.46 |
||
| replacement | |||||
|
58103C
|
58103C
58103-52013 Reinforcement Sub-Assy, Front Floor, Front[04.2003 - 07.2005] NCP61 |
58103-52013 |
US $84.45 |
||
|
58103C
|
58103C
58103-52013 Reinforcement Sub-Assy, Front Floor, Front[06.2006 -] NCP61 |
58103-52013 |
US $84.45 |
||
|
58111
|
58111
58111-52906 Pan, Front Floor[04.2003 - 07.2005] NCP61 |
58111-52906 |
US $349.44 |
||
|
58136
|
58136
58136-52010 Cover, Front Floor Hole[04.2003 - 07.2005] NCP61 |
58136-52010 |
US $5.10 |
||
|
58161B
|
58161B
58161-52010 Reinforcement, Belt Anchor To Floor Pan[04.2003 - 07.2005] NCP61 |
58161-52010 |
US $77.17 |
||
|
58179C
|
58179C
58179-52020 Bracket, Clamp Floor[04.2003 - 07.2005] NCP61 |
58179-52020 |
US $10.48 |
||
|
58208
|
58208
58211-52130 Pan, Center FloorCENTER FLOOR [04.2003 - 07.2005] NCP61 |
58211-52130 |
US $187.82 |
||
|
58251B
|
58251B
58251-52010 Brace, Floor Panel, Front[04.2003 - 07.2005] NCP61 |
58251-52010 |
US $12.38 |
||
|
58273C
|
58273C
58273-52090 Reinforcement, Belt Anchor To Center FloorBELT ANCHOR TO CENTER FLOOR [04.2003 - 07.2005] NCP61 |
58273-52090 |
US $21.69 |
||
|
58274
|
58274
58274-52050 Reinforcement, Belt Anchor To Center Floor, No.1BELT ANCHOR TO CENTER FLOOR, NO.1 [04.2003 - 07.2005] NCP61 |
58274-52050 |
US $24.75 |
||
|
58305
|
58305
58351-52030 Bracket Sub-Assy, Spare Wheel Clamp[04.2003 - 07.2005] NCP61 |
58351-52030 |
US $7.28 |
||
|
58307
|
58307
58307-52302 Panel Sub-Assy, Body Lower Back[04.2003 - 08.2004] NCP61 |
58307-52302 |
US $311.58 |
||
| replacement | |||||
|
58307
|
58307
58307-52303 Panel Sub-Assy, Body Lower Back[04.2003 - 08.2004] NCP61 |
58307-52303 |
US $404.47 |
||
|
58307
|
58307
58307-52303 Panel Sub-Assy, Body Lower Back[09.2006 - 12.2006] NCP61 |
58307-52303 |
US $404.47 |
||
|
58307
|
58307
58307-52390 Panel Sub-Assy, Body Lower Back[08.2004 - 10.2004] NCP61 |
58307-52390 |
US $311.58 |
||
| replacement | |||||
|
58307
|
58307
58307-52391
Panel Sub-Assy, Body Lower Back
[08.2004 - 10.2004] NCP61 |
58307-52391 |
— | ||
|
58311
|
58311
58311-52902 Pan, Rear Floor[04.2003 - 07.2005] NCP61 |
58311-52902 |
US $314.50 |
||
|
58315D
|
58315D
58315-52140 Extension, Rear Floor Pan, RhREAR FLOOR PAN, RH [04.2003 - 07.2005] NCP61 |
58315-52140 |
US $48.34 |
||
|
58316D
|
58316D
58316-52140 Extension, Rear Floor Pan, LhREAR FLOOR PAN, LH [04.2003 - 07.2005] NCP61 |
58316-52140 |
US $48.34 |
||
|
58325E
|
58325E
58325-52010 Cover, Rear Floor Service Hole[04.2003 - 07.2005] NCP61 |
58325-52010 |
US $18.91 |
||
|
58331F
|
58331F
58331-10010 Bracket, Rear Floor Heat Insulator, No.3[04.2003 - 07.2005] NCP61 |
58331-10010 |
US $4 |
||
|
58339D
|
58339D
58339-52060 Bracket, Jack UpJACK UP [04.2003 - 07.2005] NCP61 |
58339-52060 |
US $28.54 |
||
|
58367B
|
58367B
58367-52010 Bracket, Fuel TubeFUEL TUBE [04.2003 - 07.2005] NCP61 |
58367-52010 |
US $18.05 |
||
|
58371B
|
58371B
58377-52020 Panel, Body Lower Back, Outer[04.2003 - 10.2004] NCP61 |
58377-52020 |
US $24.17 |
||
|
58376C
|
58376C
58376-52040 Bracket, Lower Back Panel Weight[04.2003 - 10.2004] NCP61 |
58376-52040 |
US $15.29 |
||
|
71316
|
71316
71316-52070 Bracket, Rear Seat SupportREAR SEAT SUPPORT [04.2003 - 07.2005] NCP61 |
71316-52070 |
US $17.33 |
||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.07 |
||
|
9011908A93
|
9011908A93
90119-08A93 New Genuine Part |
90119-08A93 |
US $1.89 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
|
5523452010
|
5523452010
55234-52010 Sheet, Dash Panel Insulator, No.2 |
55234-52010 |
US $4.08 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
