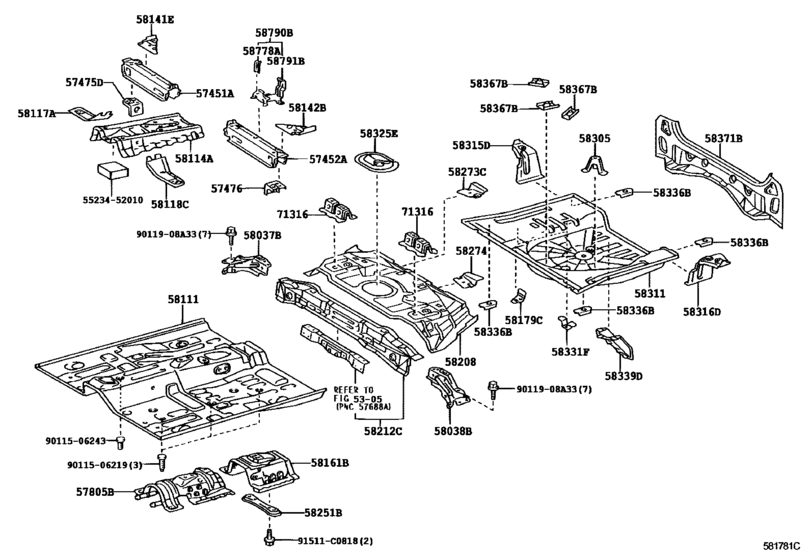

Floor Pan & Lower Back Panel ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57451A
|
57451A
57451-52070 Member, Front Floor Cross, Rh[04.2003 -] NCP31 |
57451-52070 |
US $54.45 |
||
|
57452A
|
57452A
57452-52081 Member, Front Floor Cross, Lh[04.2003 -] NCP31 |
57452-52081 |
US $54.02 |
||
|
57475D
|
57475D
57475-52010 Plate, Front Floor Crossmember, Rh[04.2003 -] NCP31 |
57475-52010 |
US $19.66 |
||
|
57476
|
57476
57476-52010 Plate, Front Floor Crossmember, Lh[04.2003 -] NCP31 |
57476-52010 |
US $19.51 |
||
|
57805B
|
57805B
57805-52120 Reinforcement Sub-Assy, Belt Anchor, Rh[04.2003 -] NCP31 |
57805-52120 |
US $145.60 |
||
|
58037B
|
58037B
57671-52080 Reinforce, Center Pillar To Floor, Rh[04.2003 -] NCP31 |
57671-52080 |
US $47.61 |
||
|
58038B
|
58038B
57672-52080 Reinforce, Center Pillar To Floor, Lh[04.2003 -] NCP31 |
57672-52080 |
US $47.61 |
||
|
58111
|
58111
58111-52908 Pan, Front FloorFRONT FLOOR [04.2003 - 08.2003] NCP31 |
58111-52908 |
US $559.10 |
||
| replacement | |||||
|
58111
|
58111
58111-52916 Pan, Front FloorFRONT FLOOR [04.2003 - 08.2003] NCP31 |
58111-52916 |
US $559.10 |
||
|
58111
|
58111
58111-52916 Pan, Front FloorFRONT FLOOR [08.2003 -] NCP31 |
58111-52916 |
US $559.10 |
||
|
58114A
|
58114A
58103-52011 Reinforcement Sub-Assy, Front Floor, Front[04.2003 - 05.2006] NCP31 |
58103-52011 |
US $100.46 |
||
| replacement | |||||
|
58114A
|
58114A
58103-52013 Reinforcement Sub-Assy, Front Floor, Front[04.2003 - 05.2006] NCP31 |
58103-52013 |
US $84.45 |
||
|
58114A
|
58114A
58103-52013 Reinforcement Sub-Assy, Front Floor, Front[06.2006 -] NCP31 |
58103-52013 |
US $84.45 |
||
|
58117A
|
58117A
58117-52040 Reinforcement, Front Floor Side, Rh[04.2003 -] NCP31 |
58117-52040 |
US $19.66 |
||
|
58118C
|
58118C
58118-52030 Reinforcement, Front Floor Side, Lh[04.2003 -] NCP31 |
58118-52030 |
US $19.66 |
||
|
58141E
|
58141E
58141-52010 Reinforcement, Front Side Member To Floor Pan, Rh[04.2003 -] NCP31 |
58141-52010 |
US $7.43 |
||
|
58142B
|
58142B
58142-52010 Reinforcemnt, Front Side Member To Floor Pan, Lh[04.2003 -] NCP31 |
58142-52010 |
US $7.43 |
||
|
58161B
|
58161B
58161-52030 Reinforcement, Belt Anchor To Floor Pan[04.2003 -] NCP31 |
58161-52030 |
US $120.85 |
||
|
58179C
|
58179C
58179-52020 Bracket, Clamp Floor[04.2003 -] NCP31 |
58179-52020 |
US $10.48 |
||
|
58208
|
58208
58211-52130 Pan, Center FloorCENTER FLOOR [04.2003 -] NCP31 |
58211-52130 |
US $187.82 |
||
|
58212C
|
58212C
58202-52030
Member, Rear Floor Cross, Front
[04.2003 -] NCP31 |
58202-52030 |
— | ||
|
58251B
|
58251B
58251-52010 Brace, Floor Panel, Front[04.2003 -] NCP31 |
58251-52010 |
US $12.38 |
||
|
58273C
|
58273C
58273-52090 Reinforcement, Belt Anchor To Center FloorBELT ANCHOR TO CENTER FLOOR [04.2003 -] NCP31 |
58273-52090 |
US $21.69 |
||
|
58274
|
58274
58274-52050 Reinforcement, Belt Anchor To Center Floor, No.1BELT ANCHOR TO CENTER FLOOR, NO.1 [04.2003 -] NCP31 |
58274-52050 |
US $24.75 |
||
|
58305
|
58305
58351-52080 Bracket Sub-Assy, Spare Wheel ClampSPARE WHEEL CLAMP [04.2003 -] NCP31 |
58351-52080 |
US $11.65 |
||
|
58311
|
58311
58311-52908
Pan, Rear Floor
[04.2003 -] NCP31 |
58311-52908 |
— | ||
|
58315D
|
58315D
58315-52120
Extension, Rear Floor Pan, Rh
[04.2003 -] NCP31 |
58315-52120 |
— | ||
|
58316D
|
58316D
58316-52120
Extension, Rear Floor Pan, Lh
[04.2003 -] NCP31 |
58316-52120 |
— | ||
|
58325E
|
58325E
58325-52010 Cover, Rear Floor Service Hole[04.2003 -] NCP31 |
58325-52010 |
US $18.91 |
||
|
58331F
|
58331F
58331-10010 Bracket, Rear Floor Heat Insulator, No.3[04.2003 -] NCP31 |
58331-10010 |
US $4 |
||
|
58336B
|
58336B
58336-12060 Reinforcement, Rear Floor Pan[04.2003 -] NCP31 |
58336-12060 |
US $4.08 |
||
|
58339D
|
58339D
58339-52040 Bracket, Jack UpJACK UP [04.2003 -] NCP31 |
58339-52040 |
US $28.54 |
||
|
58367B
|
58367B
58367-52010 Bracket, Fuel TubeFUEL TUBE [04.2003 -] NCP31 |
58367-52010 |
US $18.05 |
||
|
58371B
|
58371B
58371-52140 Panel, Body Lower Back, Outer[04.2003 - 12.2006] NCP31 |
58371-52140 |
US $229.98 |
||
|
58778A
|
58778A
58778-52010 Bracket, Jack Holder, No.1[04.2003 -] NCP31 |
58778-52010 |
US $3.20 |
||
|
58790B
|
58790B
58790-52050 Carrier Assy, Jack[04.2003 - 08.2003] NCP31 |
58790-52050 |
US $19.36 |
||
| replacement | |||||
|
58790B
|
58790B
58790-52051 Carrier Assy, Jack[04.2003 - 08.2003] NCP31 |
58790-52051 |
US $19.51 |
||
|
58790B
|
58790B
58790-52051 Carrier Assy, Jack[08.2003 -] NCP31 |
58790-52051 |
US $19.51 |
||
|
58791B
|
58791B
58791-52020 Carrier, Jack[04.2003 - 08.2003] NCP31 |
58791-52020 |
US $19.36 |
||
| replacement | |||||
|
58791B
|
58791B
58791-52021 Carrier, Jack[04.2003 - 08.2003] NCP31 |
58791-52021 |
US $16.02 |
||
|
58791B
|
58791B
58791-52021 Carrier, Jack[08.2003 -] NCP31 |
58791-52021 |
US $16.02 |
||
|
71316
|
71316
71316-52070 Bracket, Rear Seat SupportREAR SEAT SUPPORT [04.2003 -] NCP31 |
71316-52070 |
US $17.33 |
||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.07 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.86 |
||
|
5523452010
|
5523452010
55234-52010 Sheet, Dash Panel Insulator, No.2 |
55234-52010 |
US $4.08 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
