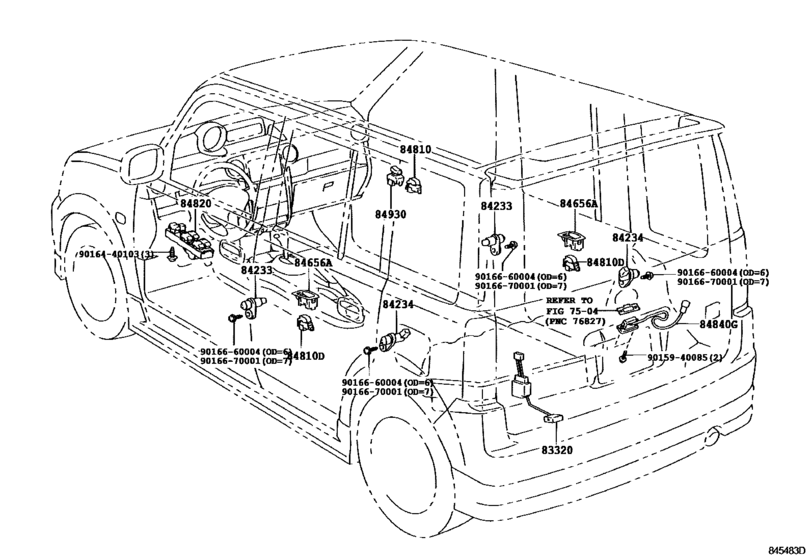

Switch & Relay & Computer ([04.2003 - ] DOOR,ROOF,FLOOR & LUGGAGE (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-52070 Gage Assy, Fuel SenderFUEL SENDER [04.2003 - 12.2006] NCP31 |
83320-52070 |
US $58.39 |
||
|
84233
|
84233
84231-52010 Switch Assy, Courtesy Lamp (For Front Door)[04.2003 -] NCP31 |
84231-52010 |
from US $10.56 |
||
|
84234
|
84234
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[04.2003 -] NCP31 |
84231-52020 |
from US $10.56 |
||
|
84656A
|
84656A
84656-52050 Bezel, SwitchSWITCH [04.2003 -] NCP31 |
84656-52050 |
US $14.71 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[04.2003 -] NCP31 |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[04.2003 -] NCP31 |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-33170
Master Switch Assy, Power Window Regulator
[04.2003 - 08.2004] NCP31 |
84820-33170 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-33230 Master Switch Assy, Power Window Regulator[04.2003 - 08.2004] NCP31 |
84820-33230 |
US $330.95 |
||
|
84820
|
84820
84820-33230 Master Switch Assy, Power Window Regulator[09.2004 -] NCP31 |
84820-33230 |
US $330.95 |
||
|
84840G
|
84840G
84840-52010 Switch Assy, Back Door Opener[04.2003 - 12.2006] NCP31 |
84840-52010 |
US $44.19 |
||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [04.2003 - 08.2004] NCP31 |
84930-33080 |
US $53.87 |
||
|
84930
|
84930
84930-33100 Switch Assy, Door ControlDOOR CONTROL [09.2004 -] NCP31 |
84930-33100 |
US $41.35 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016660004
|
9016660004
90166-60004 New Genuine Part |
90166-60004 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
