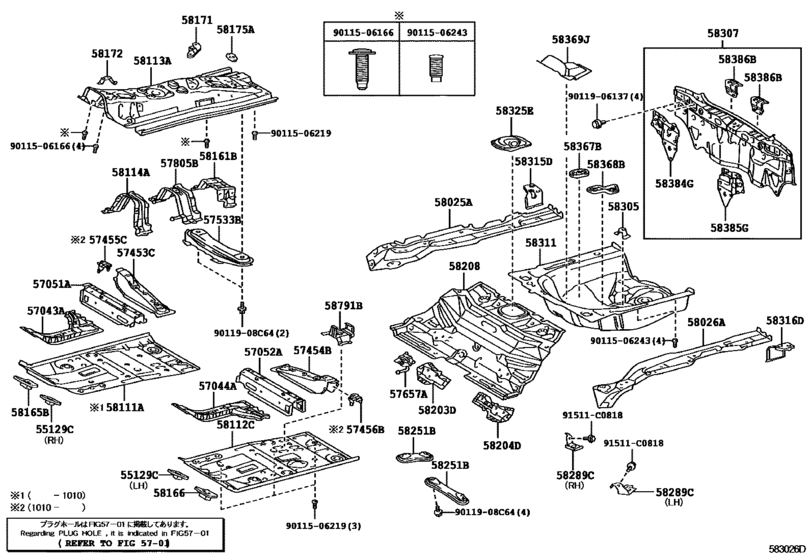

Floor Pan & Lower Back Panel ([06.2007 - ] (0706- )) Diagram Toyota SCION XD
- Year
- 2007 - 2014
- Sales region
- U.S.A.
- Frame
- ZSP110
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.2007
- To
- 07.2014
- Gear Shift Type
- 4FC
- Vehicle Model
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-52050 Cover, Dash Panel Hole[06.2007 - 11.2009] ZSP110 RH |
55129-52050 |
US $13.98 |
||
| replacement | |||||
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [06.2007 - 11.2009] ZSP110 RH |
55129-52051 |
US $10.48 |
||
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [12.2009 - 07.2014] ZSP110 RH |
55129-52051 |
US $10.48 |
||
|
55129C
|
55129C
55139-52020 Cover, Dash Panel Hole[06.2007 - 11.2009] ZSP110 LH |
55139-52020 |
US $13.98 |
||
| replacement | |||||
|
55129C
|
55129C
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [06.2007 - 11.2009] ZSP110 LH |
55139-52021 |
US $10.48 |
||
|
55129C
|
55129C
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [12.2009 - 07.2014] ZSP110 LH |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52020 Reinforcement Sub-Assy, Front Side Member, Rear Rh[06.2007 - 08.2010] ZSP110 |
57043-52020 |
US $78.62 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[06.2007 - 08.2010] ZSP110 |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52021 Reinforcement Sub-Assy, Front Side Member, Rear Rh[09.2010 - 05.2013] ZSP110 |
57043-52021 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[09.2010 - 05.2013] ZSP110 |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 07.2014] ZSP110 |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 07.2014] ZSP110 |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52040 Reinforcement Sub-Assy, Front Side Member, Rear Lh[06.2007 - 08.2010] ZSP110 |
57044-52040 |
US $78.62 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[06.2007 - 08.2010] ZSP110 |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52041 Reinforcement Sub-Assy, Front Side Member, Rear Lh[09.2010 - 05.2013] ZSP110 |
57044-52041 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[09.2010 - 05.2013] ZSP110 |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52042 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 07.2014] ZSP110 |
57044-52042 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 07.2014] ZSP110 |
57044-52043 |
US $59.55 |
||
|
57051A
|
57051A
57051-52010 Member Sub-Assy, Front Floor Cross, Rh[06.2007 - 07.2014] ZSP110 |
57051-52010 |
US $91.73 |
||
|
57052A
|
57052A
57052-52010 Member Sub-Assy, Front Floor Cross, Lh[06.2007 - 07.2014] ZSP110 |
57052-52010 |
US $91.73 |
||
|
57453C
|
57453C
57453-52020 Member, Front Floor Cross Side, Rh[06.2007 - 10.2010] ZSP110 |
57453-52020 |
US $72.36 |
||
| replacements | |||||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[06.2007 - 10.2010] ZSP110 |
57453-52022 |
US $54.75 |
||
|
57453C
|
57453C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[06.2007 - 10.2010] ZSP110 |
57455-52040 |
US $7.43 |
||
|
57453C
|
57453C
57453-52021 Member, Front Floor Cross Side, Rh[10.2010 - 05.2013] ZSP110 |
57453-52021 |
US $60.28 |
||
| replacement | |||||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[10.2010 - 05.2013] ZSP110 |
57453-52022 |
US $54.75 |
||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[05.2013 - 07.2014] ZSP110 |
57453-52022 |
US $54.75 |
||
|
57454B
|
57454B
57454-52010 Member, Front Floor Cross Side, Lh[06.2007 - 10.2010] ZSP110 |
57454-52010 |
US $72.36 |
||
| replacements | |||||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[06.2007 - 10.2010] ZSP110 |
57454-52012 |
US $54.75 |
||
|
57454B
|
57454B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[06.2007 - 10.2010] ZSP110 |
57456-52040 |
US $7.43 |
||
|
57454B
|
57454B
57454-52011 Member, Front Floor Cross Side, Lh[10.2010 - 05.2013] ZSP110 |
57454-52011 |
US $60.28 |
||
| replacement | |||||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[10.2010 - 05.2013] ZSP110 |
57454-52012 |
US $54.75 |
||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[05.2013 - 07.2014] ZSP110 |
57454-52012 |
US $54.75 |
||
|
57455C
|
57455C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[10.2010 - 07.2014] ZSP110 |
57455-52040 |
US $7.43 |
||
|
57456B
|
57456B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[10.2010 - 07.2014] ZSP110 |
57456-52040 |
US $7.43 |
||
|
57533B
|
57533B
57501-52020
Brace, Front Floor, Center
[06.2007 - 07.2014] ZSP110 |
57501-52020 |
— | ||
|
57657A
|
57657A
51904-52010 Hanger Sub-Assy, Exhaust Pipe, No.4[06.2007 - 07.2014] ZSP110 |
51904-52010 |
US $12.38 |
||
|
57805B
|
57805B
57805-52130 Bracket, Exhaust Pipe Mounting, No.1[06.2007 - 09.2010] ZSP110 |
57805-52130 |
US $74.26 |
||
| replacement | |||||
|
57805B
|
57805B
57805-52131 Reinforcement Sub-Assy, Belt Anchor, Rh[06.2007 - 09.2010] ZSP110 |
57805-52131 |
US $55.47 |
||
|
57805B
|
57805B
57805-52131 Reinforcement Sub-Assy, Belt Anchor, Rh[10.2010 - 07.2014] ZSP110 |
57805-52131 |
US $55.47 |
||
|
58025A
|
58025A
58025-52010 Panel Sub-Assy, Floor Side Rail, Fr Rh[06.2007 - 07.2014] ZSP110 |
58025-52010 |
US $121.36 |
||
|
58026A
|
58026A
58026-52010 Panel Sub-Assy, Floor Side Rail, Fr Lh[06.2007 - 07.2014] ZSP110 |
58026-52010 |
US $121.36 |
||
|
58111A
|
58111A
58111-52160
Pan, Front Floor, Rh
[06.2007 - 10.2010] ZSP110 |
58111-52160 |
— | ||
| replacement | |||||
|
58111A
|
58111A
58111-52271 Pan, Front Floor, Rh[06.2007 - 10.2010] ZSP110 |
58111-52271 |
US $175.46 |
||
|
58112C
|
58112C
58112-52901
Pan, Front Floor, Lh
[06.2007 - 07.2013] ZSP110 |
58112-52901 |
— | ||
| replacement | |||||
|
58112C
|
58112C
58112-52922 Pan, Front Floor, Lh[06.2007 - 07.2013] ZSP110 |
58112-52922 |
US $175.46 |
||
|
58112C
|
58112C
58112-52918
Pan, Front Floor, Lh
[08.2013 - 07.2014] ZSP110 |
58112-52918 |
— | ||
| replacement | |||||
|
58112C
|
58112C
58112-52922 Pan, Front Floor, Lh[08.2013 - 07.2014] ZSP110 |
58112-52922 |
US $175.46 |
||
|
58113A
|
58113A
58113-52901 Panel, Front Floor, Center[06.2007 - 10.2010] ZSP110 |
58113-52901 |
US $419.33 |
||
| replacement | |||||
|
58113A
|
58113A
58113-52927 Panel, Front Floor, Center[06.2007 - 10.2010] ZSP110 |
58113-52927 |
US $315.95 |
||
|
58113A
|
58113A
58113-52917 Panel, Front Floor, Center[10.2010 - 05.2013] ZSP110 |
58113-52917 |
US $347.98 |
||
| replacement | |||||
|
58113A
|
58113A
58113-52927 Panel, Front Floor, Center[10.2010 - 05.2013] ZSP110 |
58113-52927 |
US $315.95 |
||
|
58113A
|
58113A
58113-52927 Panel, Front Floor, Center[05.2013 - 07.2014] ZSP110 |
58113-52927 |
US $315.95 |
||
|
58114A
|
58114A
58114-52070 Reinforcement, Front Floor Panel[06.2007 - 09.2010] ZSP110 |
58114-52070 |
US $48.78 |
||
| replacement | |||||
|
58114A
|
58114A
58114-52071 Reinforcement, Front Floor Panel[06.2007 - 09.2010] ZSP110 |
58114-52071 |
US $36.84 |
||
|
58114A
|
58114A
58114-52071 Reinforcement, Front Floor Panel[10.2010 - 07.2014] ZSP110 |
58114-52071 |
US $36.84 |
||
|
58161B
|
58161B
58161-52070 Reinforcement, Belt Anchor To Floor Pan[10.2010 - 07.2014] ZSP110 |
58161-52070 |
US $46.45 |
||
|
58161B
|
58161B
58161-52090 Reinforcement, Belt Anchor To Floor Pan[06.2007 - 09.2010] ZSP110 |
58161-52090 |
US $74.26 |
||
| replacement | |||||
|
58161B
|
58161B
58161-52070 Reinforcement, Belt Anchor To Floor Pan[06.2007 - 09.2010] ZSP110 |
58161-52070 |
US $46.45 |
||
|
58165B
|
58165B
58165-52010 Cover, Front Floor, Rh[06.2007 - 11.2009] ZSP110 |
58165-52010 |
US $19.80 |
||
| replacement | |||||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [06.2007 - 11.2009] ZSP110 |
58165-52011 |
US $13.22 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [12.2009 - 07.2014] ZSP110 |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52010 Cover, Front Floor, Lh[06.2007 - 11.2009] ZSP110 |
58166-52010 |
US $19.80 |
||
| replacement | |||||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [06.2007 - 11.2009] ZSP110 |
58166-52011 |
US $14.50 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [12.2009 - 07.2014] ZSP110 |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52090 Reinforcement, Parking Brake Base[06.2007 - 07.2014] ZSP110 |
58171-52090 |
US $11.21 |
||
|
58172
|
58172
58172-52020 Bracket, Computer Mounting, No.3[06.2007 - 07.2014] ZSP110 |
58172-52020 |
US $6.70 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[06.2007 - 07.2014] ZSP110 |
58175-52020 |
US $2.91 |
||
|
58203D
|
58203D
58203-52060 Bracket Sub-Assy, Rear Seat Hinge, Outer Rh[06.2007 - 07.2014] ZSP110 |
58203-52060 |
US $61.15 |
||
|
58204D
|
58204D
58204-52060 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[06.2007 - 08.2010] ZSP110 |
58204-52060 |
US $91.73 |
||
| replacement | |||||
|
58204D
|
58204D
58204-52061 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[06.2007 - 08.2010] ZSP110 |
58204-52061 |
US $75.71 |
||
|
58204D
|
58204D
58204-52061 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[09.2010 - 07.2014] ZSP110 |
58204-52061 |
US $75.71 |
||
|
58208
|
58208
58211-52160 Pan, Center FloorCENTER FLOOR [06.2007 - 07.2014] ZSP110 |
58211-52160 |
US $218.40 |
||
|
58251B
|
58251B
58251-52020 Brace, Floor Panel, Front[06.2007 - 07.2014] ZSP110 |
58251-52020 |
US $14.88 |
||
|
58289C
|
58289C
58289-52030 Bracket, Floor Brake Hose, Rear[06.2007 - 09.2010] ZSP110 RH |
58289-52030 |
US $9.17 |
||
| replacement | |||||
|
58289C
|
58289C
58289-52080 Bracket, Floor Brake Hose, Rear[06.2007 - 09.2010] ZSP110 RH |
58289-52080 |
US $8.30 |
||
|
58289C
|
58289C
58289-52080 Bracket, Floor Brake Hose, Rear[10.2010 - 07.2014] ZSP110 RH |
58289-52080 |
US $8.30 |
||
|
58289C
|
58289C
58299-52060 Bracket, Floor Brake Hose, Rear[06.2007 - 09.2010] ZSP110 LH |
58299-52060 |
US $9.17 |
||
| replacement | |||||
|
58289C
|
58289C
58299-52100 Bracket, Floor Brake Hose, Rear[06.2007 - 09.2010] ZSP110 LH |
58299-52100 |
US $8.74 |
||
|
58289C
|
58289C
58299-52100 Bracket, Floor Brake Hose, Rear[10.2010 - 07.2014] ZSP110 LH |
58299-52100 |
US $8.74 |
||
|
58305
|
58305
58351-52070 Bracket Sub-Assy, Spare Wheel Clamp[06.2007 - 07.2014] ZSP110 |
58351-52070 |
US $8.80 |
||
|
58307
|
58307
58307-52510 Panel Sub-Assy, Body Lower Back[06.2007 - 07.2014] ZSP110 |
58307-52510 |
US $333.89 |
||
|
58311
|
58311
58311-52140
Pan, Rear Floor
[06.2007 - 07.2014] ZSP110 |
58311-52140 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-52141
Pan, Rear Floor
[06.2007 - 07.2014] ZSP110 |
58311-52141 |
— | ||
|
58315D
|
58315D
58315-52160 Extension, Rear Floor Side Panel, Rh[06.2007 - 07.2014] ZSP110 |
58315-52160 |
US $29.94 |
||
|
58316D
|
58316D
58316-52180 Extension, Rear Floor Side Panel, Lh[06.2007 - 07.2014] ZSP110 |
58316-52180 |
US $29.94 |
||
|
58325E
|
58325E
58325-52050 Cover, Rear Floor Service Hole[06.2007 - 07.2014] ZSP110 |
58325-52050 |
US $19.51 |
||
|
58367B
|
58367B
58367-52040 Bracket, Fuel TubeFUEL TUBE [06.2007 - 07.2014] ZSP110 |
58367-52040 |
US $6.84 |
||
|
58368B
|
58368B
58368-52020 Bracket, Fuel Tube, No.2FUEL TUBE, NO.2 [06.2007 - 11.2011] ZSP110 |
58368-52020 |
US $14.85 |
||
|
58368B
|
58368B
58368-52021
Bracket, Fuel Tube, No.2
[12.2011 - 07.2014] ZSP110 |
58368-52021 |
— | ||
|
58369J
|
58369J
58369-52010 Bracket, Rear Floor BraceREAR FLOOR BRACE [06.2007 - 07.2014] ZSP110 |
58369-52010 |
US $33.49 |
||
|
58384G
|
58384G
58384-52120 Gusset, Lower Back, Upper Rh[06.2007 - 07.2014] ZSP110 |
58384-52120 |
US $56.35 |
||
|
58385G
|
58385G
58385-52090 Gusset, Lower Back, Upper Lh[06.2007 - 07.2014] ZSP110 |
58385-52090 |
US $56.35 |
||
|
58386B
|
58386B
58386-12020 Bracket, Rear Bumper Cover, No.1[06.2007 - 07.2014] ZSP110 |
58386-12020 |
US $7.20 |
||
|
58791B
|
58791B
58791-52060 Carrier, Jack[06.2007 - 07.2014] ZSP110 |
58791-52060 |
US $17.62 |
||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.07 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.72 |
||
