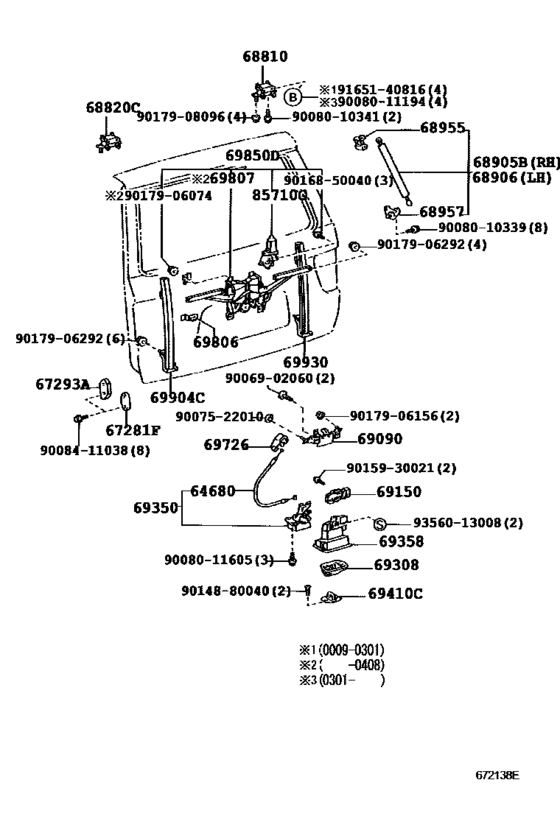

Back Door Lock & Hinge ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64680
|
64680
64680-0C010 Cable Assy, Back Door Lock ControlBACK DOOR LOCK CONTROL [08.2004 -] UCK35,45 |
64680-0C010 |
from US $29.18 |
||
|
67281F
|
67281F
67281-45010 Stopper, Back Door, LowerBACK DOOR, LOWER [08.2004 - 10.2004] UCK35,45 RH |
67281-45010 |
US $21.69 |
||
|
67281F
|
67281F
67281-AE010
Stopper, Back Door, Lower
[10.2004 -] UCK35,45 RH,(L) |
67281-AE010 |
— | ||
|
67281F
|
67281F
67282-45010
Stopper, Back Door, Lower
[08.2004 - 10.2004] UCK35,45 LH |
67282-45010 |
— | ||
|
67281F
|
67281F
67282-AE010
Stopper, Back Door, Lower
[10.2004 -] UCK35,45 LH,(L) |
67282-AE010 |
— | ||
|
67293A
|
67293A
67293-45010 Cushion, Back Door Lower StopperBACK DOOR STOPPER [08.2004 -] UCK35,45 RH |
67293-45010 |
US $10.05 |
||
|
67293A
|
67293A
67294-45010 Cushion, Back Door Lower StopperBACK DOOR STOPPER [08.2004 -] UCK35,45 LH |
67294-45010 |
US $10.05 |
||
|
68810
|
68810
68810-08010
Hinge Assy, Back Door, Upper
[08.2004 -] UCK35,45 |
68810-08010 |
— | ||
|
68820C
|
68820C
68820-08010
Hinge Assy, Back Door, Lh
[08.2004 -] UCK35,45 |
68820-08010 |
— | ||
|
68905B
|
68905B
68905-09020
Stay Sub-Assy, Back Door, Rh
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68905-09020 |
— | ||
| replacements | |||||
|
68905B
|
68905B
68905-0C041 Stay Sub-Assy, Back Door, Rh[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68905-0C041 |
US $199.47 |
||
|
68905B
|
68905B
68955-0C010
Bracket, Back Door Stay
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68955-0C010 |
— | ||
|
68905B
|
68905B
68957-0C010
Bracket, Back Door Stay
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68957-0C010 |
— | ||
|
68905B
|
68905B
68905-0C040
Stay Sub-Assy, Back Door, Rh
[06.2006 - 05.2007] UCK35,45 COLD SPEC |
68905-0C040 |
— | ||
| replacement | |||||
|
68905B
|
68905B
68905-0C041 Stay Sub-Assy, Back Door, Rh[06.2006 - 05.2007] UCK35,45 COLD SPEC |
68905-0C041 |
US $199.47 |
||
|
68905B
|
68905B
68905-0C041 Stay Sub-Assy, Back Door, Rh[05.2007 - 11.2007] UCK35,45 COLD SPEC |
68905-0C041 |
US $199.47 |
||
|
68906
|
68906
68905-09025
Stay Sub-Assy, Back Door, Lh
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68905-09025 |
— | ||
| replacements | |||||
|
68906
|
68906
68905-0C041 Stay Sub-Assy, Back Door, Rh[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68905-0C041 |
US $199.47 |
||
|
68906
|
68906
68955-0C010
Bracket, Back Door Stay
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68955-0C010 |
— | ||
|
68906
|
68906
68957-0C020
Bracket, Back Door Stay
[08.2004 - 06.2006] UCK35,45 COLD SPEC |
68957-0C020 |
— | ||
|
68906
|
68906
68905-0C040
Stay Sub-Assy, Back Door, Rh
[06.2006 -] UCK35,45 COLD SPEC |
68905-0C040 |
— | ||
| replacement | |||||
|
68906
|
68906
68905-0C041 Stay Sub-Assy, Back Door, Rh[06.2006 -] UCK35,45 COLD SPEC |
68905-0C041 |
US $199.47 |
||
|
68955
|
68955
68955-0C010
Bracket, Back Door Stay
[08.2004 -] UCK35,45 |
68955-0C010 |
— | ||
|
68957
|
68957
68957-0C010
Bracket, Back Door Stay
[08.2004 -] UCK35,45 RH |
68957-0C010 |
— | ||
|
68957
|
68957
68957-0C020
Bracket, Back Door Stay
[08.2004 -] UCK35,45 LH |
68957-0C020 |
— | ||
|
69090
|
69090
69090-08010
Handle Assy, Back Door, Outside
[08.2004 -] UCK35,45 |
69090-08010 |
— | ||
| replacement | |||||
|
69090
|
69090
69090-0C080 Handle Assy, Back Door, Outside[08.2004 -] UCK35,45 |
69090-0C080 |
US $87.32 |
||
|
69150
|
69150
69150-0C010 Actuator Assy, Back Door LockBACK DOOR LOCK [08.2004 -] UCK35,45 |
69150-0C010 |
US $131.04 |
||
|
69308
|
69308
69308-0C010 Protector Sub-Assy, Back Door LockBACK DOOR LOCK [08.2004 -] UCK35,45 |
69308-0C010 |
US $17.91 |
||
|
69350
|
69350
69301-0C010 Lock Assy, Back DoorBACK DOOR [08.2004 -] UCK35,45 |
69301-0C010 |
US $93.24 |
||
|
69358
|
69358
69358-0C010 Protector, Back Door LockBACK DOOR LOCK [08.2004 -] UCK35,45 |
69358-0C010 |
US $46.01 |
||
|
69410C
|
69410C
69410-08020
Striker Assy, Back Door Lock
[08.2004 -] UCK35,45 |
69410-08020 |
— | ||
|
69726
|
69726
69726-0C030 Protector, Back Door Lock ControlBACK DOOR LOCK CONTROL [08.2004 -] UCK35,45 |
69726-0C030 |
US $11.07 |
||
|
69806
|
69806
69806-0C010
Bracket Sub-Assy, Back Door Glass Guide
[08.2004 -] UCK35,45 |
69806-0C010 |
— | ||
|
69850D
|
69850D
69850-0C040
Regulator Assy, Back Door Power Window
[08.2004 - 11.2005] UCK35,45 |
69850-0C040 |
— | ||
| replacement | |||||
|
69850D
|
69850D
69850-0C090 Cover Assy, Tail Gate Hole[08.2004 - 11.2005] UCK35,45 |
69850-0C090 |
US $585.31 |
||
|
69850D
|
69850D
69850-0C041
Regulator Assy, Back Door Power Window
[11.2005 -] UCK35,45 |
69850-0C041 |
— | ||
| replacement | |||||
|
69850D
|
69850D
69850-0C090 Cover Assy, Tail Gate Hole[11.2005 -] UCK35,45 |
69850-0C090 |
US $585.31 |
||
|
69904C
|
69904C
69904-0C010
Rail Sub-Assy, Back Door Glass Guide, Lh
[08.2004 -] UCK35,45 |
69904-0C010 |
— | ||
| replacement | |||||
|
69904C
|
69904C
69904-0C020
Rail Sub-Assy, Back Door Glass Guide, Lh
[08.2004 -] UCK35,45 |
69904-0C020 |
— | ||
|
69930
|
69930
69930-0C010
Rail Assy, Back Door Glass Guide, Rh
[08.2004 -] UCK35,45 |
69930-0C010 |
— | ||
| replacement | |||||
|
69930
|
69930
69930-0C020
Rail Assy, Back Door Glass Guide, Rh
[08.2004 -] UCK35,45 |
69930-0C020 |
— | ||
|
85710G
|
85710G
85710-0C070
Motor Assy, Power Window Regulator, Rh
[08.2004 - 10.2005] UCK35,45 |
85710-0C070 |
— | ||
| replacement | |||||
|
85710G
|
85710G
85710-0C120
Motor Assy, Power Window Regulator, Rh
[08.2004 - 10.2005] UCK35,45 |
85710-0C120 |
— | ||
|
9006902060
|
9006902060
90069-02060
New Genuine Part
|
90069-02060 |
— | ||
|
9007522010
|
9007522010
90075-22010 New Genuine Part |
90075-22010 |
US $1.60 |
||
|
9008010339
|
9008010339
90080-10339
New Genuine Part
|
90080-10339 |
— | ||
|
9008010341
|
9008010341
90080-10341
New Genuine Part
|
90080-10341 |
— | ||
|
9008011194
|
9008011194
90080-11194
New Genuine Part
|
90080-11194 |
— | ||
|
9008011605
|
9008011605
90080-11605 New Genuine Part |
90080-11605 |
US $0.73 |
||
|
9008411038
|
9008411038
90084-11038 BOLT WWASHER |
90084-11038 |
US $1.44 |
||
|
9014880040
|
9014880040
90148-80040 Screw Hex Lobular |
90148-80040 |
US $1.12 |
||
|
9015930021
|
9015930021
90159-30021 New Genuine Part |
90159-30021 |
US $1.60 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.44 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9356013008
|
9356013008
93560-13008 New Genuine Part |
93560-13008 |
US $2.72 |
||
