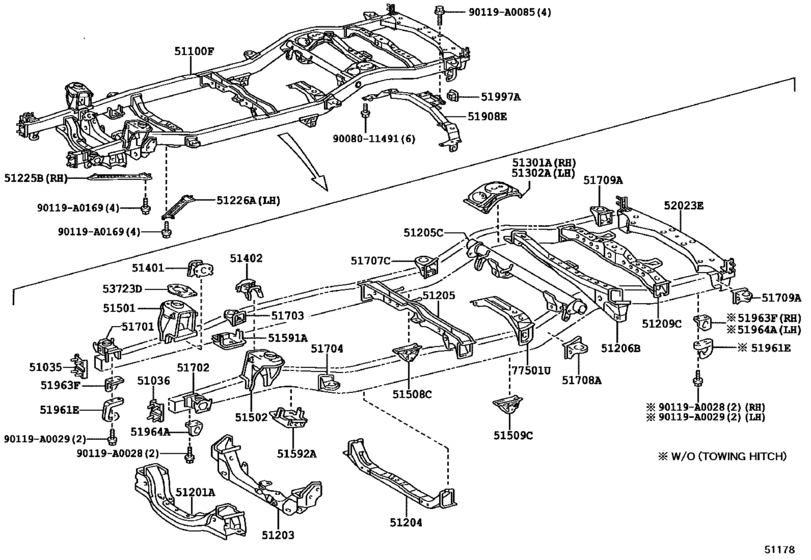

Frame ([08.2004 - ] (0408- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51035
|
51035
51035-0C010
Plate Sub-Assy, Frame Side Rail, Rh
[08.2004 -] UCK35,45 |
51035-0C010 |
— | ||
|
51036
|
51036
51036-0C010
Plate Sub-Assy, Frame Side Rail, Lh
[08.2004 -] UCK35,45 |
51036-0C010 |
— | ||
|
51100F
|
51100F
51001-0C190
Frame Sub-Assy
[08.2004 -] UCK35,45 |
51001-0C190 |
— | ||
|
51100F
|
51100F
51001-0C200
Frame Sub-Assy
[08.2004 -] UCK35,45 W(TOWING HITCH) |
51001-0C200 |
— | ||
|
51201A
|
51201A
51201-0C011
Crossmember Sub-Assy, Frame, Front
[08.2004 -] UCK35,45 |
51201-0C011 |
— | ||
|
51203
|
51203
51202-0C011
Crossmember Sub-Assy, Frame, No.2
[08.2004 -] UCK35,45 |
51202-0C011 |
— | ||
|
51204
|
51204
51230-0C040
Crossmember Sub-Assy, Frame, No.3
[08.2004 -] UCK35,45 |
51230-0C040 |
— | ||
|
51205
|
51205
51204-0C070
Crossmember Sub-Assy, Frame, No.4
[08.2004 -] UCK35,45 |
51204-0C070 |
— | ||
|
51205C
|
51205C
51205-0C040
Crossmember Sub-Assy, Frame, No.5
[08.2004 -] UCK35,45 |
51205-0C040 |
— | ||
|
51206B
|
51206B
51206-0C020
Crossmember Sub-Assy, Frame, No.6
[08.2004 -] UCK35,45 |
51206-0C020 |
— | ||
|
51209C
|
51209C
51209-0C020
Crossmember Sub-Assy, Frame, Rear
[08.2004 -] UCK35,45 |
51209-0C020 |
— | ||
|
51225B
|
51225B
51225-0C010
Bracket, Front Suspension Member, Rh
[08.2004 -] UCK35,45 |
51225-0C010 |
— | ||
|
51226A
|
51226A
51226-0C010
Bracket, Front Suspension Member, Lh
[08.2004 -] UCK35,45 |
51226-0C010 |
— | ||
|
51301A
|
51301A
51301-0C020
Bracket Sub-Assy, Rear Spring, Rear Rh
[08.2004 -] UCK35,45 |
51301-0C020 |
— | ||
|
51302A
|
51302A
51302-0C020
Bracket Sub-Assy, Rear Spring, Rear Lh
[08.2004 -] UCK35,45 |
51302-0C020 |
— | ||
|
51401
|
51401
51401-0C010
Bracket Sub-Assy, Engine Front Mounting, Rh
[08.2004 -] UCK35,45 |
51401-0C010 |
— | ||
|
51402
|
51402
51402-0C010
Bracket Sub-Assy, Engine Front Mounting, Lh
[08.2004 -] UCK35,45 |
51402-0C010 |
— | ||
|
51501
|
51501
51501-34020
Support Sub-Assy, Suspension Arm, Rh
[08.2004 -] UCK35,45 |
51501-34020 |
— | ||
|
51502
|
51502
51502-34020
Support Sub-Assy, Suspension Arm, Lh
[08.2004 -] UCK35,45 |
51502-34020 |
— | ||
|
51508C
|
51508C
51508-0C010
Bracket Sub-Assy, Lower Control Link, Rh
[08.2004 -] UCK35,45 |
51508-0C010 |
— | ||
|
51509C
|
51509C
51509-0C010
Bracket Sub-Assy, Lower Control Link, Lh
[08.2004 -] UCK35,45 |
51509-0C010 |
— | ||
|
51591A
|
51591A
51591-0C020
Support, Stabilizer, Rh
[08.2004 -] UCK35,45 |
51591-0C020 |
— | ||
|
51592A
|
51592A
51592-0C020
Support, Stabilizer, Lh
[08.2004 -] UCK35,45 |
51592-0C020 |
— | ||
|
51701
|
51701
51701-34030 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [08.2004 -] UCK35,45 |
51701-34030 |
US $49.36 |
||
|
51702
|
51702
51701-34030 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [08.2004 -] UCK35,45 |
51701-34030 |
US $49.36 |
||
|
51703
|
51703
51703-34051 Bracket Sub-Assy, Cab Mounting, No.2, Rh[08.2004 -] UCK35,45 |
51703-34051 |
US $51.40 |
||
|
51704
|
51704
51704-34051
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[08.2004 -] UCK35,45 |
51704-34051 |
— | ||
|
51707C
|
51707C
51707-0C010
Bracket Sub-Assy, Cab Mounting, No.4 Rh
[08.2004 -] UCK35,45 |
51707-0C010 |
— | ||
|
51708A
|
51708A
51708-0C010
Bracket Sub-Assy, Cab Mounting, No.4 Lh
[08.2004 -] UCK35,45 |
51708-0C010 |
— | ||
|
51709A
|
51709A
51709-0C010
Bracket Sub-Assy, Body Rear End Mounting
[08.2004 -] UCK35,45 |
51709-0C010 |
— | ||
|
51908E
|
51908E
51908-0C030
Bracket Sub-Assy, Receiver Hitch
[08.2004 -] UCK35,45 |
51908-0C030 |
— | ||
|
51961E
|
51961E
51961-35051 Hook, No.1[08.2004 -] UCK35,45 |
51961-35051 |
US $69.19 |
||
|
51963F
|
51963F
51963-0C010
Hook, Transport, Front Rh
[08.2004 -] UCK35,45 |
51963-0C010 |
— | ||
|
51964A
|
51964A
51964-0C010
Hook, Transport, Front Lh
[08.2004 -] UCK35,45 |
51964-0C010 |
— | ||
|
51997A
|
51997A
51997-0C010
Cap, Receiver Hitch
[08.2004 -] UCK35,45 |
51997-0C010 |
— | ||
|
52023E
|
52023E
52023-0C110
Reinforcement Set, Rear Bumper
[08.2004 -] UCK35,45 |
52023-0C110 |
— | ||
|
53723D
|
53723D
53723-0C010
Reinforcement, Front Spring Support
[08.2004 -] UCK35,45 |
53723-0C010 |
— | ||
|
77501U
|
77501U
77501-0C010
Bracket Sub-Assy, Fuel Tank
[08.2004 -] UCK35,45 |
77501-0C010 |
— | ||
|
90119A0028
|
90119A0028
90119-A0028
New Genuine Part
|
90119-A0028 |
— | ||
|
90119A0029
|
90119A0029
90119-A0029
New Genuine Part
|
90119-A0029 |
— | ||
|
90119A0085
|
90119A0085
90119-A0085
New Genuine Part
|
90119-A0085 |
— | ||
|
90119A0169
|
90119A0169
90119-A0169
New Genuine Part
|
90119-A0169 |
— | ||
|
9008011491
|
9008011491
90080-11491 New Genuine Part |
90080-11491 |
US $4.08 |
