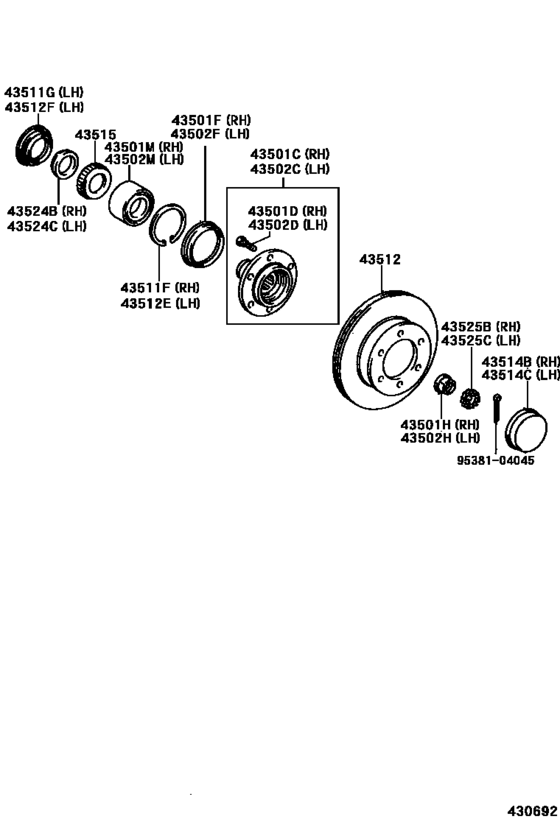

Front Axle Hub ([09.2000 - ] (0009- )UCK45) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-04040
Hub Sub-Assy, Front Axle, Rh
[08.2004 -] UCK45 |
43502-04040 |
— | ||
| replacement | |||||
|
43501C
|
43501C
43502-35170 Hub Sub-Assy, Front Axle, Rh[08.2004 -] UCK45 |
43502-35170 |
from US $170 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[08.2004 -] UCK35,45 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[08.2004 -] UCK35,45 |
90942-02082 |
from US $2.46 |
||
|
43501F
|
43501F
90312-95001 Seal, Oil (For Front Axle Hub Rh)[08.2004 -] UCK35,45 |
90312-95001 |
from US $11.04 |
||
|
43501H
|
43501H
90178-28002 Nut (For Front Axle Shaft Rh)[05.2007 -] UCK45 |
90178-28002 |
from US $2.38 |
||
|
43501H
|
43501H
90179-28007
Nut (For Front Axle Shaft Rh)
[08.2004 - 04.2007] UCK45 |
90179-28007 |
— | ||
| replacement | |||||
|
43501H
|
43501H
90178-28002 Nut (For Front Axle Shaft Rh)[08.2004 - 04.2007] UCK45 |
90178-28002 |
from US $2.38 |
||
|
43501M
|
43501M
90369-54002 Bearing (For Front Axle Hub Inner)[08.2004 -] UCK35,45 |
90369-54002 |
from US $96.80 |
||
|
43502C
|
43502C
43502-04040
Hub Sub-Assy, Front Axle, Rh
[08.2004 -] UCK45 |
43502-04040 |
— | ||
| replacement | |||||
|
43502C
|
43502C
43502-35170 Hub Sub-Assy, Front Axle, Rh[08.2004 -] UCK45 |
43502-35170 |
from US $170 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[08.2004 -] UCK35,45 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[08.2004 -] UCK35,45 |
90942-02082 |
from US $2.46 |
||
|
43502F
|
43502F
90312-95001 Seal, Oil (For Front Axle Hub Rh)[08.2004 -] UCK35,45 |
90312-95001 |
from US $11.04 |
||
|
43502H
|
43502H
90178-28002 Nut (For Front Axle Shaft Rh)[05.2007 -] UCK45 |
90178-28002 |
from US $2.38 |
||
|
43502H
|
43502H
90179-28007
Nut (For Front Axle Shaft Rh)
[08.2004 - 04.2007] UCK45 |
90179-28007 |
— | ||
| replacement | |||||
|
43502H
|
43502H
90178-28002 Nut (For Front Axle Shaft Rh)[08.2004 - 04.2007] UCK45 |
90178-28002 |
from US $2.38 |
||
|
43502M
|
43502M
90369-54002 Bearing (For Front Axle Hub Inner)[08.2004 -] UCK35,45 |
90369-54002 |
from US $96.80 |
||
|
43511F
|
43511F
90521-99114 Ring, Hole Snap (For Front Axle Hub Rh)[08.2004 -] UCK35,45 |
90521-99114 |
US $5.76 |
||
|
43511G
|
43511G
90316-69001 Seal, Oil (For Front Axle Hub Outer Rh)[08.2004 -] UCK45 |
90316-69001 |
from US $24.62 |
||
|
43512
|
43512
43512-0C011 Disc, Front[09.2004 -] UCK35,45 |
43512-0C011 |
US $224.22 |
||
|
43512E
|
43512E
90521-99114 Ring, Hole Snap (For Front Axle Hub Rh)[08.2004 -] UCK35,45 |
90521-99114 |
US $5.76 |
||
|
43512F
|
43512F
90316-69001 Seal, Oil (For Front Axle Hub Outer Rh)[08.2004 -] UCK45 |
90316-69001 |
from US $24.62 |
||
|
43514B
|
43514B
43514-28010 Cap, Front Hub Grease[08.2004 -] UCK45 |
43514-28010 |
from US $13.49 |
||
|
43514C
|
43514C
43514-28010 Cap, Front Hub Grease[08.2004 -] UCK45 |
43514-28010 |
from US $13.49 |
||
|
43515
|
43515
43515-35010 Rotor, Skid Control, Front[08.2004 -] UCK35,45 |
43515-35010 |
US $27.06 |
||
|
43524B
|
43524B
43524-35010 Spacer, Front Wheel Inner Bearing, Rh[08.2004 -] UCK45 |
43524-35010 |
from US $20.14 |
||
|
43524C
|
43524C
43524-35010 Spacer, Front Wheel Inner Bearing, Rh[08.2004 -] UCK45 |
43524-35010 |
from US $20.14 |
||
|
43525B
|
43525B
43525-35010 Cap, Front Wheel Adjusting Lock, Rh[08.2004 -] UCK45 |
43525-35010 |
from US $2.40 |
||
|
43525C
|
43525C
43525-35010 Cap, Front Wheel Adjusting Lock, Rh[08.2004 -] UCK45 |
43525-35010 |
from US $2.40 |
||
|
9538104045
|
9538104045
95381-04045 PINCOTTER |
95381-04045 |
from US $0.70 |
||
