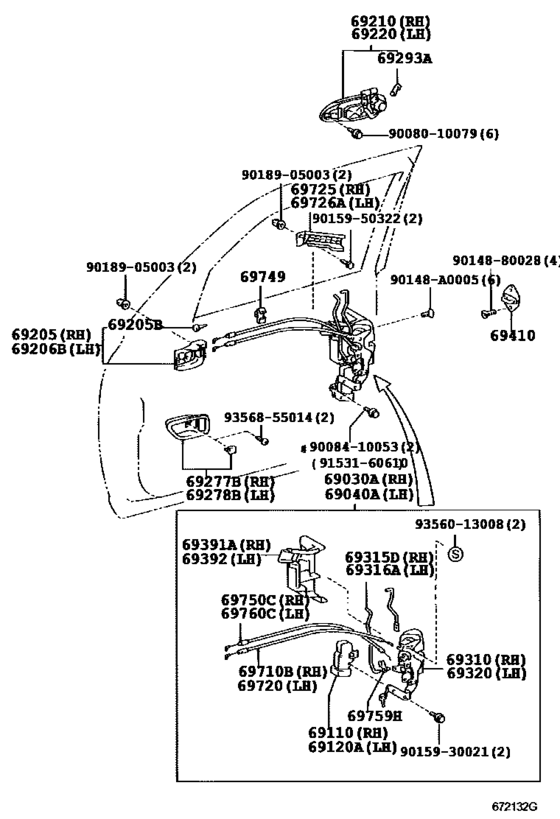

Front Door Lock & Handle ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-0C021
Lock Assy, Front Door W/motor, Rh
[08.2004 -] UCK35,45 |
69030-0C021 |
— | ||
|
69040A
|
69040A
69040-0C020
Lock Assy, Front Door W/motor, Lh
[08.2004 -] UCK35,45 |
69040-0C020 |
— | ||
|
69110
|
69110
69110-06010 Actuator Assy, Front Door Lock, Rh[08.2004 -] UCK35,45 |
69110-06010 |
US $131.04 |
||
|
69120A
|
69120A
69120-06010 Actuator Assy, Front Door Lock, LhFRONT DOOR LOCK, LH [08.2004 -] UCK35,45 |
69120-06010 |
from US $142.69 |
||
|
69205
|
69205
69205-0C030-B0
Handle Sub-Assy, Front Door Inside, Rh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
69205-0C030-B0 |
— | ||
|
69205
|
69205
69205-0C030-E1
Handle Sub-Assy, Front Door Inside, Rh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
69205-0C030-E1 |
— | ||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[08.2004 -] UCK35,45 |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-0C030-B0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
69206-0C030-B0 |
US $74.09 |
||
|
69206B
|
69206B
69206-0C030-E1
Handle Sub-Assy, Front Door Inside, Lh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
69206-0C030-E1 |
— | ||
|
69210
|
69210
69210-34050-A0
Handle Assy, Front Door, Outside Rh
[08.2004 -] UCK35,45 WHITE,056 |
69210-34050-A0 |
— | ||
| replacement | |||||
|
69210
|
69210
69210-34050-A2
Handle Assy, Front Door, Outside Rh
[08.2004 -] UCK35,45 WHITE,056 |
69210-34050-A2 |
— | ||
|
69210
|
69210
69210-34050-A1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45..LIMD WHITE PEARL CS.,071 |
69210-34050-A1 |
US $99.01 |
||
|
69210
|
69210
69210-34050-A2
Handle Assy, Front Door, Outside Rh
[12.2005 -] UCK35,45 SUPER WHITE 2,040 |
69210-34050-A2 |
— | ||
|
69210
|
69210
69210-34050-B1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 SILVER ME.,1D6 |
69210-34050-B1 |
US $99.01 |
||
|
69210
|
69210
69210-34050-B2 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 GRAY M.M.,1E3 |
69210-34050-B2 |
US $99.01 |
||
|
69210
|
69210
69210-34050-C0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 BLACK,202 |
69210-34050-C0 |
US $99.01 |
||
|
69210
|
69210
69210-34050-D1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 DK. RED M.M.,3Q3 |
69210-34050-D1 |
US $99.01 |
||
|
69210
|
69210
69210-34050-E0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 BEIGE M. M.,4Q2 |
69210-34050-E0 |
US $99.01 |
||
|
69210
|
69210
69210-34050-G1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 DK.GREEN M.M.,6T8 |
69210-34050-G1 |
US $99.01 |
||
|
69210
|
69210
69210-34050-J3 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.2004 -] UCK35,45 DK.BLUE MM,8J7 |
69210-34050-J3 |
US $99.01 |
||
|
69220
|
69220
69220-34050-A0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 WHITE,056 |
69220-34050-A0 |
US $99.01 |
||
| replacement | |||||
|
69220
|
69220
69220-34050-A2
Handle Assy, Front Door Outside, Lh
[08.2004 -] UCK35,45 WHITE,056 |
69220-34050-A2 |
— | ||
|
69220
|
69220
69220-34050-A1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45..LIMD WHITE PEARL CS.,071 |
69220-34050-A1 |
US $99.01 |
||
|
69220
|
69220
69220-34050-A2
Handle Assy, Front Door Outside, Lh
[12.2005 -] UCK35,45 SUPER WHITE 2,040 |
69220-34050-A2 |
— | ||
|
69220
|
69220
69220-34050-B1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 SILVER ME.,1D6 |
69220-34050-B1 |
US $99.01 |
||
|
69220
|
69220
69220-34050-B2 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 GRAY M.M.,1E3 |
69220-34050-B2 |
US $99.01 |
||
|
69220
|
69220
69220-34050-C0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 BLACK,202 |
69220-34050-C0 |
US $99.01 |
||
|
69220
|
69220
69220-34050-D1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 DK. RED M.M.,3Q3 |
69220-34050-D1 |
US $99.01 |
||
|
69220
|
69220
69220-34050-E0
Handle Assy, Front Door Outside, Lh
[08.2004 -] UCK35,45 BEIGE M. M.,4Q2 |
69220-34050-E0 |
— | ||
|
69220
|
69220
69220-34050-G1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 DK.GREEN M.M.,6T8 |
69220-34050-G1 |
US $99.01 |
||
|
69220
|
69220
69220-34050-J3 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.2004 -] UCK35,45 DK.BLUE MM,8J7 |
69220-34050-J3 |
US $99.01 |
||
|
69277B
|
69277B
69277-AC010-B1
Bezel, Front Door Inside Handle, Rh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
69277-AC010-B1 |
— | ||
|
69277B
|
69277B
69277-AC010-E0
Bezel, Front Door Inside Handle, Rh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
69277-AC010-E0 |
— | ||
|
69278B
|
69278B
69278-AC010-B1
Bezel, Front Door Inside Handle, Lh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
69278-AC010-B1 |
— | ||
|
69278B
|
69278B
69278-AC010-E0
Bezel, Front Door Inside Handle, Lh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
69278-AC010-E0 |
— | ||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[08.2004 -] UCK35,45 LH |
69293-12030 |
from US $1.99 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[08.2004 -] UCK35,45 RH |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69303-0C011
Lock Sub-Assy, Front Door, Rh
[08.2004 -] UCK35,45 |
69303-0C011 |
— | ||
|
69315D
|
69315D
69315-0C020
Link, Front Door Outside Locking, Rh
[08.2004 -] UCK35,45 |
69315-0C020 |
— | ||
|
69316A
|
69316A
69316-0C020
Link, Front Door Outside Locking, Lh
[08.2004 -] UCK35,45 |
69316-0C020 |
— | ||
|
69320
|
69320
69304-0C010
Lock Sub-Assy, Front Door, Lh
[08.2004 -] UCK35,45 |
69304-0C010 |
— | ||
|
69391A
|
69391A
69391-0C010
Cover, Front Door Lock, Outer Rh
[08.2004 -] UCK35,45 |
69391-0C010 |
— | ||
|
69392
|
69392
69392-0C010
Cover, Front Door Lock, Outer Lh
[08.2004 -] UCK35,45 |
69392-0C010 |
— | ||
|
69410
|
69410
69410-0C020
Plate Assy, Front Door Lock Striker
[08.2004 -] UCK35,45 |
69410-0C020 |
— | ||
|
69710B
|
69710B
69710-0C020
Cable Assy, Front Door Lock Remote Control, Rh
[08.2004 -] UCK35,45 |
69710-0C020 |
— | ||
|
69720
|
69720
69720-0C010
Link Assy, Front Door Open Control, Lh
[08.2004 -] UCK35,45 |
69720-0C010 |
— | ||
|
69725
|
69725
69725-0C020
Protector, Front Door Inside Locking Link, Rh
[08.2004 -] UCK35,45 |
69725-0C020 |
— | ||
|
69726A
|
69726A
69726-0C020
Protecter, Front Door Inside Locking Link, Lh
[08.2004 -] UCK35,45 |
69726-0C020 |
— | ||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[08.2004 -] UCK35,45 |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-0C021
Cable Assy, Front Door Inside Locking, Rh
[08.2004 -] UCK35,45 |
69750-0C021 |
— | ||
|
69759H
|
69759H
69759-24080 Snap, Front Door Lock Control Rod[08.2004 -] UCK35,45 LH |
69759-24080 |
from US $2.22 |
||
|
69759H
|
69759H
69759-24090 Snap, Front Door Lock Control Rod[08.2004 -] UCK35,45 RH |
69759-24090 |
US $2.88 |
||
|
69760C
|
69760C
69760-0C020
Cable Assy, Front Door Inside Locking Lh
[08.2004 -] UCK35,45 |
69760-0C020 |
— | ||
|
90148A0005
|
90148A0005
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9008010079
|
9008010079
90080-10079
New Genuine Part
|
90080-10079 |
— | ||
|
9008410053
|
9008410053
90084-10053
New Genuine Part
|
90084-10053 |
— | ||
|
9014880028
|
9014880028
90148-80028 SCREW, HEX LOBULAR |
90148-80028 |
from US $0.70 |
||
|
9015930021
|
9015930021
90159-30021 New Genuine Part |
90159-30021 |
US $1.60 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
||
|
9356013008
|
9356013008
93560-13008 New Genuine Part |
93560-13008 |
US $2.72 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
