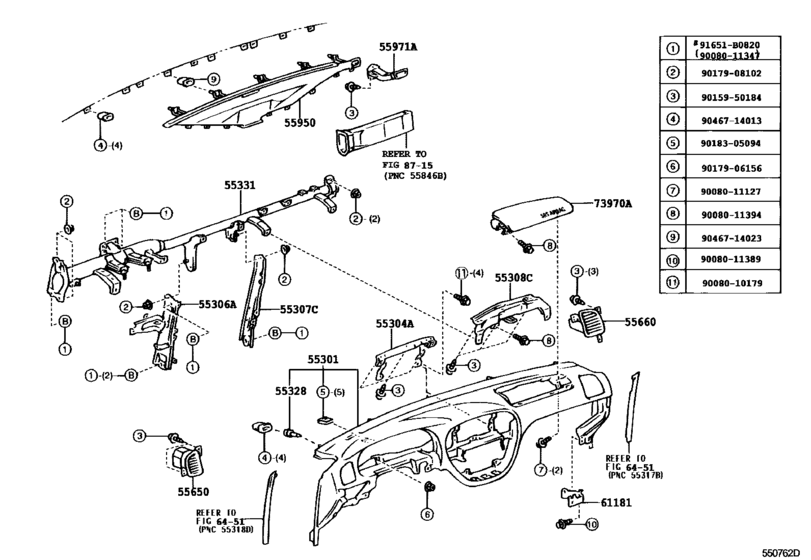

Instrument Panel & Glove Compartment ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-0C020-B0
Panel Sub-Assy, Instrument
[08.2004 -] UCK35,45 DK.CHARCOAL,TRIM1# |
55301-0C020-B0 |
— | ||
|
55301
|
55301
55301-0C020-E1
Panel Sub-Assy, Instrument
[08.2004 -] UCK35,45 SANDAL WOOD,TRIM42,43 |
55301-0C020-E1 |
— | ||
|
55304A
|
55304A
55304-0C020
Stay Sub-Assy, Instrument Panel, Center
[08.2004 -] UCK35,45 |
55304-0C020 |
— | ||
|
55306A
|
55306A
55306-0C021
Brace Sub-Assy, Instrument Panel, No.1
[08.2004 -] UCK35,45 |
55306-0C021 |
— | ||
|
55307C
|
55307C
55307-0C020
Brace Sub-Assy, Instrument Panel, No.2
[08.2004 -] UCK35,45 |
55307-0C020 |
— | ||
|
55308C
|
55308C
55308-0C012
Bracket Sub-Assy, Instrument Panel, Center
[08.2004 -] UCK35,45 |
55308-0C012 |
— | ||
|
55328
|
55328
90249-04057 Pin, Instrument Panel, No.1[08.2004 -] UCK35,45 |
90249-04057 |
US $3.68 |
||
|
55331
|
55331
55330-0C021
Reinforcement, Instrument Panel
[08.2004 -] UCK35,45 |
55330-0C021 |
— | ||
|
55650
|
55650
55650-0C010
Register Assy, Instrument Panel, No.1
[08.2004 -] UCK35,45 |
55650-0C010 |
— | ||
|
55660
|
55660
55660-0C010
Register Assy, Instrument Panel, No.2
[08.2004 -] UCK35,45 |
55660-0C010 |
— | ||
|
55950
|
55950
55950-0C010
Nozzle Assy, Defroster
[08.2004 -] UCK35,45 |
55950-0C010 |
— | ||
|
55971A
|
55971A
55971-0C010
Duct, Side Defroster Nozzle, No.1
[08.2004 -] UCK35,45 |
55971-0C010 |
— | ||
|
61181
|
61181
61187-0C010
Bracket, Instrument Panel Side
[08.2004 -] UCK35,45 |
61187-0C010 |
— | ||
|
73970A
|
73970A
73970-0C021-B0
Air Bag Assy, Instrument Panel Passenger
[08.2004 -] UCK35,45 DK.CHARCOAL,TRIM1# |
73970-0C021-B0 |
— | ||
|
73970A
|
73970A
73970-0C021-E1
Air Bag Assy, Instrument Panel Passenger
[08.2004 -] UCK35,45 SANDAL WOOD,TRIM42,43 |
73970-0C021-E1 |
— | ||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9008010179
|
9008010179
90080-10179 New Genuine Part |
90080-10179 |
US $1.02 |
||
|
9008011127
|
9008011127
90080-11127 New Genuine Part |
90080-11127 |
US $2.73 |
||
|
9008011347
|
9008011347
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9008011389
|
9008011389
90080-11389
New Genuine Part
|
90080-11389 |
— | ||
|
9008011394
|
9008011394
90080-11394
New Genuine Part
|
90080-11394 |
— | ||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.60 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9046714013
|
9046714013
90467-14013 New Genuine Part |
90467-14013 |
US $2.56 |
||
|
9046714023
|
9046714023
90467-14023 Clip, Instrument Panel, No.1 |
90467-14023 |
US $3.04 |
||
