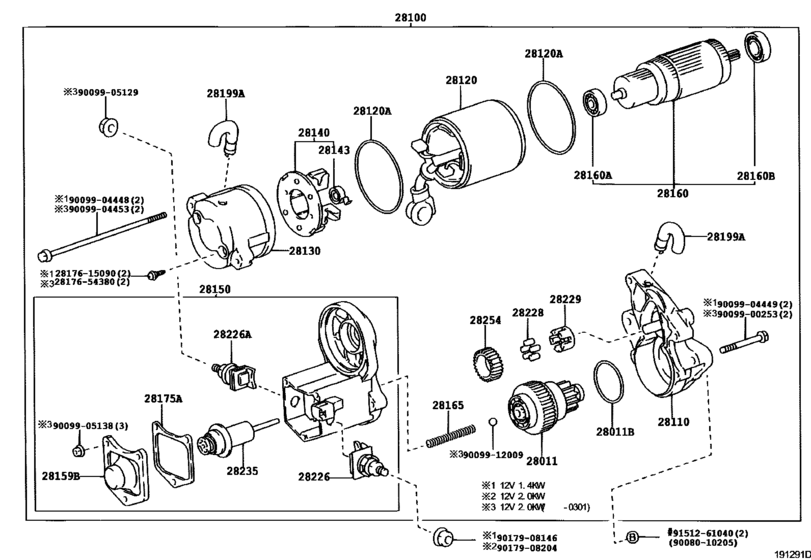

Starter ([09.2000 - 08.2004] 12V 1.4KW,2.0KW (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-50050 Clutch Sub-Assy, Starter[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28011-50050 |
US $270.82 |
||
|
28011
|
28011
28011-50060 Clutch Sub-Assy, StarterSTARTER [09.2000 - 02.2004] 2UZFE..UCK35,45 12V 2.0KW |
28011-50060 |
from US $189.29 |
||
|
28011B
|
28011B
96711-24040 Ring, O(For Starter Clutch)[09.2000 - 03.2004] 2UZFE..UCK35,45 |
96711-24040 |
US $3.79 |
||
|
28100
|
28100
28100-50090 Starter Assy[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28100-50090 |
US $1,046.86 |
||
| replacement | |||||
|
28100
|
28100
28100-50091 Starter Assy[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28100-50091 |
US $1,237.02 |
||
|
28100
|
28100
28100-50100 Starter Assy[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW,COLD SPEC |
28100-50100 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-50101 Starter Assy[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW,COLD SPEC |
28100-50101 |
from US $926.23 |
||
|
28100
|
28100
28100-50101 Starter Assy[03.2004 - 08.2004] 2UZFE..UCK35,45 12V 2.0KW |
28100-50101 |
from US $926.23 |
||
|
28110
|
28110
28110-50040 Housing Assy, Starter Drive[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28110-50040 |
US $80.08 |
||
|
28110
|
28110
28110-50070 Housing Assy, Starter DriveSTARTER DRIVE [09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28110-50070 |
US $66.25 |
||
|
28120
|
28120
28120-50040
Yoke Assy, Starter
[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28120-50040 |
— | ||
|
28120
|
28120
28120-50070
Yoke Assy, Starter
[09.2000 - 08.2004] 2UZFE..UCK35,45 12V 2.0KW |
28120-50070 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[09.2000 - 03.2004] 2UZFE..UCK35,45 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-50040
Frame Assy, Starter Commutator End
[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28130-50040 |
— | ||
|
28130
|
28130
28130-50070
Frame Assy, Starter Commutator End
[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28130-50070 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28140-76070 |
from US $17.65 |
||
|
28143
|
28143
28143-54380
Spring, Starter Brush
[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28143-54380 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-50080 Switch Assy, Magnet Starter[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28150-50080 |
US $224.22 |
||
|
28150
|
28150
28150-50100 Switch Assy, Magnet StarterMAGNET STARTER [09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28150-50100 |
US $235.87 |
||
|
28159B
|
28159B
28159-50080 Cover, Magnet Switch[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28159-50080 |
US $20.63 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28160-74070 |
— | ||
|
28160
|
28160
28160-75120 Armature Assy, Starter[09.2000 - 08.2004] 2UZFE..UCK35,45 12V 2.0KW |
28160-75120 |
US $248.98 |
||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
90099-10197 |
from US $7.34 |
||
|
28160B
|
28160B
90099-10197 Bearing, Starter Armature[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
90099-10197 |
from US $7.34 |
||
|
28160B
|
28160B
90099-10208 Bearing, Starter Armature[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
90099-10208 |
US $15.95 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28165-76070 |
— | ||
|
28175A
|
28175A
28175-50080
Gasket, Magnet Switch Cover
[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28175-50080 |
— | ||
|
28199A
|
28199A
28199-50040 Cover, Starter[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28199-50040 |
US $6.05 |
||
|
28226
|
28226
28226-50070 Starter Kit, Battery Terminal[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28226-50070 |
US $7.18 |
||
|
28226A
|
28226A
28226-50080 Starter Kit, Battery Terminal[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28226-50080 |
from US $7.18 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28229-74070 |
US $1.46 |
||
|
28235
|
28235
28235-54380 Plunger, Magnet Switch[09.2000 - 03.2004] 2UZFE..UCK35,45 |
28235-54380 |
from US $21.43 |
||
|
28254
|
28254
28254-64130
Pinion, Starter Drive
[09.2000 - 03.2004] 2UZFE..UCK35,45 12V 2.0KW |
28254-64130 |
— | ||
|
28254
|
28254
28254-74070
Pinion, Starter Drive
[09.2000 - 08.2001] 2UZFE..UCK35,45 12V 1.4KW |
28254-74070 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
2817654380
|
2817654380
28176-54380
Screw, Starter
|
28176-54380 |
— | ||
|
9008010205
|
9008010205
90080-10205
New Genuine Part
|
90080-10205 |
— | ||
|
9009900253
|
9009900253
90099-00253
New Genuine Part
|
90099-00253 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904453
|
9009904453
90099-04453
New Genuine Part
|
90099-04453 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905138
|
9009905138
90099-05138
New Genuine Part
|
90099-05138 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9151261040
|
9151261040
91512-61040 New Genuine Part |
91512-61040 |
US $2.80 |
||
