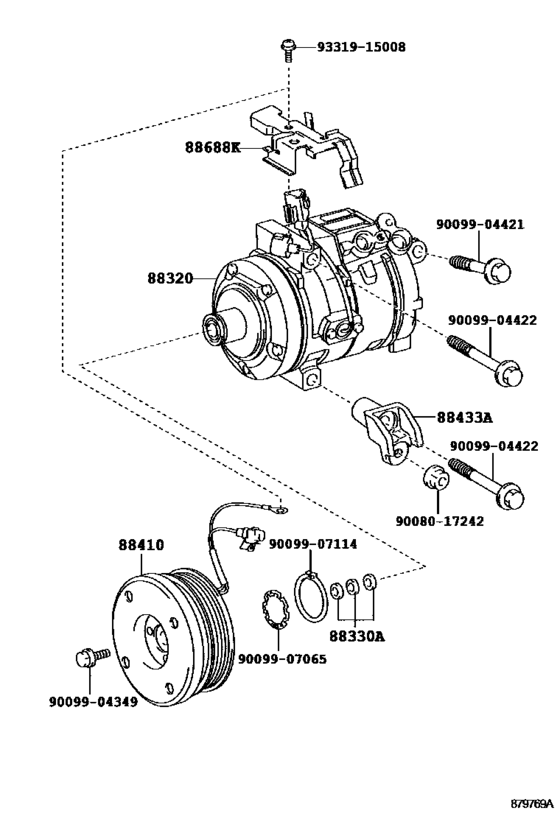

Heating & Air Conditioning - Compressor ([11.2007 - 04.2009] (0711-0904)UCK6#) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-0C140
Compressor Assy, Cooler
[11.2007 - 04.2009] UCK6# |
88320-0C140 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[11.2007 -] UCK6#,UPK6#,USK6# |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-0C100
Clutch Assy, Magnet
[11.2007 - 04.2009] UCK6# |
88410-0C100 |
— | ||
|
88433A
|
88433A
88433-0C011
Stay, Compressor
[11.2007 - 04.2009] UCK6# |
88433-0C011 |
— | ||
|
88688K
|
88688K
88688-0C290
Bracket, Cooler Compressor
[11.2007 - 04.2009] UCK6# |
88688-0C290 |
— | ||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.15 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
