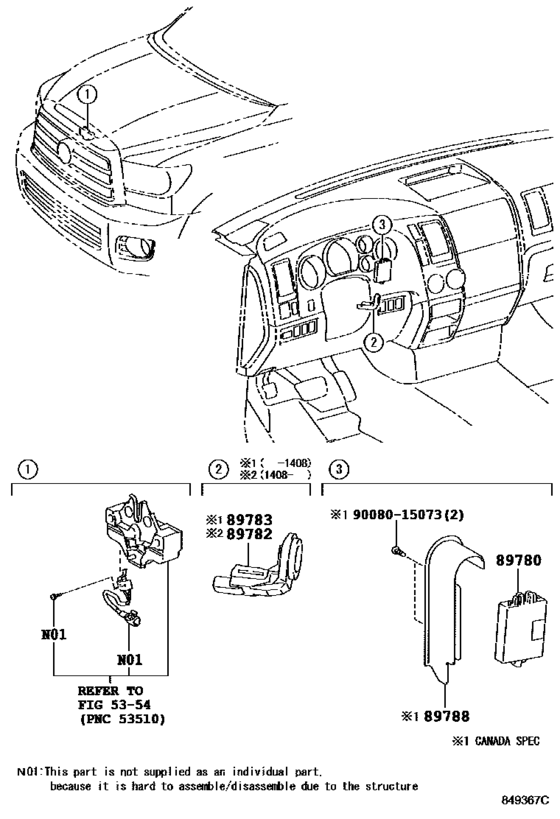

Anti-Theft Device ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89780
|
89780
89780-0C020
Computer Assy, Transponder Key
[11.2007 - 08.2010] UCK6#,UPK6#,USK6# |
89780-0C020 |
— | ||
|
89780
|
89780
89780-0C040
Computer Assy, Transponder Key
[08.2010 - 08.2014] UPK6#,USK6# |
89780-0C040 |
— | ||
|
89780
|
89780
89780-0C060
Computer Assy, Transponder Key
[08.2014 -] USK6# |
89780-0C060 |
— | ||
|
89782
|
89782
89782-0E010
Coil, Transponder Key
[08.2014 -] USK6# |
89782-0E010 |
— | ||
|
89783
|
89783
89783-06020
Amplifier, Transponder Key
[11.2007 - 09.2010] UCK6#,UPK6#,USK6# |
89783-06020 |
— | ||
| replacement | |||||
|
89783
|
89783
89783-06021 Amplifier, Transponder Key[11.2007 - 09.2010] UCK6#,UPK6#,USK6# |
89783-06021 |
from US $118.81 |
||
|
89783
|
89783
89783-06021 Amplifier, Transponder Key[10.2010 - 04.2012] UPK6#,USK6# |
89783-06021 |
from US $118.81 |
||
|
89783
|
89783
89783-0C020
Amplifier, Transponder Key
[05.2012 - 08.2014] UPK6#,USK6# |
89783-0C020 |
— | ||
|
89788
|
89788
89788-0C010
Bracket, Transponder Key
[11.2007 - 11.2009] UCK65,UPK65,USK65..HTWC CANADA SPEC |
89788-0C010 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
