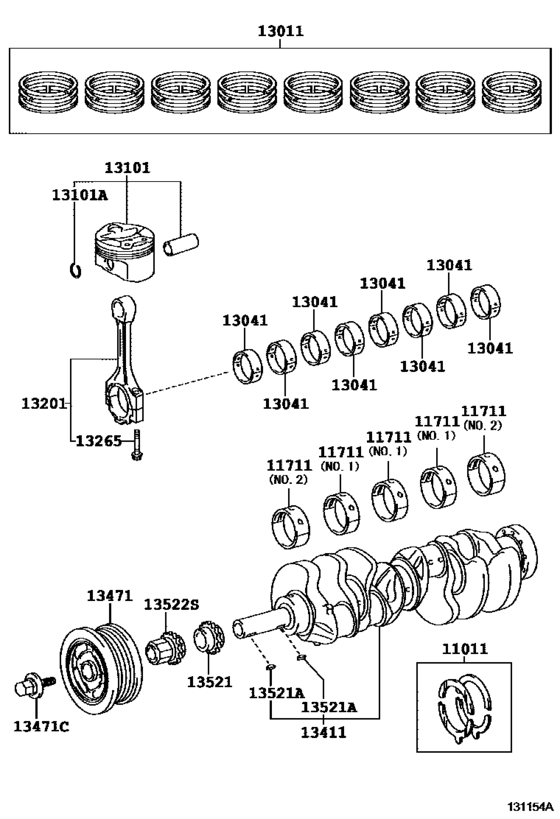

Crankshaft & Piston ([11.2007 - ] (0711- )1URFE,3UR#) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0S010
Washer Set, Crankshaft Thrust
[01.2009 -] 1URFE,3UR#..UPK6#,USK6# STD,(L) |
11011-0S010 |
— | ||
|
11011
|
11011
11011-38040 Washer Set, Crankshaft Thrust[11.2007 - 12.2007] 3URFE..USK6# STD |
11011-38040 |
US $33.20 |
||
| replacement | |||||
|
11011
|
11011
11011-38050 Washer Set, Crankshaft Thrust[11.2007 - 12.2007] 3URFE..USK6# STD |
11011-38050 |
from US $23.56 |
||
|
11011
|
11011
11011-38050 Washer Set, Crankshaft Thrust[12.2007 - 01.2009] 3UR#..USK6# STD |
11011-38050 |
from US $23.56 |
||
|
11711
|
11711
11071-38010-C4 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER3LOWER4,NO.1,REFER R/M |
11071-38010-C4 |
from US $20.96 |
||
|
11711
|
11711
11071-38010-D4 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER4LOWER4,NO.1,REFER R/M |
11071-38010-D4 |
from US $20.01 |
||
|
11711
|
11711
11071-38010-D5 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER4LOWER5,NO.1,REFER R/M |
11071-38010-D5 |
from US $20.16 |
||
|
11711
|
11711
11071-38010-E5 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER5LOWER5,NO.1,REFER R/M |
11071-38010-E5 |
from US $20.05 |
||
|
11711
|
11711
11071-38010-E6 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER5LOEWR6,NO.1,REFER R/M |
11071-38010-E6 |
US $35.82 |
||
|
11711
|
11711
11071-38010-F6 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER6LOWER6,NO.1,REFER R/M |
11071-38010-F6 |
from US $21.53 |
||
|
11711
|
11711
11071-38010-F7 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER6LOWER7,NO.1,REFER R/M |
11071-38010-F7 |
from US $20.24 |
||
|
11711
|
11711
11071-38010-G7 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER7LOWER7,NO.1,REFER R/M |
11071-38010-G7 |
from US $21.53 |
||
|
11711
|
11711
11071-38010-G8 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER7LOWER8,NO.1,REFER R/M |
11071-38010-G8 |
from US $18.27 |
||
|
11711
|
11711
11071-38010-H8 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER8LOWER8,NO.1,REFER R/M |
11071-38010-H8 |
from US $21.53 |
||
|
11711
|
11711
11072-38010-D5 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER4LOWER5,NO.2,REFER R/M |
11072-38010-D5 |
from US $20.94 |
||
|
11711
|
11711
11072-38010-E5 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER5LOWER5,NO.2,REFER R/M |
11072-38010-E5 |
US $20.16 |
||
|
11711
|
11711
11072-38010-E6 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER5LOWER6,NO.2,REFER R/M |
11072-38010-E6 |
from US $20.24 |
||
|
11711
|
11711
11072-38010-F6 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER6LOWER6,NO.2,REFER R/M |
11072-38010-F6 |
from US $20.67 |
||
|
11711
|
11711
11072-38010-F7 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER6LOWER7,NO.2,REFER R/M |
11072-38010-F7 |
from US $19.83 |
||
|
11711
|
11711
11072-38010-G7 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER7LOWER7,NO.2,REFER R/M |
11072-38010-G7 |
from US $19.71 |
||
|
11711
|
11711
11072-38010-G8 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER7LOWER8,NO.2,REFER R/M |
11072-38010-G8 |
from US $21.20 |
||
|
11711
|
11711
11072-38010-H8 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER8LOWER8,NO.2,REFER R/M |
11072-38010-H8 |
from US $18.99 |
||
|
11711
|
11711
11072-38010-H9 Bearing, Crankshaft[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPWE8LOWER9,NO.2,REFER R/M |
11072-38010-H9 |
US $36.84 |
||
|
11711
|
11711
11072-38010-K9
Bearing, Crankshaft
[11.2007 -] 1URFE,3UR#..UPK6#,USK6# MARKUPPER9LOWER9,NO.2,REFER R/M |
11072-38010-K9 |
— | ||
|
13011
|
13011
13011-0S011 Ring Set, PistonPISTON [11.2007 -] 1URFE,3UR#..UPK6#,USK6# STD |
13011-0S011 |
from US $256.25 |
||
|
13011
|
13011
13011-0S020
Ring Set, Piston
[08.2014 -] 3URFE..USK60 STD,MEXICO SPEC; 3URFE..USK65 STD,SOUTH AMERICA SPEC |
13011-0S020 |
— | ||
|
13041
|
13041
13041-38060-02 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK2,REFER REPAIR MANUAL |
13041-38060-02 |
from US $11.86 |
||
|
13041
|
13041
13041-38060-03 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK3,REFER REPAIR MANUAL |
13041-38060-03 |
from US $12.56 |
||
|
13041
|
13041
13041-38060-04 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK4,REFER REPAIR MANUAL |
13041-38060-04 |
from US $11.45 |
||
|
13041
|
13041
13041-38060-05 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK5,REFER REPAIR MANUAL |
13041-38060-05 |
from US $11.70 |
||
|
13041
|
13041
13041-38060-06 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK6,REFER REPAIR MANUAL |
13041-38060-06 |
from US $12.56 |
||
|
13041
|
13041
13041-38060-07 Bearing, Connecting RodCONNECTING ROD [11.2007 -] 3UR#..USK6# MARK7,REFER REPAIR MANUAL |
13041-38060-07 |
US $18.49 |
||
|
13101
|
13101
13101-0S011 Piston Sub-Assy, W/pinW/PIN [11.2007 - 08.2013] 3UR#..USK6# STD |
13101-0S011 |
US $99.59 |
||
|
13101
|
13101
13101-0S030 Piston Sub-Assy, W/pin[08.2013 -] 3UR#..USK6# STD |
13101-0S030 |
US $95.40 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-0S010
Rod Sub-Assy, Connecting
[11.2007 -] 3UR#..USK6# (L) |
13201-0S010 |
— | ||
|
13201
|
13201
13201-38020 Rod Sub-Assy, ConnectingCONNECTING [11.2007 -] 3UR#..USK6# (J) |
13201-38020 |
US $147.36 |
||
|
13265
|
13265
13265-31020 Bolt, Connecting Rod[11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
13265-31020 |
from US $3.20 |
||
|
13411
|
13411
13401-0S010
Crankshaft
[11.2007 -] 3UR#..USK6# (L) |
13401-0S010 |
— | ||
|
13411
|
13411
13401-38010 Crankshaft[11.2007 -] 3UR#..USK6# (J) |
13401-38010 |
from US $1,826.53 |
||
|
13471
|
13471
13470-0S010 Pulley, CrankshaftCRANKSHAFT [11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
13470-0S010 |
US $211.68 |
||
|
13471C
|
13471C
90119-18003 Bolt(For Crankshaft Pulley Set)[11.2007 - 04.2015] 1URFE,3UR#..UPK6#,USK6# |
90119-18003 |
US $9.12 |
||
|
13471C
|
13471C
90119-A0311
Bolt(For Crankshaft Pulley Set)
[04.2015 -] 3UR#..USK6# (L) |
90119-A0311 |
— | ||
|
13521
|
13521
13521-38020 Gear Or Sprocket, Crankshaft Timing[11.2007 - 10.2008] 3UR#..USK6# |
13521-38020 |
from US $34.83 |
||
|
13521
|
13521
13521-38030 Gear Or Sprocket, Crankshaft Timing[10.2008 -] 1URFE,3UR#..UPK6#,USK6# |
13521-38030 |
from US $24.81 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
95161-30516 |
from US $1.07 |
||
|
13522S
|
13522S
13522-38020 Sprocket, Crankshaft Timing, Lh[11.2007 - 10.2008] 3UR#..USK6# |
13522-38020 |
from US $78.72 |
||
|
13522S
|
13522S
13522-38030 Sprocket, Crankshaft Timing, Lh[10.2008 -] 1URFE,3UR#..UPK6#,USK6# |
13522-38030 |
US $53.50 |
||
