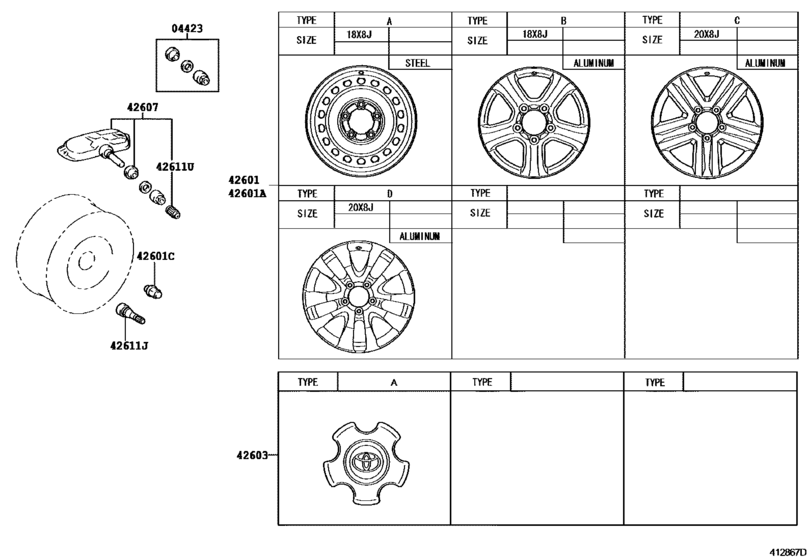

Disc Wheel & Wheel Cap ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-0C170 Fitting Kit, Tire Pressure Monitor Or Balancer ValveTIRE PRESSURE MONITOR OR BALANCER VALVE [11.2007 -] UCK6#,UPK6#,USK6# |
04423-0C170 |
US $4.96 |
||
|
42601
|
42601
42611-0C040
Wheel, Disc
[11.2007 - 10.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 18X8J,TYPE B:REFER ILLUST. |
42611-0C040 |
— | ||
|
42601
|
42601
42611-0C070
Wheel, Disc
[10.2009 - 01.2010] UPK6#,USK6#..LIMD,SR5 18X8J,TYPE B:REFER ILLUST. |
42611-0C070 |
— | ||
| replacement | |||||
|
42601
|
42601
42611-0C040
Wheel, Disc
[10.2009 - 01.2010] UPK6#,USK6#..LIMD,SR5 18X8J,TYPE B:REFER ILLUST. |
42611-0C040 |
— | ||
|
42601
|
42601
42611-0C100 Wheel, Disc[01.2010 -] UPK6#,USK6#..LIMD,SR5 18X8J,TYPE B:REFER ILLUST. |
42611-0C100 |
US $665.39 |
||
|
42601
|
42601
42611-0C120 Wheel, DiscDISC [11.2007 -] UCK6#,UPK6#,USK6#..LIMD 20X8J,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE D:REFER ILLUST.; UCK60,UPK60,USK60..LIMD 20X8J,MEXICO SPEC&TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE D:REFER ILLUST. |
42611-0C120 |
US $732.37 |
||
|
42601A
|
42601A
42601-0C060 Wheel, Disc (For Spare)DISC (FOR SPARE) [11.2007 -] UCK6#,UPK6#,USK6# 18X8J,TYPE A:REFER ILLUST. |
42601-0C060 |
US $220.32 |
||
|
42601C
|
42601C
90942-01103 Nut, Hub (For Axle)[11.2007 - 04.2011] UCK6#,UPK6#,USK6# |
90942-01103 |
from US $8.85 |
||
|
42601C
|
42601C
90942-A1001 Nut, Hub (For Axle)[05.2011 -] UPK6#,USK6# |
90942-A1001 |
from US $9.44 |
||
|
42603
|
42603
42603-0C070 Ornament Sub-Assy, Wheel HubWHEEL HUB [11.2007 -] UCK6#,UPK6#,USK6#..LIMD,SR5 *ALU,TYPE A:REFER ILLUST.; UCK6#,UPK6#,USK6#..SR5 *ALU,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE A:REFER ILLUST. |
42603-0C070 |
from US $49.88 |
||
|
42603
|
42603
42603-0C110 Ornament Sub-Assy, Wheel HubWHEEL HUB [11.2007 -] UCK6#,UPK6#,USK6#..LIMD *ALU,TIRE & DISC WHEEL-P275/55R20 8J ALUMINUM,TYPE A:REFER ILLUST. |
42603-0C110 |
from US $34.20 |
||
|
42607
|
42607
42607-08010 Valve Sub-Assy, Tire Pressure MonitorTIRE PRESSURE MONITOR [02.2010 - 09.2011] UPK6#,USK6# |
42607-08010 |
US $116.48 |
||
| replacement | |||||
|
42607
|
42607
42607-0C070 Valve Sub-Assy, Tire Pressure Monitor[02.2010 - 09.2011] UPK6#,USK6# |
42607-0C070 |
US $97.97 |
||
|
42607
|
42607
42607-0C050
Valve Sub-Assy, Tire Pressure Monitor
[11.2007 - 01.2010] UCK6#,UPK6#,USK6# |
42607-0C050 |
— | ||
| replacement | |||||
|
42607
|
42607
42607-0C070 Valve Sub-Assy, Tire Pressure Monitor[11.2007 - 01.2010] UCK6#,UPK6#,USK6# |
42607-0C070 |
US $97.97 |
||
|
42607
|
42607
42607-0C070 Valve Sub-Assy, Tire Pressure Monitor[10.2011 -] UPK6#,USK6# |
42607-0C070 |
US $97.97 |
||
|
42611J
|
42611J
90080-45006
Valve (For Tubeless Tire)
[11.2007 -] UCK6#,UPK6#,USK6# |
90080-45006 |
— | ||
|
42611U
|
42611U
90942-A5004 Valve (For Tubeless Tire)TIRE VALVE [11.2007 -] UCK6#,UPK6#,USK6# |
90942-A5004 |
US $1.16 |
||
