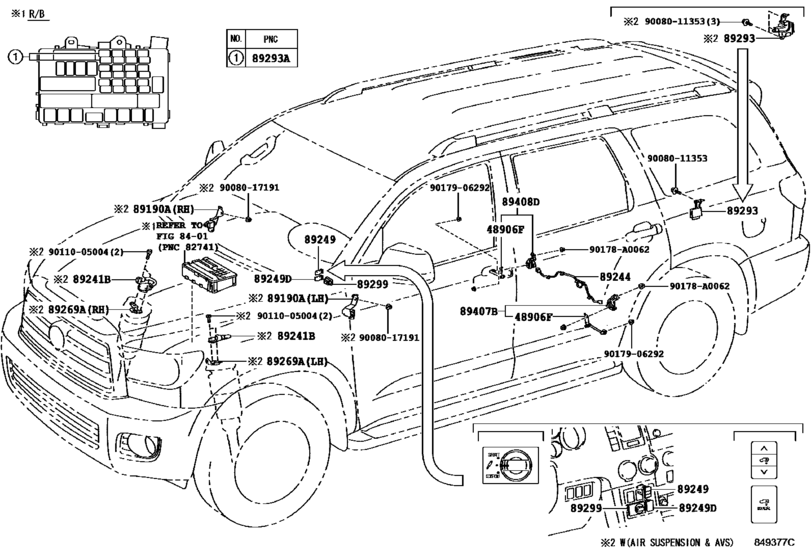

Electronic Modulated Suspension ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48906F
|
48906F
48906-34020 Link Sub-Assy, Height Control Sensor, RearHEIGHT CONTROL SENSOR, REAR [11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION,RH |
48906-34020 |
US $36.94 |
||
|
48906F
|
48906F
48906-34030 Link Sub-Assy, Height Control Sensor, RearHEIGHT CONTROL SENSOR, REAR [11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION,LH |
48906-34030 |
US $36.94 |
||
|
89244
|
89244
89244-0C010
Wire, Absorber Control, Rear
[11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89244-0C010 |
— | ||
|
89249
|
89249
89249-0C030
Switch, Absorber Control
[11.2007 - 11.2009] UPK60,USK60..LIMD,SR5 TOWING PACKAGE-WITH&REAR SUSPENSION-AIR SUSPENSION; UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89249-0C030 |
— | ||
|
89249D
|
89249D
89249-0C040
Switch, Absorber Control No.2
[11.2007 - 11.2009] UPK60,USK60..LIMD,SR5 TOWING PACKAGE-WITH&REAR SUSPENSION-AIR SUSPENSION; UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89249-0C040 |
— | ||
| replacement | |||||
|
89249D
|
89249D
89249-0C041
Switch, Absorber Control No.2
[11.2007 - 11.2009] UPK60,USK60..LIMD,SR5 TOWING PACKAGE-WITH&REAR SUSPENSION-AIR SUSPENSION; UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89249-0C041 |
— | ||
|
89293
|
89293
89293-34020
Computer, Suspension Control
[11.2007 - 07.2008] UCK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89293-34020 |
— | ||
| replacement | |||||
|
89293
|
89293
89293-34021
Computer, Suspension Control
[11.2007 - 07.2008] UCK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89293-34021 |
— | ||
|
89293
|
89293
89293-34021
Computer, Suspension Control
[08.2008 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89293-34021 |
— | ||
|
89293A
|
89293A
90080-87024 Relay, Water PumpIGNITION, NO.1 [11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
90080-87024 |
US $63.26 |
||
|
89407B
|
89407B
89407-34020 Sensor Sub-Assy, Height Control, Rear RhHEIGHT CONTROL, REAR RH [11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89407-34020 |
from US $275.69 |
||
|
89408D
|
89408D
89408-34030 Sensor Sub-Assy, Height Control, Rear LhHEIGHT CONTROL, REAR LH [11.2007 - 11.2009] UCK6#,UPK6#,USK6#..LIMD,SR5 REAR SUSPENSION-AIR SUSPENSION |
89408-34030 |
from US $275.69 |
||
|
90178A0062
|
90178A0062
90178-A0062
New Genuine Part
|
90178-A0062 |
— | ||
|
9008011353
|
9008011353
90080-11353 New Genuine Part |
90080-11353 |
US $1.46 |
||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9011005004
|
9011005004
90110-05004 BOLT HEXAGON SOCKET |
90110-05004 |
from US $0.80 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
