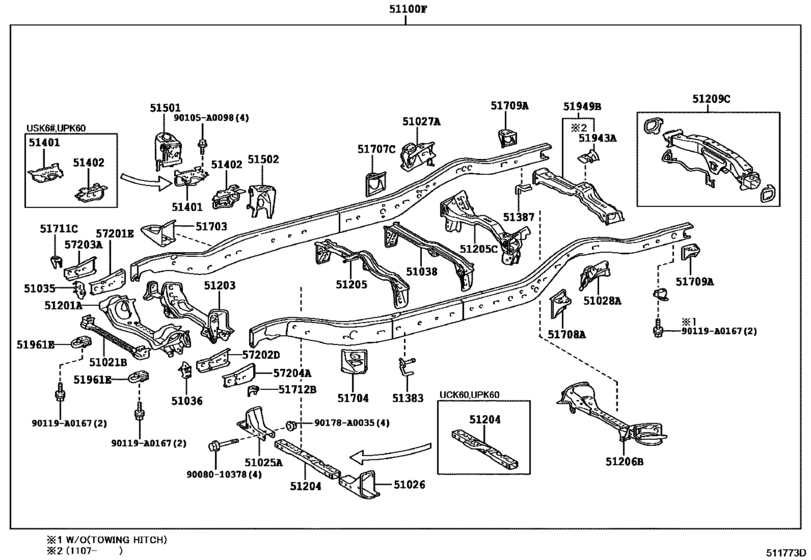

Frame ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51021B
|
51021B
51021-0C030 Crossmember Sub-Assy, Frame AuxiliaryFRAME AUXILIARY [11.2007 - 11.2008] UCK6#,USK6# |
51021-0C030 |
US $96.10 |
||
|
51021B
|
51021B
51021-0C040
Crossmember Sub-Assy, Frame Auxiliary
[12.2008 -] UCK6#,UPK6#,USK6# |
51021-0C040 |
— | ||
|
51025A
|
51025A
51025-0C040
Member Sub-Assy, Engine Front Mounting
[11.2007 -] UCK6#,UPK6#,USK6# |
51025-0C040 |
— | ||
|
51026
|
51026
51026-0C020
Bracket Sub-Assy, Frame No.3 Cross Member, Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
51026-0C020 |
— | ||
|
51027A
|
51027A
51027-0C020
Bracket Sub-Assy, Frame No.4 Crossmember, Rh
[11.2007 -] UCK6#,UPK6#,USK6# |
51027-0C020 |
— | ||
|
51028A
|
51028A
51028-0C020
Bracket Sub-Assy, Frame No.4 Crossmember, Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
51028-0C020 |
— | ||
|
51035
|
51035
51035-0C040 Plate Sub-Assy, Frame Side Rail, RhFRAME SIDE RAIL, RH [11.2007 -] UCK6#,UPK6#,USK6# |
51035-0C040 |
US $22.54 |
||
|
51036
|
51036
51036-0C040 Plate Sub-Assy, Frame Side Rail, LhFRAME SIDE RAIL, LH [11.2007 -] UCK6#,UPK6#,USK6# |
51036-0C040 |
US $22.54 |
||
|
51038
|
51038
51038-0C010
Member Sub-Assy, Fuel Tank Support
[11.2007 -] UCK6#,UPK6#,USK6# |
51038-0C010 |
— | ||
|
51100F
|
51100F
51001-0C610
Frame Sub-Assy
[11.2007 - 07.2008] USK6# |
51001-0C610 |
— | ||
| replacements | |||||
|
51100F
|
51100F
51001-0C615
Frame Sub-Assy
[11.2007 - 07.2008] USK6# |
51001-0C615 |
— | ||
|
51100F
|
51100F
51900-34040
Carrier Assy, Spare Wheel
[11.2007 - 07.2008] USK6# |
51900-34040 |
— | ||
|
51100F
|
51100F
51001-0C611
Frame Sub-Assy
[08.2008 - 11.2009] UPK65,USK6# |
51001-0C611 |
— | ||
| replacements | |||||
|
51100F
|
51100F
51001-0C615
Frame Sub-Assy
[08.2008 - 11.2009] UPK65,USK6# |
51001-0C615 |
— | ||
|
51100F
|
51100F
51900-34040
Carrier Assy, Spare Wheel
[08.2008 - 11.2009] UPK65,USK6# |
51900-34040 |
— | ||
|
51100F
|
51100F
51001-0C612
Frame Sub-Assy
[12.2009 - 02.2010] UPK65,USK6# |
51001-0C612 |
— | ||
| replacements | |||||
|
51100F
|
51100F
51001-0C615
Frame Sub-Assy
[12.2009 - 02.2010] UPK65,USK6# |
51001-0C615 |
— | ||
|
51100F
|
51100F
51900-34040
Carrier Assy, Spare Wheel
[12.2009 - 02.2010] UPK65,USK6# |
51900-34040 |
— | ||
|
51100F
|
51100F
51001-0C614
Frame Sub-Assy
[02.2010 - 09.2011] UPK65,USK65 |
51001-0C614 |
— | ||
| replacements | |||||
|
51100F
|
51100F
51001-0C615
Frame Sub-Assy
[02.2010 - 09.2011] UPK65,USK65 |
51001-0C615 |
— | ||
|
51100F
|
51100F
51900-34040
Carrier Assy, Spare Wheel
[02.2010 - 09.2011] UPK65,USK65 |
51900-34040 |
— | ||
|
51100F
|
51100F
51001-0C615
Frame Sub-Assy
[09.2011 -] UPK65,USK65 |
51001-0C615 |
— | ||
|
51201A
|
51201A
51201-0C020
Crossmember Sub-Assy, Frame, Front
[11.2007 - 11.2009] UCK6#,UPK65,USK6# |
51201-0C020 |
— | ||
|
51201A
|
51201A
51201-0C030
Crossmember Sub-Assy, Frame, Front
[12.2009 -] UPK65,USK6# |
51201-0C030 |
— | ||
|
51203
|
51203
51202-0C020
Crossmember Sub-Assy, Frame, No.2
[11.2007 - 12.2009] UCK6#,UPK6#,USK6# |
51202-0C020 |
— | ||
| replacement | |||||
|
51203
|
51203
51202-0C021
Crossmember Sub-Assy, Frame, No.2
[11.2007 - 12.2009] UCK6#,UPK6#,USK6# |
51202-0C021 |
— | ||
|
51203
|
51203
51202-0C041
Crossmember Sub-Assy, Frame, No.2
[12.2009 -] UPK6#,USK6# |
51202-0C041 |
— | ||
|
51204
|
51204
51203-0C040 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [11.2007 - 12.2009] UCK65,UPK65,USK6# |
51203-0C040 |
US $386.46 |
||
|
51204
|
51204
51203-0C080
Crossmember Sub-Assy, Frame, No.3
[12.2009 -] UPK65,USK6# |
51203-0C080 |
— | ||
|
51205
|
51205
51204-0C120
Crossmember Sub-Assy, Frame, No.4
[11.2007 -] UCK6#,UPK6#,USK6# |
51204-0C120 |
— | ||
|
51205C
|
51205C
51205-0C070
Crossmember Sub-Assy, Frame, No.5
[11.2007 - 01.2010] UCK6#,UPK6#,USK6# |
51205-0C070 |
— | ||
|
51205C
|
51205C
51205-0C071
Crossmember Sub-Assy, Frame, No.5
[02.2010 -] UPK6#,USK6# |
51205-0C071 |
— | ||
|
51206B
|
51206B
51206-0C050
Crossmember Sub-Assy, Frame, No.6
[11.2007 - 01.2010] UCK6#,UPK6#,USK6# |
51206-0C050 |
— | ||
|
51206B
|
51206B
51206-0C051
Crossmember Sub-Assy, Frame, No.6
[02.2010 -] UPK6#,USK6# |
51206-0C051 |
— | ||
|
51209C
|
51209C
51209-0C900
Crossmember Sub-Assy, Frame, Rear
[11.2007 - 02.2010] UCK6#,UPK6#,USK6# |
51209-0C900 |
— | ||
| replacement | |||||
|
51209C
|
51209C
51209-0C902 Crossmember Sub-Assy, Frame, Rear[11.2007 - 02.2010] UCK6#,UPK6#,USK6# |
51209-0C902 |
US $628.99 |
||
|
51209C
|
51209C
51209-0C902 Crossmember Sub-Assy, Frame, Rear[02.2010 -] UPK6#,USK6# |
51209-0C902 |
US $628.99 |
||
|
51383
|
51383
51383-0C010
Rod, No.3 Crossmember Exhaust Pipe Hanger
[11.2007 -] UCK6#,UPK6#,USK6# |
51383-0C010 |
— | ||
|
51387
|
51387
51387-0C010
Rod, No.7 Crossmember Exhaust Pipe Hanger
[11.2007 -] UCK6#,UPK6#,USK6# |
51387-0C010 |
— | ||
|
51401
|
51401
51401-0C080
Bracket Sub-Assy, Engine Front Mounting, Rh
[11.2007 -] UPK6#,USK6# |
51401-0C080 |
— | ||
|
51402
|
51402
51402-0C080
Bracket Sub-Assy, Engine Front Mounting, Lh
[11.2007 -] UPK6#,USK6# |
51402-0C080 |
— | ||
|
51501
|
51501
51501-0C010
Support Sub-Assy, Suspension Arm, Rh
[11.2007 -] UCK6#,UPK6#,USK6# |
51501-0C010 |
— | ||
|
51502
|
51502
51502-0C010
Support Sub-Assy, Suspension Arm, Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
51502-0C010 |
— | ||
|
51703
|
51703
51703-0C030
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[11.2007 -] UCK6#,UPK6#,USK6# |
51703-0C030 |
— | ||
|
51704
|
51704
51704-0C030
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
51704-0C030 |
— | ||
|
51707C
|
51707C
51707-0C020
Bracket Sub-Assy, Cab Mounting, No.4 Rh
[11.2007 -] UCK6#,UPK6#,USK6# |
51707-0C020 |
— | ||
|
51708A
|
51708A
51708-0C020
Bracket Sub-Assy, Cab Mounting, No.4 Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
51708-0C020 |
— | ||
|
51709A
|
51709A
51709-0C020
Bracket Sub-Assy, Body Rear End Mounting
[11.2007 -] UCK6#,UPK6#,USK6# |
51709-0C020 |
— | ||
|
51711C
|
51711C
51711-0C010 Bracket, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [11.2007 -] UCK6#,UPK6#,USK6# |
51711-0C010 |
US $12.93 |
||
|
51712B
|
51712B
51711-0C010 Bracket, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [11.2007 -] UCK6#,UPK6#,USK6# |
51711-0C010 |
US $12.93 |
||
|
51943A
|
51943A
51091-0C010
Bracket, Spare Wheel Carrier
[09.2011 -] UPK6#,USK6# |
51091-0C010 |
— | ||
|
51949B
|
51949B
51099-0C010
Crossmember, Spare Wheel Carrier
[11.2007 - 09.2011] UCK6#,UPK6#,USK6# |
51099-0C010 |
— | ||
|
51949B
|
51949B
51099-0C020
Crossmember, Spare Wheel Carrier
[09.2011 -] UPK6#,USK6# |
51099-0C020 |
— | ||
|
51961E
|
51961E
51960-0C030 Hook, FrontFRONT [11.2007 -] UCK6#,UPK65,USK65 |
51960-0C030 |
US $39.02 |
||
|
57201E
|
57201E
57201-0C010 Extension Sub-Assy, Front Side Member, RhFRONT SIDE MEMBER, RH [11.2007 -] UCK6#,UPK6#,USK6# |
57201-0C010 |
US $41.41 |
||
|
57202D
|
57202D
57202-0C010 Extension Sub-Assy, Front Side Member, LhFRONT SIDE MEMBER, LH [11.2007 -] UCK6#,UPK6#,USK6# |
57202-0C010 |
US $41.41 |
||
|
57203A
|
57203A
57203-0C010 Extension Sub-Assy, Front Side Member, No.2 RhFRONT SIDE MEMBER, NO.2 RH [11.2007 -] UCK6#,UPK6#,USK6# |
57203-0C010 |
US $57.22 |
||
|
57204A
|
57204A
57204-0C010
Extension Sub-Assy, Front Side Member, No.2 Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
57204-0C010 |
— | ||
|
90105A0098
|
90105A0098
90105-A0098
New Genuine Part
|
90105-A0098 |
— | ||
|
90119A0167
|
90119A0167
90119-A0167
New Genuine Part
|
90119-A0167 |
— | ||
|
90178A0035
|
90178A0035
90178-A0035
New Genuine Part
|
90178-A0035 |
— | ||
|
9008010378
|
9008010378
90080-10378
New Genuine Part
|
90080-10378 |
— | ||
