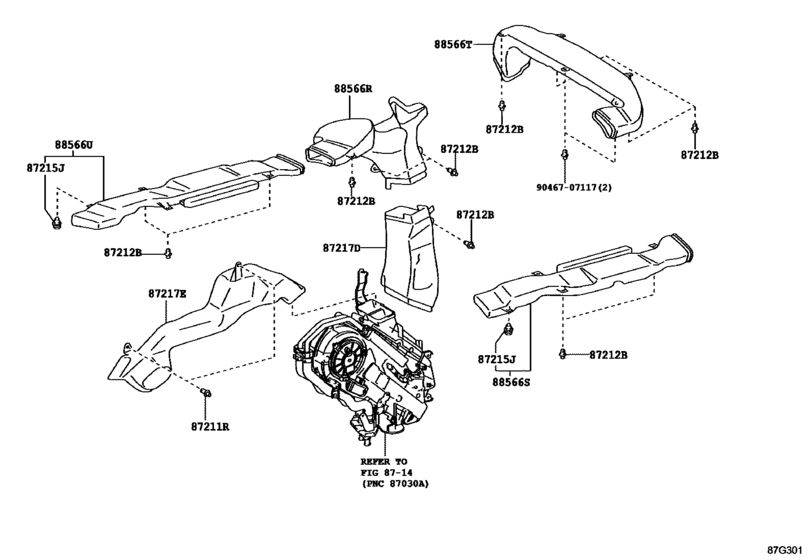

Heating & Air Conditioning - Control & Air Duct ([11.2007 - ] REAR AIR DUCT (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87211R
|
87211R
90467-07117 Clip, Radiator Support To Frame[11.2007 - 11.2009] UCK6#,UPK6#,USK6# |
90467-07117 |
from US $0.92 |
||
|
87211R
|
87211R
90467-A0016-C0
Clip, Radiator Grille
[11.2009 - 06.2017] UPK6#,USK6# BLACK |
90467-A0016-C0 |
— | ||
|
87212B
|
87212B
90467-07117 Clip, Radiator Support To Frame[11.2007 - 11.2009] UCK6#,UPK6#,USK6# |
90467-07117 |
from US $0.92 |
||
|
87212B
|
87212B
90467-A0016-C0
Clip, Radiator Grille
[11.2009 - 06.2017] UPK6#,USK6# BLACK; USK6#..SR5..HTWC DOP-WITH(BACK MONITOR),BLACK |
90467-A0016-C0 |
— | ||
|
87215J
|
87215J
90467-A0006 Clip(For Front Fender Seal)[11.2007 -] UCK6#,UPK6#,USK6# |
90467-A0006 |
US $1.28 |
||
|
87217D
|
87217D
87218-0C030
Duct, Air, Rear Side No.1
[11.2007 -] UCK6#,UPK6#,USK6# |
87218-0C030 |
— | ||
|
87217E
|
87217E
87214-0C020
Duct, Air, Rear Side No.2
[11.2007 -] UCK6#,UPK6#,USK6# |
87214-0C020 |
— | ||
|
88566R
|
88566R
87218-0C020
Duct, Air, Rear Roof No.1
[11.2007 - 08.2014] UCK6#,UPK6#,USK6# |
87218-0C020 |
— | ||
|
88566R
|
88566R
87218-0C040
Duct, Air, Rear Roof No.1
[08.2014 -] USK6#; USK6#..SR5..HTWC DOP-WITH(BACK MONITOR) |
87218-0C040 |
— | ||
|
88566S
|
88566S
87216-0C080
Duct, Air, Rear Roof No.2
[11.2007 -] UCK6#,UPK6#,USK6# |
87216-0C080 |
— | ||
|
88566T
|
88566T
87217-0C040
Duct, Air, Rear Roof No.3
[11.2007 - 04.2009] UCK6#,USK6# |
87217-0C040 |
— | ||
|
88566T
|
88566T
87217-0C050
Duct, Air, Rear Roof No.3
[04.2009 -] UPK6#,USK6#; USK6#..SR5..HTWC DOP-WITH(BACK MONITOR) |
87217-0C050 |
— | ||
|
88566U
|
88566U
87215-0C070
Duct, Air, Rear Roof No.4
[11.2007 -] UCK6#,UPK6#,USK6# |
87215-0C070 |
— | ||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.92 |
