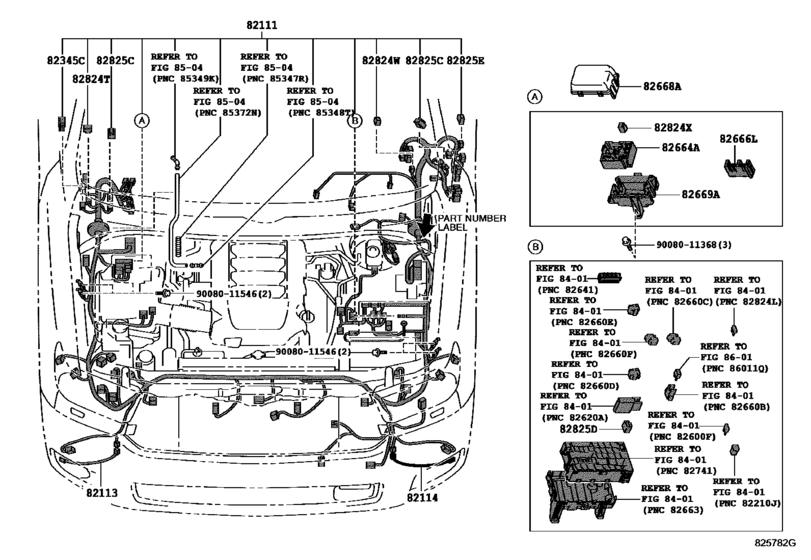

Wiring & Clamp ([11.2007 - ] ENGINE ROOM (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-0C410
Wire, Engine Room Main
[11.2007 - 11.2009] USK65..LIMD..HTWC; USK65..SR5..HTWC LEATHER PACKAGE; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC&TOWING PACKAGE-W |
82111-0C410 |
— | ||
|
82111
|
82111
82111-0C411
Wire, Engine Room Main
[11.2009 - 08.2010] USK65..LIMD..HTWC; USK65..SR5..HTWC LEATHER PACKAGE; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH; USK65..SR5..HTWC LEATHER PACKAGE&COLD AREA SPEC&TOWING PACKAGE-W |
82111-0C411 |
— | ||
|
82111
|
82111
82111-0C412
Wire, Engine Room Main
[08.2010 - 07.2011] USK65..(LIMD,SR5)..HTWC; USK65..(LIMD,SR5)..HTWC PART NUMBER LABEL=82111-0C412 |
82111-0C412 |
— | ||
|
82111
|
82111
82111-0C413
Wire, Engine Room Main
[07.2011 - 08.2013] USK65..(LIMD,SR5)..HTWC; USK65..(LIMD,SR5)..HTWC PART NUMBER LABEL=82111-0C413 |
82111-0C413 |
— | ||
|
82111
|
82111
82111-0C414
Wire, Engine Room Main
[08.2013 -] USK65..(LIMD,SR5)..HTWC; USK65..(LIMD,SR5)..HTWC PART NUMBER LABEL=82111-0C414 |
82111-0C414 |
— | ||
|
82113
|
82113
82113-0C010
Wire, Engine Room, No.3
[11.2007 - 08.2014] UCK6#,UPK6#,USK6#..LIMD,PLAT; UCK6#,UPK6#,USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82113-0C010 |
— | ||
|
82113
|
82113
82113-0C011
Wire, Engine Room, No.3
[08.2014 -] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82113-0C011 |
— | ||
|
82114
|
82114
82114-0C010
Wire, Engine Room, No.4
[11.2007 - 08.2014] UCK6#,UPK6#,USK6#..LIMD,PLAT; UCK6#,UPK6#,USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82114-0C010 |
— | ||
|
82114
|
82114
82114-0C011
Wire, Engine Room, No.4
[08.2014 -] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82114-0C011 |
— | ||
|
82345C
|
82345C
82345-32010 Diode[11.2007 -] UCK6#,UPK6#,USK6# |
82345-32010 |
US $12.06 |
||
|
82664A
|
82664A
82664-0C010
Block, Connector Holder
[11.2007 -] UCK6#,UPK6#,USK6# |
82664-0C010 |
— | ||
|
82666L
|
82666L
82666-0C300
Holder, Connector No.9
[08.2013 -] USK6# |
82666-0C300 |
— | ||
|
82668A
|
82668A
82668-0C010 Cover, Connector Holder Block, UpperCONNECTOR HOLDER BLOCK, UPPER [11.2007 -] UCK6#,UPK6#,USK6# |
82668-0C010 |
US $53.22 |
||
|
82669A
|
82669A
82669-0C020
Cover, Connector Holder Block, Lower
[11.2007 -] UCK6#,UPK6#,USK6# |
82669-0C020 |
— | ||
|
82824T
|
82824T
82824-22070 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-22070 |
US $18.49 |
||
|
82824W
|
82824W
82824-22090 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-22090 |
US $12.96 |
||
|
82824X
|
82824X
82824-28180 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-28180 |
US $6.41 |
||
|
82825C
|
82825C
82824-44020
Connector, Wiring Harness
[11.2007 -] UCK6#,UPK6#,USK6# |
82824-44020 |
— | ||
|
82825D
|
82825D
82824-50110 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-50110 |
US $20.09 |
||
|
82825E
|
82825E
82824-52280 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-52280 |
US $22.57 |
||
|
9008011368
|
9008011368
90080-11368
New Genuine Part
|
90080-11368 |
— | ||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— |
