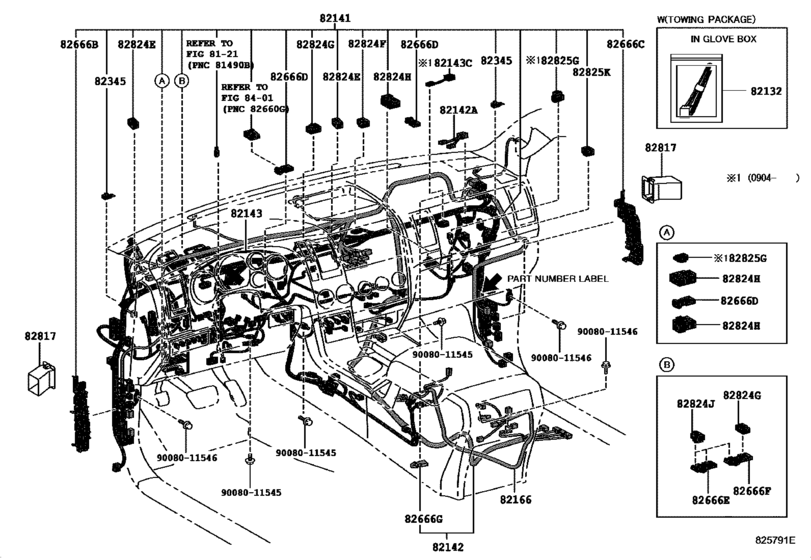

Wiring & Clamp ([11.2007 - ] INSTRUMENT PANEL & CONSOLE BOX (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82132
|
82132
82132-0C010
Wire, Cowl, No.2
[11.2007 -] UCK6#,USK6#..HTWC TOWING PACKAGE-WITH |
82132-0C010 |
— | ||
|
82141
|
82141
82141-0C150
Wire, Instrument Panel
[11.2007 - 04.2009] UCK6#;USK6#..LIMD..HTWC;USK65..(LIMD,SR5)..HTWCF; USK6#..SR5..HTWC D-POWER SEAT PACKAGE; USK6#..SR5..HTWC D-POWER SEAT PACKAGE&COLD AREA SPEC; USK6#..SR5..HTWC D-POWER SEAT PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH; USK6#..SR5..HTWC D |
82141-0C150 |
— | ||
|
82141
|
82141
82141-0C160
Wire, Instrument Panel
[11.2007 - 04.2009] UCK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82141-0C160 |
— | ||
|
82141
|
82141
82141-0C161
Wire, Instrument Panel
[04.2009 - 11.2009] UPK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82141-0C161 |
— | ||
|
82141
|
82141
82141-0C162
Wire, Instrument Panel
[11.2009 - 08.2010] UPK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82141-0C162 |
— | ||
|
82141
|
82141
82141-0C163
Wire, Instrument Panel
[08.2010 - 07.2011] UPK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82141-0C163 |
— | ||
|
82141
|
82141
82141-0C290
Wire, Instrument Panel
[04.2009 - 11.2009] UPK6#,USK6#..LIMD; UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH&REAR SUSPENSION-AIR SUSPEN SION&MOON ROOF-WITH&FRONT FOG LAMP-WITH(CLEAR)&DAYTIME RUNNING LIGHT SYSTEM-WITH&A UDIO-AM/FM 6CD-CHANGER 14SPEAKER |
82141-0C290 |
— | ||
|
82141
|
82141
82141-0C291
Wire, Instrument Panel
[11.2009 - 08.2010] UPK6#,USK6#..LIMD; UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH&MOON ROOF-WITH&FRONT FOG L AMP-WITH(CLEAR)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM 6CD-CHANGER 14SPEAKE R JBL; UPK6#,USK6#..SR5 D-POWER S |
82141-0C291 |
— | ||
|
82141
|
82141
82141-0C292
Wire, Instrument Panel
[08.2010 - 07.2011] UPK6#,USK6#..LIMD; USK6#..SR5 D-POWER SEAT PACKAGE&COLD AREA SPEC&TOWING PACKAGE-WITH&MOON ROOF-WITH&FRONT FOG L AMP-WITH(CLEAR)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM 6CD-CHANGER 14SPEAKE R JBL; USK6#..SR5 D-POWER SEAT PACKAGE& |
82141-0C292 |
— | ||
|
82141
|
82141
82141-0C411
Wire, Instrument Panel
[08.2012 - 08.2013] USK6#..SR5; USK6#..LIMD AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL |
82141-0C411 |
— | ||
|
82141
|
82141
82141-0C412
Wire, Instrument Panel
[08.2013 - 08.2014] USK6#..LIMD,SR5 |
82141-0C412 |
— | ||
|
82141
|
82141
82141-0C413
Wire, Instrument Panel
[08.2014 -] USK6#..LIMD |
82141-0C413 |
— | ||
|
82141
|
82141
82141-0C420
Wire, Instrument Panel
[07.2011 - 08.2012] UPK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82141-0C420 |
— | ||
|
82141
|
82141
82141-0C421
Wire, Instrument Panel
[08.2012 - 08.2013] USK60..LIMD;USK65..LIMD..HTWCF POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE&BLIND SPOT MONITOR-WITH; USK65..LIMD..HTWC POWER MEMORY PACKAGE&B |
82141-0C421 |
— | ||
|
82141
|
82141
82141-0C440
Wire, Instrument Panel
[07.2011 - 08.2012] UPK6#,USK6#..LIMD; UPK6#,USK6#..SR5 AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER |
82141-0C440 |
— | ||
|
82141
|
82141
82141-0C441
Wire, Instrument Panel
[08.2012 - 08.2013] USK6#..LIMD; USK6#..SR5 AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER |
82141-0C441 |
— | ||
|
82141
|
82141
82141-0C520
Wire, Instrument Panel
[08.2012 - 08.2013] USK60..LIMD;USK65..LIMD..HTWCF POWER MEMORY PACKAGE&AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL; USK65..LIMD..HTWC POWER MEMORY PACKAGE&AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL&BLIND SPOT MONITOR-WITH |
82141-0C520 |
— | ||
|
82141
|
82141
82141-0C521
Wire, Instrument Panel
[08.2013 - 08.2014] USK60..LIMD;USK65..LIMD..HTWCF POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE&BLIND SPOT MONITOR-WITH; USK65..LIMD..HTWC POWER MEMORY PACKAGE&B |
82141-0C521 |
— | ||
|
82141
|
82141
82141-0C522
Wire, Instrument Panel
[08.2014 -] USK60..LIMD;USK65..LIMD..HTWCF POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE; USK65..LIMD..HTWC SOUTH AMERICA SPEC&POWER MEMORY PACKAGE&BLIND SPOT MONITOR-WITH; USK65..LIMD..HTWC POWER MEMORY PACKAGE&BLIND SPO |
82141-0C522 |
— | ||
|
82142
|
82142
82142-0C120
Wire, Instrument Panel, No.2
[11.2007 - 04.2009] UCK6#,USK6#..LIMD,PLAT; UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&DOP-WITH(BACK MONITOR)&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL; UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&DOP-WITH(BACK MONITOR)&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL& CLEARANCE & |
82142-0C120 |
— | ||
|
82142
|
82142
82142-0C121
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..LIMD,PLAT |
82142-0C121 |
— | ||
|
82142
|
82142
82142-0C122
Wire, Instrument Panel, No.2
[08.2012 - 08.2013] USK6#..LIMD,PLAT |
82142-0C122 |
— | ||
|
82142
|
82142
82142-0C130
Wire, Instrument Panel, No.2
[11.2007 - 04.2009] UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&DOP-WITH(BACK MONITOR)&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL& REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER; UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&DOP-WITH(BACK MONITOR)&AUDIO-AM/FM 6CD-CHANGER 1 |
82142-0C130 |
— | ||
|
82142
|
82142
82142-0C131
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
82142-0C131 |
— | ||
|
82142
|
82142
82142-0C140
Wire, Instrument Panel, No.2
[11.2007 - 04.2009] UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&AUDIO-AVN AM/FM/CD 14SPEAKER JBL; UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&AUDIO-AVN AM/FM/CD 14SPEAKER JBL&CLEARANCE & BACK SONAR-WITH( FRONT & REAR); UCK6#,USK6#..SR5 LEATHER PACKAGE&AUDIO-AVN AM/FM |
82142-0C140 |
— | ||
|
82142
|
82142
82142-0C141
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..(LIMD,PLAT)..HTWC USA POSSESSION SPEC&AUDIO-AVN AM/FM/CD 14SPEAKER JBL |
82142-0C141 |
— | ||
|
82142
|
82142
82142-0C142
Wire, Instrument Panel, No.2
[08.2012 - 08.2013] USK6#..LIMD,PLAT AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL |
82142-0C142 |
— | ||
|
82142
|
82142
82142-0C143
Wire, Instrument Panel, No.2
[08.2013 -] USK6#..PLAT; USK6#..LIMD AUDIO-AVN WITH(JBL) 14SPEAKER |
82142-0C143 |
— | ||
|
82142
|
82142
82142-0C150
Wire, Instrument Panel, No.2
[11.2007 - 04.2009] UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTA INMENT & DVD PLAYER; UCK6#,USK6#..SR5 D-POWER SEAT PACKAGE&AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTA INMENT & DVD P |
82142-0C150 |
— | ||
|
82142
|
82142
82142-0C151
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..(LIMD,PLAT)..HTWC USA POSSESSION SPEC&AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAI NMENT & DVD PLAYER |
82142-0C151 |
— | ||
|
82142
|
82142
82142-0C152
Wire, Instrument Panel, No.2
[08.2012 - 08.2013] USK6#..LIMD,PLAT AUDIO-AVN AM/FM CD DVD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER |
82142-0C152 |
— | ||
|
82142
|
82142
82142-0C153
Wire, Instrument Panel, No.2
[08.2013 -] USK6#..PLAT..HTWC USA POSSESSION SPEC; USK60..PLAT MEXICO SPEC; USK60..LIMD MEXICO SPEC&AUDIO-AVN WITH(JBL) 14SPEAKER; USK6#..LIMD..HTWC USA POSSESSION SPEC&AUDIO-AVN WITH(JBL) 14SPEAKER |
82142-0C153 |
— | ||
|
82142
|
82142
82142-0C190
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..LIMD,PLAT AUDIO-AVN AM/FM/CD 14SPEAKER JBL |
82142-0C190 |
— | ||
|
82142
|
82142
82142-0C200
Wire, Instrument Panel, No.2
[04.2009 - 08.2012] UPK6#,USK6#..LIMD,PLAT AUDIO-AVN AM/FM/CD 14SPEAKER JBL&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
82142-0C200 |
— | ||
|
82142
|
82142
82142-0C231
Wire, Instrument Panel, No.2
[08.2013 -] USK6#..LIMD..HTWC USA POSSESSION SPEC; USK60..LIMD MEXICO SPEC; USK65..LIMD..HTWC SOUTH AMERICA SPEC; USK6#..PLAT..HTWC USA POSSESSION SPEC&AUDIO-*DA(DELUXE) 12SPEAKER; USK60..PLAT MEXICO SPEC&AUDIO-*DA(DELUXE) 12SPEAKER; USK65..PLAT..HTWC SOU |
82142-0C231 |
— | ||
|
82142
|
82142
82142-0C281
Wire, Instrument Panel, No.2
[08.2013 -] USK6#..LIMD; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER; USK6#..PLAT AUDIO-AVN 12SPEAKER |
82142-0C281 |
— | ||
|
82142A
|
82142A
82140-0C020 Wire, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [11.2007 -] UCK6#,UPK6#,USK6# |
82140-0C020 |
US $7.28 |
||
|
82143
|
82143
82143-0C030
Wire, Instrument Panel, No.3
[11.2007 -] UCK6#,UPK6#,USK6#..LIMD; UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE; UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE&COLD AREA SPEC; UCK6#,UPK6#,USK6#..SR5 D-POWER SEAT PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT & REAR); UCK6#,UPK6# |
82143-0C030 |
— | ||
|
82143
|
82143
82143-0C040
Wire, Instrument Panel, No.3
[11.2007 -] USK6#..PLAT; UCK6#,UPK6#,USK6#..LIMD POWER MEMORY PACKAGE |
82143-0C040 |
— | ||
|
82143C
|
82143C
82140-0C030
Wire, Instrument Panel, No.3
[04.2009 -] UPK6#,USK6# |
82140-0C030 |
— | ||
|
82166
|
82166
82166-0C150
Wire, Console Box
[11.2007 -] UCK6#,UPK6#,USK6# |
82166-0C150 |
— | ||
|
82166
|
82166
82166-0C160
Wire, Console Box
[11.2007 - 08.2010] UCK6#,UPK6#,USK6# REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
82166-0C160 |
— | ||
|
82166
|
82166
82166-0C161
Wire, Console Box
[08.2010 - 08.2012] UPK6#,USK6#..LIMD,PLAT REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER |
82166-0C161 |
— | ||
|
82345
|
82345
82345-32010 Diode[11.2007 -] UCK6#,UPK6#,USK6# |
82345-32010 |
US $12.06 |
||
|
82666B
|
82666B
82666-0C240
Holder, Connector No.3
[11.2007 -] UCK6#,UPK6#,USK6# |
82666-0C240 |
— | ||
|
82666C
|
82666C
82666-0C250
Holder, Connector No.4
[11.2007 -] UCK6#,UPK6#,USK6# |
82666-0C250 |
— | ||
|
82666D
|
82666D
82666-20270 Holder, Connector No.2[11.2007 -] UCK6#;UPK6#,USK6#..LIMD |
82666-20270 |
US $2.91 |
||
|
82666E
|
82666E
82666-60220 Holder, Connector No.3[11.2007 -] UCK6#,UPK6#,USK6# |
82666-60220 |
US $2.33 |
||
|
82666F
|
82666F
82666-60310 Holder, Connector No.7[11.2007 -] UCK6#,UPK6#,USK6# |
82666-60310 |
US $2.91 |
||
|
82666G
|
82666G
82666-20270 Holder, Connector No.2[11.2007 -] UCK6#,UPK6#,USK6# |
82666-20270 |
US $2.91 |
||
|
82817
|
82817
82817-0C120
Protector, Wiring Harness, No.1
[11.2007 -] UCK6#,UPK6#,USK6# |
82817-0C120 |
— | ||
|
82824E
|
82824E
82824-22060 Connector, Wiring Harness[11.2007 - 08.2012] USK6#..LIMD,PLAT |
82824-22060 |
US $15.87 |
||
|
82824F
|
82824F
82824-22070 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-22070 |
US $18.49 |
||
|
82824G
|
82824G
82824-44030 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-44030 |
US $5.53 |
||
|
82824H
|
82824H
82824-48080 Connector, Wiring Harness[04.2009 - 08.2010] UPK6#,USK6# |
82824-48080 |
US $15.52 |
||
|
82824J
|
82824J
82824-52280 Connector, Wiring Harness[11.2007 -] UCK6#,UPK6#,USK6# |
82824-52280 |
US $22.57 |
||
|
82825G
|
82825G
82824-50340 Connector, Wiring Harness[04.2009 - 08.2012] UPK6#,USK6#..LIMD,PLAT; UPK6#,USK6#..SR5 AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER |
82824-50340 |
US $15.14 |
||
|
82825K
|
82825K
82824-50350 Connector, Wiring Harness[08.2010 - 08.2012] UPK6#,USK6# |
82824-50350 |
US $15.14 |
||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— |
