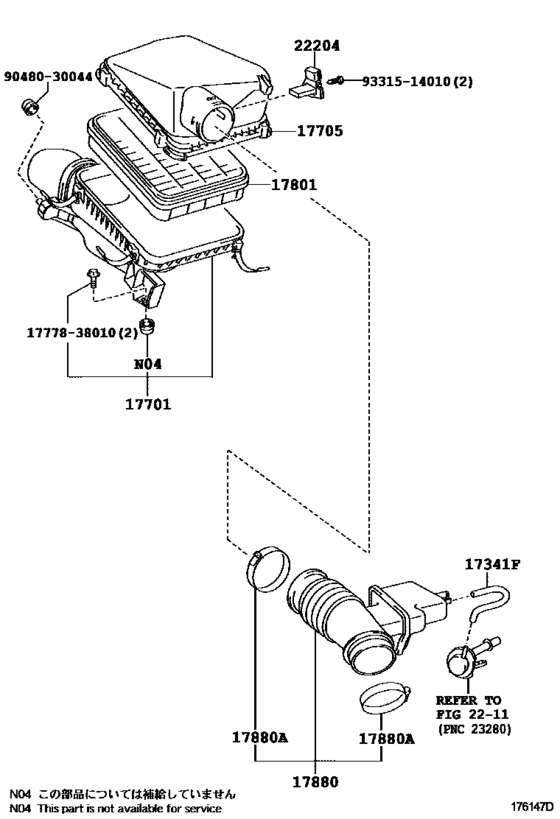

Air Cleaner ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-38060 Hose, Air, No.1AIR, NO.1 [11.2008 - 09.2016] 3URFE..USK6# |
17341-38060 |
US $6.29 |
||
|
17701
|
17701
17701-0S010 Case Sub-Assy, Air CleanerAIR CLEANER [11.2008 - 09.2016] 3URFE..USK6# |
17701-0S010 |
US $181.71 |
||
|
17705
|
17705
17735-0S010
Cap Sub-Assy, Air Cleaner
[11.2009 - 09.2016] 3URFE..USK6# |
17735-0S010 |
— | ||
|
17801
|
17801
17801-0S010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [11.2008 - 09.2016] 3URFE..USK6# |
17801-0S010 |
from US $54.80 |
||
|
17880
|
17880
17880-0S010 Hose Assy, Air CleanerAIR CLEANER [11.2008 - 09.2016] 3URFE..USK6# |
17880-0S010 |
US $56.78 |
||
|
17880A
|
17880A
90460-A0001
Clamp, Hose
[11.2008 - 09.2016] 3URFE..USK6# |
90460-A0001 |
— | ||
|
22204
|
22204
22204-0F030
Meter Sub-Assy, Intake Air Flow
[11.2008 - 09.2016] 3URFE..USK6# |
22204-0F030 |
— | ||
|
1777838010
|
1777838010
17778-38010
BOLT AIR CLEANER
|
17778-38010 |
— | ||
|
9048030044
|
9048030044
90480-30044 GROMMET |
90480-30044 |
from US $2.46 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
