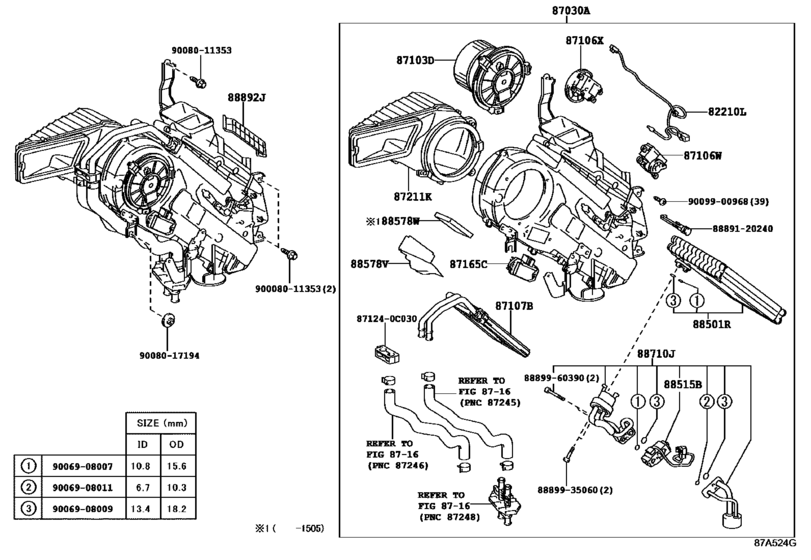

Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210L
|
82210L
82210-0C030
Harness Assy, Air Conditioner, No.2
[11.2008 - 09.2016] USK6# |
82210-0C030 |
— | ||
|
87030A
|
87030A
87030-0C040
Unit Assy, Cooling, Rear
[11.2008 - 09.2016] USK6# |
87030-0C040 |
— | ||
|
87103D
|
87103D
87103-0C060
Motor Sub-Assy, Blower W/fan(For Rear)
[11.2008 - 11.2010] USK6# |
87103-0C060 |
— | ||
| replacement | |||||
|
87103D
|
87103D
87103-0C061 Motor Sub-Assy, Blower W/fan(For Rear)[11.2008 - 11.2010] USK6# |
87103-0C061 |
from US $167.44 |
||
|
87103D
|
87103D
87103-0C061 Motor Sub-Assy, Blower W/fan(For Rear)[12.2010 - 09.2016] USK6# |
87103-0C061 |
from US $167.44 |
||
|
87106W
|
87106W
87106-0C130
Damper Servo Sub-Assy, Rear Cooling Unit, No.2
[11.2008 - 09.2016] USK6# |
87106-0C130 |
— | ||
|
87106X
|
87106X
87106-0C120
Damper Servo Sub-Assy, Rear Cooling Unit, No.1
[11.2008 - 09.2016] USK6# |
87106-0C120 |
— | ||
|
87107B
|
87107B
87107-0C061
Unit Sub-Assy, Heater Radiator
[11.2008 - 09.2016] USK6# |
87107-0C061 |
— | ||
|
87165C
|
87165C
87165-28020 Control, Blower Motor[11.2008 - 09.2016] USK6# |
87165-28020 |
US $125.80 |
||
|
87211K
|
87211K
87201-0C060
Duct, Air
[11.2008 - 09.2016] USK6# |
87201-0C060 |
— | ||
|
88501R
|
88501R
88501-0C080 Evaporator Sub-Assy (Rear)[11.2008 - 09.2016] USK6# |
88501-0C080 |
US $431.50 |
||
|
88515B
|
88515B
88515-60220 Valve, Rear Cooling Unit Expansion[11.2008 - 09.2016] USK6# |
88515-60220 |
from US $139.78 |
||
|
88578V
|
88578V
88578-0C130
Packing, Cooling Unit, No.2
[11.2008 - 07.2011] USK6# |
88578-0C130 |
— | ||
|
88578V
|
88578V
88578-0E060
Packing, Cooling Unit, No.2
[07.2011 - 09.2016] USK6# |
88578-0E060 |
— | ||
|
88578W
|
88578W
88578-0C140
Packing, Cooling Unit, No.1
[11.2008 - 05.2015] USK6# |
88578-0C140 |
— | ||
|
88710J
|
88710J
88710-0C210
Tube, Air Conditioner Connector
[11.2008 - 09.2016] USK6# |
88710-0C210 |
— | ||
|
88892J
|
88892J
88892-0C030
Cover Sub-Assy
[11.2008 - 09.2016] USK6# |
88892-0C030 |
— | ||
|
871240C030
|
871240C030
87124-0C030
Clamp, Heater
|
87124-0C030 |
— | ||
|
8889120240
|
8889120240
88891-20240
Cover, Cooler, No.1
|
88891-20240 |
— | ||
|
8889935060
|
8889935060
88899-35060
Cover, Evaporator
|
88899-35060 |
— | ||
|
8889960390
|
8889960390
88899-60390
Cover, Evaporator
|
88899-60390 |
— | ||
|
9006908007
|
9006908007
90069-08007 AC ORING |
90069-08007 |
US $4.66 |
||
|
9006908009
|
9006908009
90069-08009 GASKET |
90069-08009 |
US $4.66 |
||
|
9006908011
|
9006908011
90069-08011 AC ORING |
90069-08011 |
US $4.22 |
||
|
9008011353
|
9008011353
90080-11353 New Genuine Part |
90080-11353 |
US $1.46 |
||
|
9008017194
|
9008017194
90080-17194
New Genuine Part
|
90080-17194 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.86 |
||
