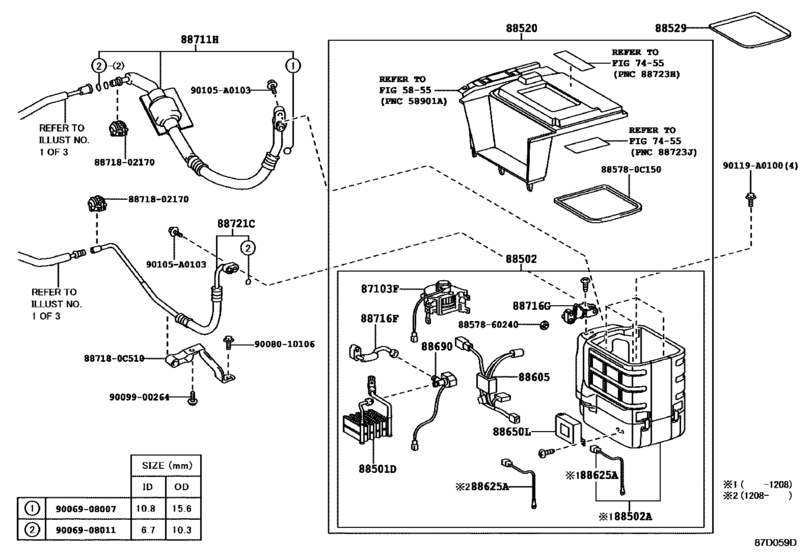

Heating & Air Conditioning - Cooler Unit ([08.2010 - ] COOL BOX (1008- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103F
|
87103F
87103-60450 Motor Sub-Assy, Blower W/fan(For Cool Box)BLOWER W/FAN(FOR COOL BOX) [08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
87103-60450 |
US $125.80 |
||
|
87103F
|
87103F
87103-60451 Motor Sub-Assy, Blower W/fan(For Cool Box)[08.2012 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
87103-60451 |
US $73.91 |
||
|
88501D
|
88501D
88501-0C100
Evaporator Sub-Assy, Cooler, No.2
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88501-0C100 |
— | ||
|
88502
|
88502
88502-0C030
Case Sub-Assy, Cooling Unit
[08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88502-0C030 |
— | ||
|
88502
|
88502
88530-0C010
Case Sub-Assy, Cooling Unit
[08.2012 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88530-0C010 |
— | ||
|
88502A
|
88502A
88502-0C020
Case Sub-Assy, Cooling Unit
[08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88502-0C020 |
— | ||
|
88520
|
88520
88520-0C010
Box Assy, Cooling
[08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88520-0C010 |
— | ||
|
88520
|
88520
88520-0C020
Box Assy, Cooling
[08.2012 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88520-0C020 |
— | ||
|
88529
|
88529
88529-0C010
Tray, Cooling Box
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88529-0C010 |
— | ||
|
88605
|
88605
88605-0C010
Harness Sub-Assy, Cooler Wiring, No.1
[08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88605-0C010 |
— | ||
|
88605
|
88605
88608-0C010
Harness Sub-Assy, Cooler Wiring, No.1
[08.2012 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88608-0C010 |
— | ||
|
88625A
|
88625A
88625-60070 Thermistor, Cooler No.2[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88625-60070 |
US $10.31 |
||
|
88650L
|
88650L
88650-0C220
Amplifier Assy, Air Conditioner (For Cool Box)
[08.2010 - 08.2012] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88650-0C220 |
— | ||
|
88650L
|
88650L
88950-0C010
Amplifier Assy, Air Conditioner (For Cool Box)
[08.2012 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88950-0C010 |
— | ||
|
88690
|
88690
88690-60280 Valve Assy, Cooler Magnet[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88690-60280 |
US $180.22 |
||
|
88711H
|
88711H
88711-0C170
Hose, Discharge
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88711-0C170 |
— | ||
|
88716F
|
88716F
88716-0C330
Pipe, Cooler Refrigerant Liquid, F
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88716-0C330 |
— | ||
|
88716G
|
88716G
88716-0C340
Pipe, Cooler Refrigerant Liquid, G
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88716-0C340 |
— | ||
|
88721C
|
88721C
88721-0C010
Hose, Liquid
[08.2010 - 09.2016] USK6#..PLAT; USK6#..LIMD,SR5 COOL BOX-WITH |
88721-0C010 |
— | ||
|
90105A0103
|
90105A0103
90105-A0103
Bolt(For Camshaft Housing Set)
|
90105-A0103 |
— | ||
|
90119A0100
|
90119A0100
90119-A0100
New Genuine Part
|
90119-A0100 |
— | ||
|
885780C150
|
885780C150
88578-0C150 Paking, Cooler Air Duct |
88578-0C150 |
US $4.56 |
||
|
887180C510
|
887180C510
88718-0C510
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0C510 |
— | ||
|
8857860240
|
8857860240
88578-60240
Packing, Cool Box, No.2
|
88578-60240 |
— | ||
|
8871802170
|
8871802170
88718-02170
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-02170 |
— | ||
|
9006908007
|
9006908007
90069-08007 AC ORING |
90069-08007 |
US $4.66 |
||
|
9006908011
|
9006908011
90069-08011 AC ORING |
90069-08011 |
US $4.22 |
||
|
9008010106
|
9008010106
90080-10106
New Genuine Part
|
90080-10106 |
— | ||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— |
