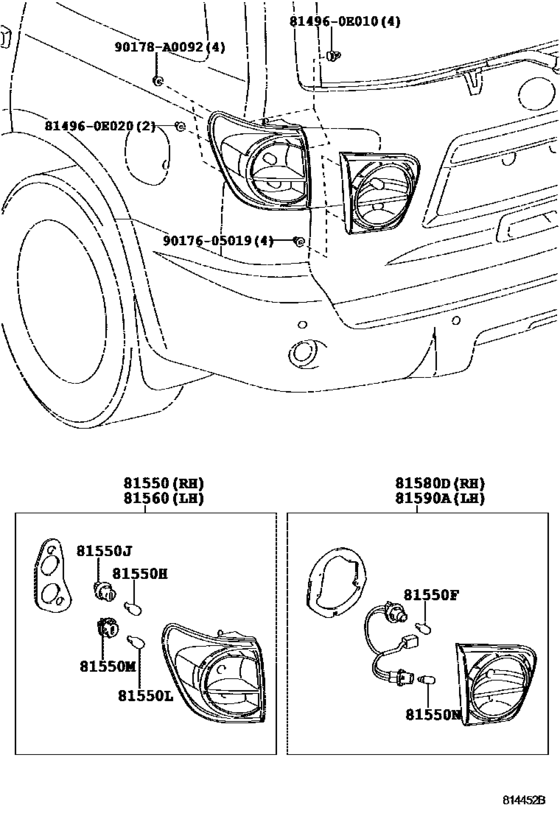

Rear Combination Lamp ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0C080 Lamp Assy, Rear Combination, Rh[11.2008 - 09.2016] USK6# |
81550-0C080 |
US $354.33 |
||
|
81550F
|
81550F
99132-11038
Bulb(For Rear Combination Lamp)
[11.2008 - 09.2016] USK6# |
99132-11038 |
— | ||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[11.2008 - 09.2016] USK6# |
90981-13044 |
from US $3.65 |
||
|
81550J
|
81550J
90075-60002 Socket, Tail & Stop Lamp[11.2008 - 09.2016] USK6# |
90075-60002 |
from US $4.10 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[11.2008 - 09.2016] USK6# |
90981-15011 |
from US $4.60 |
||
|
81550M
|
81550M
90075-60026 Socket, Front Turn Signal Lamp[11.2008 - 09.2016] USK6# |
90075-60026 |
from US $7.22 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2008 - 09.2016] USK6# |
90981-11059 |
from US $3.20 |
||
|
81560
|
81560
81560-0C080 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [11.2008 - 09.2016] USK6# |
81560-0C080 |
from US $152.94 |
||
|
81580D
|
81580D
81580-0C030 Lamp Assy, Rear, RhREAR, RH [11.2008 - 09.2016] USK6# |
81580-0C030 |
from US $142.58 |
||
|
81590A
|
81590A
81590-0C030 Lamp Assy, Rear, LhREAR, LH [11.2008 - 09.2016] USK6# |
81590-0C030 |
from US $143.23 |
||
|
90178A0092
|
90178A0092
90178-A0092 NUT FLANGE |
90178-A0092 |
US $0.73 |
||
|
814960E010
|
814960E010
81496-0E010
Guide, Rear Combination Lamp
|
81496-0E010 |
— | ||
|
814960E020
|
814960E020
81496-0E020
Guide Sub-Assy, Rear Door Window, Rear Rh
|
81496-0E020 |
— | ||
|
9017605019
|
9017605019
90176-05019 NUT CAP |
90176-05019 |
US $1.60 |
