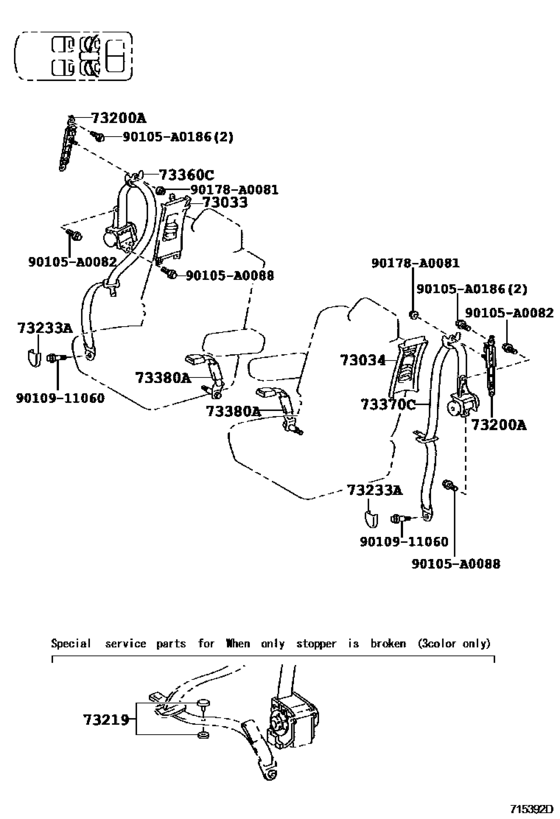

Seat Belt ([11.2008 - ] REAR NO.1 SEAT - 7S (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73033
|
73033
73033-0C020-C0
Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh
[11.2008 - 06.2011] USK6#..PLAT BLACK,TRIM1#,2#,44; USK6#..LIMD,SR5 BLACK,TRIM1#,44; USK6#..LIMD POWER BACK DOOR-WITH,BLACK,TRIM1#,44 |
73033-0C020-C0 |
— | ||
|
73033
|
73033
73033-0C020-E0
Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh
[11.2008 - 06.2011] USK6# DK. BROWN,TRIM44; USK6#..LIMD POWER BACK DOOR-WITH,DK. BROWN,TRIM44 |
73033-0C020-E0 |
— | ||
|
73034
|
73034
73034-0C020-C0
Plate Sub-Assy, Rear Shoulder Belt Anchor, Lh
[11.2008 - 06.2011] USK6#..PLAT BLACK,TRIM1#,2#,44; USK6#..LIMD,SR5 BLACK,TRIM1#,44; USK6#..LIMD POWER BACK DOOR-WITH,BLACK,TRIM1#,44 |
73034-0C020-C0 |
— | ||
|
73034
|
73034
73034-0C020-E0
Plate Sub-Assy, Rear Shoulder Belt Anchor, Lh
[11.2008 - 06.2011] USK6# DK. BROWN,TRIM44; USK6#..LIMD POWER BACK DOOR-WITH,DK. BROWN,TRIM44 |
73034-0C020-E0 |
— | ||
|
73200A
|
73200A
73200-06040 Adjuster Assy, Front Shoulder Belt AnchorFRONT SHOULDER BELT ANCHOR [11.2008 - 10.2012] USK6# |
73200-06040 |
from US $44.99 |
||
|
73200A
|
73200A
73200-0C020 Adjuster Assy, Front Shoulder Belt Anchor[11.2012 - 09.2016] USK6# |
73200-0C020 |
US $36.66 |
||
|
73219
|
73219
73219-02010 Stopper, Tongue PlateTONGUE PLATE [11.2008 - 09.2016] USK6# BLACK |
73219-02010 |
US $1.28 |
||
|
73219
|
73219
73219-02020 Stopper, Tongue PlateTONGUE PLATE [11.2008 - 09.2016] USK6# GRAY |
73219-02020 |
US $1.02 |
||
|
73219
|
73219
73219-02030 Stopper, Tongue PlateTONGUE PLATE [11.2008 - 09.2016] USK6# BEIGE |
73219-02030 |
from US $0.94 |
||
|
73233A
|
73233A
73233-0C010-C0
Cover, Lap Belt Outer Anchor
[11.2008 - 06.2011] USK6#..PLAT BLACK,TRIM1#,2#,44; USK60..LIMD;USK65..LIMD,SR5 BLACK,TRIM1#,44 |
73233-0C010-C0 |
— | ||
|
73233A
|
73233A
73233-0C010-E0
Cover, Lap Belt Outer Anchor
[11.2008 - 06.2011] USK65;USK60..LIMD,PLAT DK. BROWN,TRIM44 |
73233-0C010-E0 |
— | ||
|
73360C
|
73360C
73360-0C091-B0
Belt Assy, Rear No.1 Seat, Outer Rh
[11.2008 - 09.2011] USK6#..SR5 GRAY,TRIM1# |
73360-0C091-B0 |
— | ||
| replacement | |||||
|
73360C
|
73360C
73360-0C091-B1
Belt Assy, Rear No.1 Seat, Outer Rh
[11.2008 - 09.2011] USK6#..SR5 GRAY,TRIM1# |
73360-0C091-B1 |
— | ||
|
73360C
|
73360C
73360-0C091-B1
Belt Assy, Rear No.1 Seat, Outer Rh
[09.2011 - 09.2016] USK6#..SR5 GRAY,TRIM1# |
73360-0C091-B1 |
— | ||
|
73360C
|
73360C
73360-0C091-E1
Belt Assy, Rear No.1 Seat, Outer Rh
[11.2008 - 09.2011] USK6#..SR5 IVORY,TRIM4# |
73360-0C091-E1 |
— | ||
|
73360C
|
73360C
73360-0C091-E2
Belt Assy, Rear No.1 Seat, Outer Rh
[09.2011 - 09.2016] USK6#..SR5 SAND BEIGE,TRIM4# |
73360-0C091-E2 |
— | ||
|
73370C
|
73370C
73370-0C071-B0
Belt Assy, Rear No.1 Seat, Outer Lh
[11.2008 - 09.2011] USK6#..SR5 GRAY,TRIM1# |
73370-0C071-B0 |
— | ||
| replacement | |||||
|
73370C
|
73370C
73370-0C071-B1 Belt Assy, Rear No.1 Seat, Outer Lh[11.2008 - 09.2011] USK6#..SR5 GRAY,TRIM1# |
73370-0C071-B1 |
US $200.93 |
||
|
73370C
|
73370C
73370-0C071-B1 Belt Assy, Rear No.1 Seat, Outer Lh[09.2011 - 09.2016] USK6#..SR5 GRAY,TRIM1# |
73370-0C071-B1 |
US $200.93 |
||
|
73370C
|
73370C
73370-0C071-E1 Belt Assy, Rear No.1 Seat, Outer Lh[11.2008 - 09.2011] USK6#..SR5 IVORY,TRIM4# |
73370-0C071-E1 |
US $266.45 |
||
|
73370C
|
73370C
73370-0C071-E2
Belt Assy, Rear No.1 Seat, Outer Lh
[09.2011 - 09.2016] USK6#..SR5 SAND BEIGE,TRIM4# |
73370-0C071-E2 |
— | ||
|
73380A
|
73380A
73380-0C050-B0
Belt Assy, Rear Seat, Inner
[11.2008 - 09.2016] USK6# GRAY,TRIM1# |
73380-0C050-B0 |
— | ||
|
73380A
|
73380A
73380-0C050-E2
Belt Assy, Rear Seat, Inner
[11.2008 - 09.2016] USK6# IVORY,TRIM4# |
73380-0C050-E2 |
— | ||
|
90105A0082
|
90105A0082
90105-A0082
New Genuine Part
|
90105-A0082 |
— | ||
|
90105A0088
|
90105A0088
90105-A0088
New Genuine Part
|
90105-A0088 |
— | ||
|
90105A0186
|
90105A0186
90105-A0186 New Genuine Part |
90105-A0186 |
US $2.97 |
||
|
90178A0081
|
90178A0081
90178-A0081
New Genuine Part
|
90178-A0081 |
— | ||
|
9010911060
|
9010911060
90109-11060 BOLT |
90109-11060 |
US $4.16 |
||
