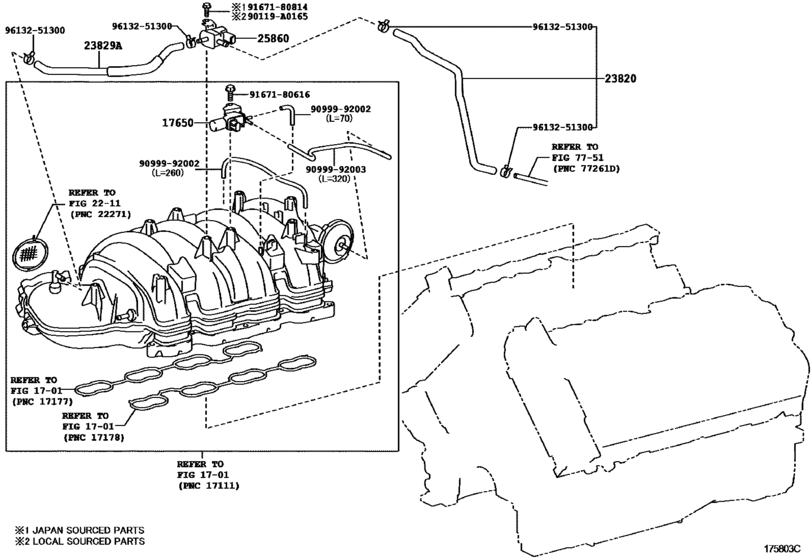

Vacuum Piping ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
25860-0S010
Valve Assy, Vacuum Switching
[11.2008 - 09.2016] 3URFE..USK6# |
25860-0S010 |
— | ||
|
23820
|
23820
23820-0S010
Hose Assy, Fuel Vapor Feed
[11.2008 - 09.2011] 3URFE..USK6# |
23820-0S010 |
— | ||
|
23820
|
23820
23820-0S030
Hose Assy, Fuel Vapor Feed
[09.2011 - 09.2016] 3URFE..USK6# |
23820-0S030 |
— | ||
|
23829A
|
23829A
23829-0S010
Hose, Fuel Vapor Feed
[08.2013 - 09.2016] 3URFE..USK6# (L) |
23829-0S010 |
— | ||
|
23829A
|
23829A
23829-38010 Hose, Fuel Vapor FeedFUEL VAPOR FEED [11.2008 - 08.2013] 3URFE..USK6# |
23829-38010 |
from US $19.56 |
||
|
25860
|
25860
25860-0S020
Valve Assy, Vacuum Switching, No.1
[12.2008 - 09.2016] 3URFE..USK6# (L) |
25860-0S020 |
— | ||
|
25860
|
25860
25860-31060 Valve Assy, Vacuum Switching, No.1[12.2008 - 09.2016] 3URFE..USK6# (J) |
25860-31060 |
from US $58.19 |
||
|
90119A0165
|
90119A0165
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.28 |
||
| replacement | |||||
|
9167180814
|
9167180814
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
