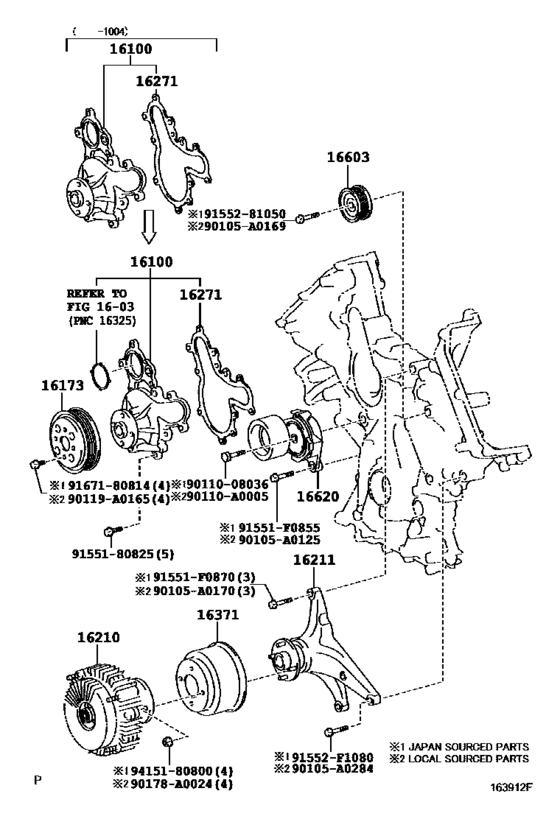

Water Pump ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09490
Pump Assy, Engine Water
[11.2008 - 04.2010] 3URFE..USK6# (L) |
16100-09490 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-09491
Pump Assy, Engine Water
[11.2008 - 04.2010] 3URFE..USK6# (L) |
16100-09491 |
— | ||
|
16100
|
16100
16100-09491
Pump Assy, Engine Water
[04.2010 - 09.2016] 3URFE..USK6# (L) |
16100-09491 |
— | ||
|
16100
|
16100
16100-39495 Pump Assy, Engine WaterWATER [11.2008 - 04.2010] 3URFE..USK6# (J) |
16100-39495 |
US $232.96 |
||
| replacement | |||||
|
16100
|
16100
16100-39496 Pump Assy, Engine WaterWATER [11.2008 - 04.2010] 3URFE..USK6# (J) |
16100-39496 |
from US $164.81 |
||
|
16100
|
16100
16100-39496 Pump Assy, Engine WaterWATER [04.2010 - 09.2016] 3URFE..USK6# (J) |
16100-39496 |
from US $164.81 |
||
|
16173
|
16173
16173-0S010
Pulley, Water Pump
[08.2013 - 09.2016] 3URFE..USK6# (L) |
16173-0S010 |
— | ||
|
16173
|
16173
16173-38030 Pulley, Water PumpWATER PUMP [11.2008 - 08.2013] 3URFE..USK6# |
16173-38030 |
from US $43.85 |
||
|
16210
|
16210
16210-38070
Coupling Assy, Fluid
[11.2008 - 10.2014] 3URFE..USK6# |
16210-38070 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-38071 Coupling Assy, Fluid[11.2008 - 10.2014] 3URFE..USK6# |
16210-38071 |
from US $262.12 |
||
|
16210
|
16210
16210-38071 Coupling Assy, Fluid[11.2014 - 09.2016] 3URFE..USK6# |
16210-38071 |
from US $262.12 |
||
|
16211
|
16211
16380-0S010 Bracket, Fluid Coupling[11.2008 - 09.2016] 3URFE..USK6# (L) |
16380-0S010 |
US $262.08 |
||
|
16211
|
16211
16380-38010 Bracket, Fluid CouplingFLUID COUPLING [11.2008 - 09.2016] 3URFE..USK6# (J) |
16380-38010 |
from US $205.20 |
||
|
16271
|
16271
16271-38020 Gasket, Water PumpWATER PUMP [11.2008 - 09.2016] 3URFE..USK6# |
16271-38020 |
from US $5.81 |
||
|
16371
|
16371
16371-38010 Pulley, FanFAN [11.2008 - 09.2016] 3URFE..USK6# |
16371-38010 |
from US $26.03 |
||
|
16603
|
16603
16603-38010 Pulley Sub-Assy, Idler, No.1IDLER, NO.1 [11.2008 - 12.2012] 3URFE..USK6# |
16603-38010 |
US $96.10 |
||
| replacement | |||||
|
16603
|
16603
16603-38011
Pulley Sub-Assy, Idler, No.1
[11.2008 - 12.2012] 3URFE..USK6# |
16603-38011 |
— | ||
| replacement | |||||
|
16603
|
16603
16603-38012 PULLEY SUBASSY[11.2008 - 12.2012] 3URFE..USK6# |
16603-38012 |
from US $55.17 |
||
|
16603
|
16603
16603-38011
Pulley Sub-Assy, Idler, No.1
[12.2012 - 09.2016] 3URFE..USK6# |
16603-38011 |
— | ||
| replacement | |||||
|
16603
|
16603
16603-38012 PULLEY SUBASSY[12.2012 - 09.2016] 3URFE..USK6# |
16603-38012 |
from US $55.17 |
||
|
16620
|
16620
16620-0S010
Tensioner Assy, V-Ribbed Belt
[11.2008 - 09.2012] 3URFE..USK6# |
16620-0S010 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0S011
Tensioner Assy, V-Ribbed Belt
[11.2008 - 09.2012] 3URFE..USK6# |
16620-0S011 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0S012 Tensioner Assy[11.2008 - 09.2012] 3URFE..USK6# |
16620-0S012 |
from US $70.45 |
||
|
16620
|
16620
16620-0S011
Tensioner Assy, V-Ribbed Belt
[09.2012 - 09.2016] 3URFE..USK6# |
16620-0S011 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0S012 Tensioner Assy[09.2012 - 09.2016] 3URFE..USK6# |
16620-0S012 |
from US $70.45 |
||
|
90105A0125
|
90105A0125
90105-A0125
Bolt(For Cylinder Head Set Sub)
|
90105-A0125 |
— | ||
|
90105A0169
|
90105A0169
90105-A0169
New Genuine Part
|
90105-A0169 |
— | ||
|
90105A0170
|
90105A0170
90105-A0170
New Genuine Part
|
90105-A0170 |
— | ||
|
90105A0284
|
90105A0284
90105-A0284
New Genuine Part
|
90105-A0284 |
— | ||
|
90110A0005
|
90110A0005
90110-A0005
New Genuine Part
|
90110-A0005 |
— | ||
|
90119A0165
|
90119A0165
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.96 |
||
|
91551F0870
|
91551F0870
91551-F0870 BOLT FLANGE |
91551-F0870 |
US $1.60 |
||
|
91552F1080
|
91552F1080
91552-F1080 BOLT FLANGE |
91552-F1080 |
US $3.04 |
||
|
9011008036
|
9011008036
90110-08036 Bolt (For Rear Propeller Shaft) |
90110-08036 |
US $1.60 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.31 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.28 |
||
| replacement | |||||
|
9167180814
|
9167180814
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
