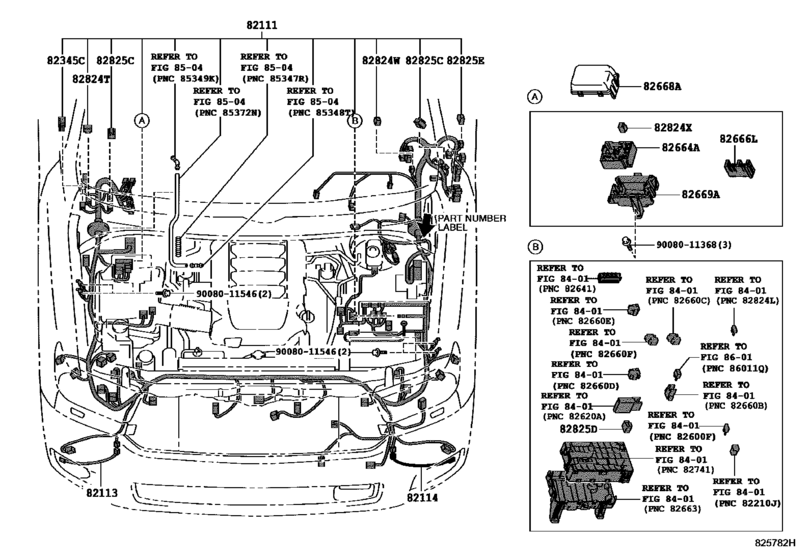

Wiring & Clamp ([11.2008 - ] ENGINE ROOM (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-0CA90
Wire, Engine Room Main
[11.2009 - 08.2010] USK65..LIMD,SR5 |
82111-0CA90 |
— | ||
|
82111
|
82111
82111-0CA91
Wire, Engine Room Main
[08.2010 - 07.2011] USK65..LIMD,SR5 |
82111-0CA91 |
— | ||
|
82111
|
82111
82111-0CA92
Wire, Engine Room Main
[07.2011 - 08.2013] USK65..LIMD,SR5 |
82111-0CA92 |
— | ||
|
82111
|
82111
82111-0CA93
Wire, Engine Room Main
[08.2013 - 09.2016] USK65..LIMD,SR5 |
82111-0CA93 |
— | ||
|
82113
|
82113
82113-0C010
Wire, Engine Room, No.3
[11.2008 - 08.2014] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82113-0C010 |
— | ||
|
82113
|
82113
82113-0C011
Wire, Engine Room, No.3
[08.2014 - 09.2016] USK6# |
82113-0C011 |
— | ||
|
82114
|
82114
82114-0C010
Wire, Engine Room, No.4
[11.2008 - 08.2014] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
82114-0C010 |
— | ||
|
82114
|
82114
82114-0C011
Wire, Engine Room, No.4
[08.2014 - 09.2016] USK6# |
82114-0C011 |
— | ||
|
82345C
|
82345C
82345-32010 Diode[11.2008 - 09.2016] USK6# |
82345-32010 |
US $12.06 |
||
|
82664A
|
82664A
82664-0C010
Block, Connector Holder
[11.2008 - 09.2016] USK6# |
82664-0C010 |
— | ||
|
82666L
|
82666L
82666-0C300
Holder, Connector No.9
[08.2013 - 09.2016] USK6# |
82666-0C300 |
— | ||
|
82668A
|
82668A
82668-0C010 Cover, Connector Holder Block, UpperCONNECTOR HOLDER BLOCK, UPPER [11.2008 - 09.2016] USK6# |
82668-0C010 |
US $53.22 |
||
|
82669A
|
82669A
82669-0C020
Cover, Connector Holder Block, Lower
[11.2008 - 09.2016] USK6# |
82669-0C020 |
— | ||
|
82824T
|
82824T
82824-22070 Connector, Wiring Harness[11.2008 - 09.2016] USK6# |
82824-22070 |
US $18.49 |
||
|
82824W
|
82824W
82824-22090 Connector, Wiring Harness[11.2008 - 09.2016] USK6# |
82824-22090 |
US $12.96 |
||
|
82824X
|
82824X
82824-28180 Connector, Wiring Harness[11.2008 - 09.2016] USK6# |
82824-28180 |
US $6.41 |
||
|
82825C
|
82825C
82824-44020
Connector, Wiring Harness
[11.2008 - 09.2016] USK6# |
82824-44020 |
— | ||
|
82825D
|
82825D
82824-50110 Connector, Wiring Harness[11.2008 - 09.2016] USK6# |
82824-50110 |
US $20.09 |
||
|
82825E
|
82825E
82824-52280 Connector, Wiring Harness[11.2008 - 09.2016] USK6# |
82824-52280 |
US $22.57 |
||
|
9008011368
|
9008011368
90080-11368
New Genuine Part
|
90080-11368 |
— | ||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— |
