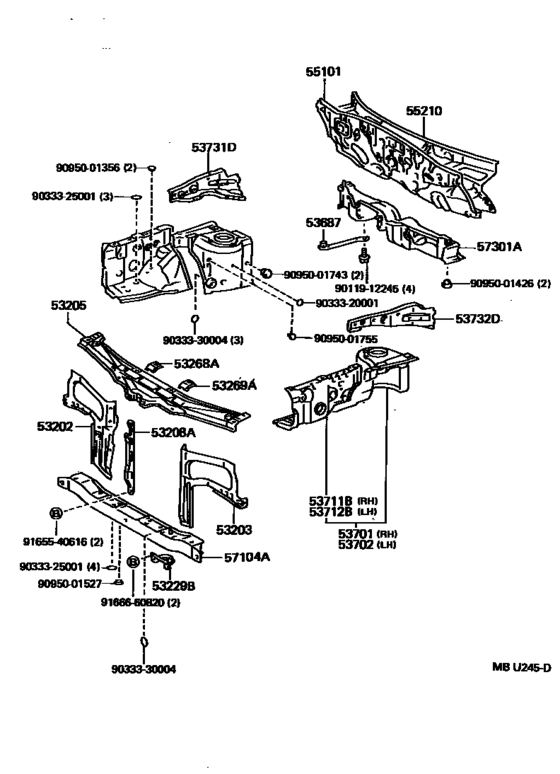

Front Fender Apron & Dash Panel ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-18010 Support Sub-Assy, Radiator, Rh[03.1990 - 12.1995] EXY10 |
53202-18010 |
US $41.64 |
||
|
53203
|
53203
53203-18010
Support Sub-Assy, Radiator, Lh
[03.1990 - 12.1995] EXY10 |
53203-18010 |
— | ||
|
53205
|
53205
53216-18010
Support Sub-Assy, Radiator, Upper
[03.1990 - 12.1995] EXY10 |
53216-18010 |
— | ||
|
53208A
|
53208A
53208-18010
Support Sub-Assy, Hood Lock
[03.1990 - 12.1995] EXY10 |
53208-18010 |
— | ||
|
53229B
|
53229B
53229-10040 Bracket, Radiator Mounting, Lower No.2[03.1990 - 12.1995] EXY10 |
53229-10040 |
US $11.07 |
||
|
53268A
|
53268A
53268-18010 Reinforcement, Radiator Mounting, Rh[03.1990 - 12.1995] EXY10 |
53268-18010 |
US $8.15 |
||
|
53269A
|
53269A
53268-18010 Reinforcement, Radiator Mounting, Rh[03.1990 - 12.1995] EXY10 |
53268-18010 |
US $8.15 |
||
|
53687
|
53687
53687-10030 Brace, Front Suspension Lower To Steering Member, Rh[03.1990 - 12.1995] EXY10 |
53687-10030 |
US $29.27 |
||
|
53701
|
53701
53701-18010 Apron Sub-Assy, Front Fender, Rh[03.1990 - 08.1994] EXY10 |
53701-18010 |
US $216.94 |
||
| replacement | |||||
|
53701
|
53701
53701-18011 Apron Sub-Assy, Front Fender, Rh[03.1990 - 08.1994] EXY10 |
53701-18011 |
US $216.94 |
||
|
53701
|
53701
53701-18011 Apron Sub-Assy, Front Fender, Rh[08.1994 - 12.1995] EXY10 |
53701-18011 |
US $216.94 |
||
|
53702
|
53702
53702-18010 Apron Sub-Assy, Front Fender, Lh[03.1990 - 08.1994] EXY10 |
53702-18010 |
US $216.94 |
||
| replacement | |||||
|
53702
|
53702
53702-18011 Apron Sub-Assy, Front Fender, Lh[03.1990 - 08.1994] EXY10 |
53702-18011 |
US $216.94 |
||
|
53702
|
53702
53702-18011 Apron Sub-Assy, Front Fender, Lh[08.1994 - 12.1995] EXY10 |
53702-18011 |
US $216.94 |
||
|
53711B
|
53711B
53711-18010 Apron, Front Fender, Front Rh[03.1990 - 12.1995] EXY10 |
53711-18010 |
US $82.99 |
||
|
53712B
|
53712B
53712-18010 Apron, Front Fender, Front Lh[03.1990 - 12.1995] EXY10 |
53712-18010 |
US $82.99 |
||
|
53731D
|
53731D
53731-18010 Member, Front Apron To Cowl Side, Upper Rh[03.1990 - 12.1995] EXY10 |
53731-18010 |
US $45.86 |
||
|
53732D
|
53732D
53732-18010 Member, Front Apron To Cowl Side, Upper Lh[03.1990 - 12.1995] EXY10 |
53732-18010 |
US $45.86 |
||
|
55101
|
55101
55101-10944 Panel Sub-Assy, Dash[03.1990 - 06.1992] EXY10..MTM |
55101-10944 |
US $301.39 |
||
| replacements | |||||
|
55101
|
55101
55101-10964 Panel Sub-assy, Dash[03.1990 - 06.1992] EXY10..MTM |
55101-10964 |
US $301.39 |
||
|
55101
|
55101
90333-20001 PLUG[03.1990 - 06.1992] EXY10..MTM |
90333-20001 |
from US $1.12 |
||
|
55101
|
55101
55101-18030 Panel Sub-Assy, Dash[06.1992 - 12.1995] EXY10..MTM |
55101-18030 |
US $301.39 |
||
| replacements | |||||
|
55101
|
55101
55101-18040 Panel Sub-Assy, Dash[06.1992 - 12.1995] EXY10..MTM |
55101-18040 |
US $301.39 |
||
|
55101
|
55101
90333-20001 PLUG[06.1992 - 12.1995] EXY10..MTM |
90333-20001 |
from US $1.12 |
||
|
55101
|
55101
90950-01573
New Genuine Part
[06.1992 - 12.1995] EXY10..MTM |
90950-01573 |
— | ||
|
55210
|
55210
55210-18010 Insulator Assy, Dash Panel[03.1990 - 12.1995] EXY10 |
55210-18010 |
US $196.56 |
||
|
57104A
|
57104A
57104-18010 Member Sub-Assy, Front Cross[03.1990 - 12.1995] EXY10 |
57104-18010 |
US $160.16 |
||
|
57301A
|
57301A
57301-10070 Member Sub-Assy, Steering Gear Box Support[03.1990 - 04.1994] EXY10 |
57301-10070 |
US $473.20 |
||
| replacement | |||||
|
57301A
|
57301A
57301-10071 Member Sub-Assy, Steering Gear Box Support[03.1990 - 04.1994] EXY10 |
57301-10071 |
US $473.20 |
||
|
57301A
|
57301A
57301-10071 Member Sub-Assy, Steering Gear Box Support[04.1994 - 12.1995] EXY10 |
57301-10071 |
US $473.20 |
||
|
9011912245
|
9011912245
90119-12245
New Genuine Part
|
90119-12245 |
— | ||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.60 |
||
|
9095001426
|
9095001426
90950-01426
New Genuine Part
|
90950-01426 |
— | ||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9095001755
|
9095001755
90950-01755 New Genuine Part |
90950-01755 |
US $2.48 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9166660820
|
9166660820
91666-60820
New Genuine Part
|
91666-60820 |
— | ||
| replacement | |||||
|
9166660820
|
9166660820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
