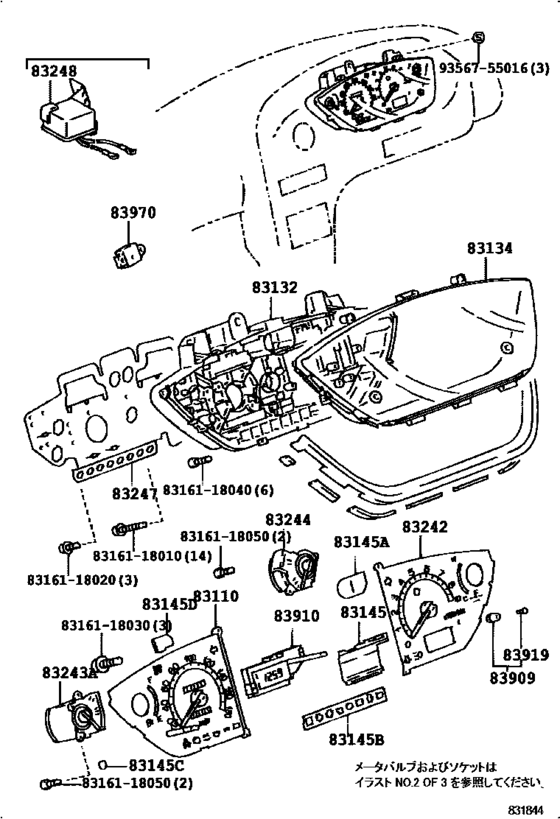

Meter ([03.1990 - ] ｽﾋﾟｰﾄﾞﾒｰﾀ (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83110-18010 Speedometer Assy[03.1990 - 06.1992] EXY10..MTM |
83110-18010 |
US $540.18 |
||
|
83110
|
83110
83110-18011 Speedometer Assy[06.1992 - 08.1992] EXY10..MTM |
83110-18011 |
US $540.18 |
||
| replacement | |||||
|
83110
|
83110
83110-18012 Speedometer Assy[06.1992 - 08.1992] EXY10..MTM |
83110-18012 |
US $541.63 |
||
|
83110
|
83110
83110-18012 Speedometer Assy[08.1992 - 12.1995] EXY10..MTM |
83110-18012 |
US $541.63 |
||
|
83132
|
83132
83132-18010 Case, Combination Meter[03.1990 - 06.1992] EXY10 |
83132-18010 |
US $38.88 |
||
|
83132
|
83132
83132-18011 Case, Combination Meter[06.1992 - 12.1995] EXY10 |
83132-18011 |
US $39.02 |
||
|
83134
|
83134
83134-18010
Cover, Combination Meter, No.1
[03.1990 - 12.1995] EXY10 |
83134-18010 |
— | ||
|
83145
|
83145
83145-18010 Lens, Meter, No.1[03.1990 - 12.1995] EXY10 |
83145-18010 |
US $5.97 |
||
|
83145A
|
83145A
83145-18020 Lens, Meter, No.2[03.1990 - 12.1995] EXY10 |
83145-18020 |
US $4.51 |
||
|
83145B
|
83145B
83145-18030 Lens, Meter, No.3[04.1990 - 06.1992] EXY10 |
83145-18030 |
US $4.37 |
||
|
83145B
|
83145B
83145-18031 Lens, Meter, No.3[06.1992 - 12.1995] EXY10 |
83145-18031 |
US $4.51 |
||
|
83145B
|
83145B
83145-18040 Lens, Meter, No.3[03.1990 - 04.1990] EXY10..MTM |
83145-18040 |
US $4.51 |
||
|
83145C
|
83145C
83145-18050 Lens, Meter, No.4[03.1990 - 12.1995] EXY10 |
83145-18050 |
US $2.62 |
||
|
83242
|
83242
83242-18010 Tachometer Assy, Engine[03.1990 - 06.1992] EXY10 |
83242-18010 |
US $483.39 |
||
| replacement | |||||
|
83242
|
83242
83242-18011 Tachometer Assy, Engine[03.1990 - 06.1992] EXY10 |
83242-18011 |
US $486.30 |
||
|
83242
|
83242
83242-18011 Tachometer Assy, Engine[06.1992 - 12.1995] EXY10 |
83242-18011 |
US $486.30 |
||
|
83242
|
83242
83242-18030 Tachometer Assy, Engine[03.1990 - 06.1992] EXY10 ｱﾘ(*66) |
83242-18030 |
US $483.39 |
||
|
83242
|
83242
83242-18031 Tachometer Assy, Engine[06.1992 - 12.1995] EXY10 ｱﾘ(*66) |
83242-18031 |
US $486.30 |
||
|
83243A
|
83243A
83243-18010 Gauge Sub-Assy, Fuel Receiver[03.1990 - 12.1995] EXY10 |
83243-18010 |
US $122.30 |
||
|
83244
|
83244
83244-18010
Gauge Sub-Assy, Water Temperature Receiver
[03.1990 - 12.1995] EXY10 |
83244-18010 |
— | ||
|
83247
|
83247
83247-18010 Plate, Meter Circuit[03.1990 - 06.1992] EXY10..MTM |
83247-18010 |
US $57.95 |
||
|
83247
|
83247
83247-18011 Plate, Meter Circuit[06.1992 - 12.1995] EXY10..MTM |
83247-18011 |
US $58.24 |
||
|
83247
|
83247
83247-18030 Plate, Meter Circuit[03.1990 - 06.1992] EXY10..MTM ｱﾘ(*66) |
83247-18030 |
US $57.95 |
||
|
83247
|
83247
83247-18031 Plate, Meter Circuit[06.1992 - 12.1995] EXY10..MTM ｱﾘ(*66) |
83247-18031 |
US $58.24 |
||
|
83248
|
83248
86640-18010 Chime, Speed Warning[03.1990 - 12.1995] EXY10 |
86640-18010 |
US $34.36 |
||
|
83909
|
83909
83909-22180 Knob, Clock[03.1990 - 12.1995] EXY10 |
83909-22180 |
US $2.62 |
||
|
83910
|
83910
83910-18010 Clock Assy[03.1990 - 12.1995] EXY10 |
83910-18010 |
US $423.70 |
||
|
83919
|
83919
83919-12230 Screw, Clock[03.1990 - 12.1995] EXY10 |
83919-12230 |
US $1.92 |
||
|
8316118010
|
8316118010
83161-18010 Case, Combination Meter Mirror, No.1 |
83161-18010 |
US $1.75 |
||
|
8316118020
|
8316118020
83161-18020 Case, Combination Meter Mirror, No.1 |
83161-18020 |
US $1.75 |
||
|
8316118030
|
8316118030
83161-18030 Case, Combination Meter Mirror, No.1 |
83161-18030 |
US $1.75 |
||
|
8316118040
|
8316118040
83161-18040 Case, Combination Meter Mirror, No.1 |
83161-18040 |
US $1.75 |
||
|
8316118050
|
8316118050
83161-18050 Case, Combination Meter Mirror, No.1 |
83161-18050 |
US $1.75 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
