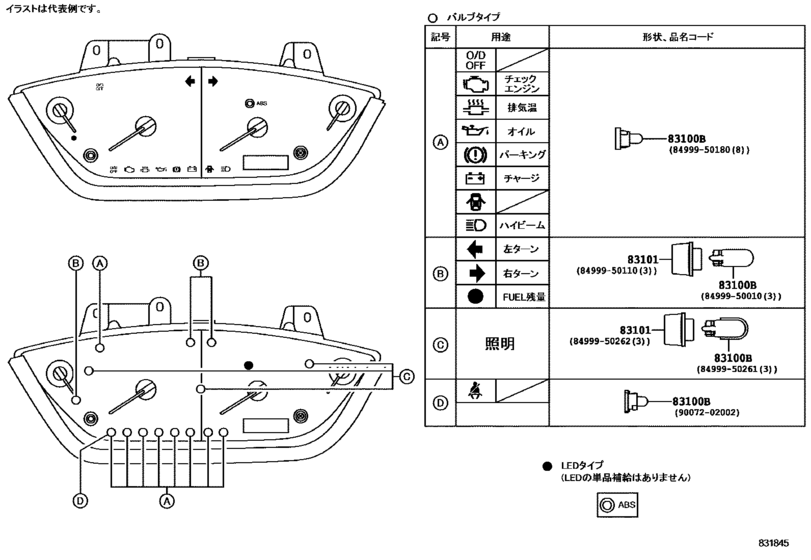

Meter ([03.1990 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
84999-50010 Bulb, Indicator Lamp[03.1990 - 12.1995] EXY10 １２Ｖ ３．４Ｗ |
84999-50010 |
US $3.14 |
||
|
83100B
|
83100B
84999-50180 Bulb, Indicator Lamp[03.1990 - 12.1995] EXY10..MTM １２Ｖ １．２Ｗ |
84999-50180 |
US $6.24 |
||
|
83100B
|
83100B
84999-50261 Bulb, Combination Meter, No.1[03.1990 - 12.1995] EXY10 １２Ｖ ３．４Ｗ，グリーン キャップ |
84999-50261 |
US $5.39 |
||
|
83100B
|
83100B
90072-02002 Bulb, Combination Meter, No.1[06.1992 - 12.1995] EXY10 １４Ｖ １．４Ｗ，ソケット付き |
90072-02002 |
US $6.12 |
||
|
83101
|
83101
84999-50110 Socket, Indicator Lamp[03.1990 - 12.1995] EXY10 １２Ｖ ３．４Ｗ |
84999-50110 |
US $7.57 |
||
|
83101
|
83101
84999-50262 Socket Sub-Assy, Combination Meter Bulb[03.1990 - 12.1995] EXY10 12V 3.4W,GREEN CAP |
84999-50262 |
US $3.20 |
