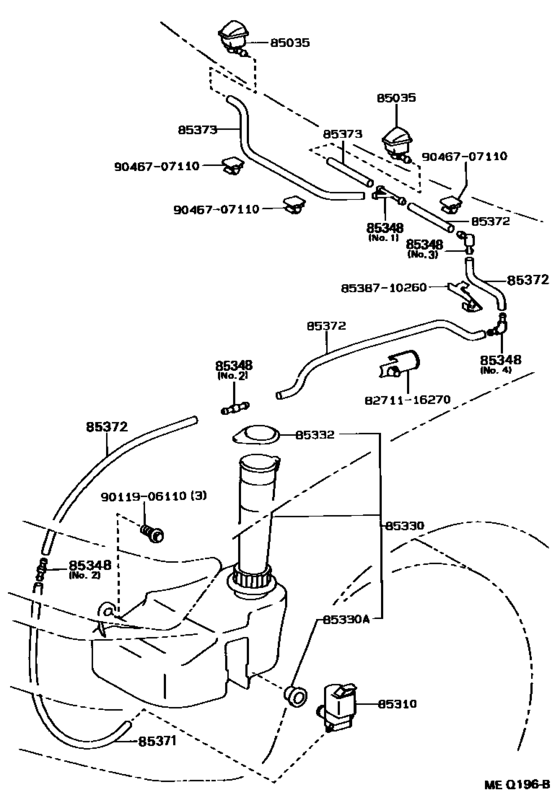

Windshield Washer ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30020
Nozzle Sub-Assy, Washer
[03.1990 - 12.1995] EXY10 |
85381-30020 |
— | ||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[03.1990 - 12.1995] EXY10 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85315-18010 Jar Assy, Windshield Washer[03.1990 - 12.1995] EXY10 |
85315-18010 |
US $67.56 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[03.1990 - 12.1995] EXY10 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[03.1990 - 12.1995] EXY10 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[03.1990 - 12.1995] EXY10 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-10190
Cap, Windshield Washer Jar
[03.1990 - 12.1995] EXY10 |
85316-10190 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[03.1990 - 12.1995] EXY10 |
85316-16070 |
from US $1.75 |
||
|
85348
|
85348
85348-14390 Joint, Windshield Washer Hose, No.1[03.1990 - 12.1995] EXY10 ＮＯ．１ |
85348-14390 |
from US $1.40 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[03.1990 - 12.1995] EXY10 ＮＯ．２ |
85349-89122 |
from US $1.25 |
||
|
85348
|
85348
85355-20200 Joint, Windshield Washer Hose, No.1[03.1990 - 12.1995] EXY10 ＮＯ．４ |
85355-20200 |
from US $0.99 |
||
|
85348
|
85348
85376-10250 Joint, Windshield Washer Hose, No.1[03.1990 - 12.1995] EXY10 ＮＯ．３ |
85376-10250 |
from US $3.84 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[03.1990 - 12.1995] EXY10 Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[03.1990 - 12.1995] EXY10 Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[03.1990 - 12.1995] EXY10 |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[03.1990 - 12.1995] EXY10 Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
8271116270
|
8271116270
82711-16270 Wire, Fuse To Fuse(for Combustion Heater) |
82711-16270 |
US $3.06 |
||
|
8538710260
|
8538710260
85387-10260 Clamp No.1 (for Windseield Washer) |
85387-10260 |
US $5.82 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9046707110
|
9046707110
90467-07110 New Genuine Part |
90467-07110 |
US $3.20 |
||
