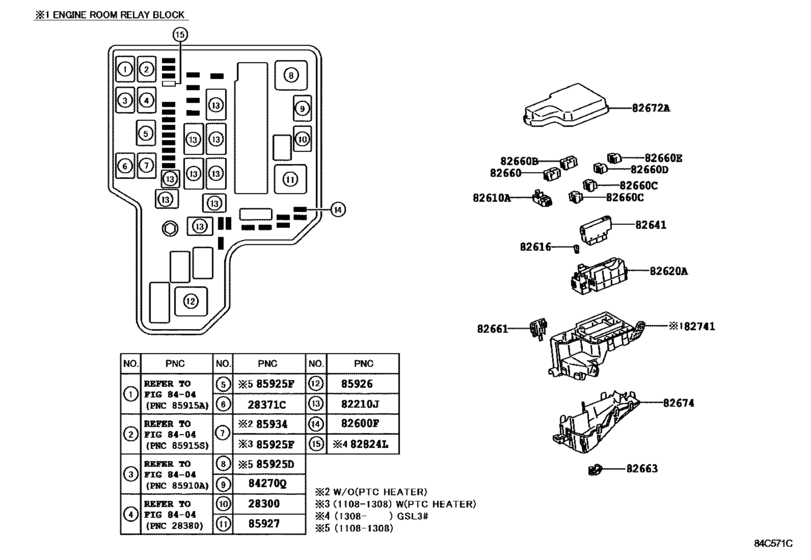

Switch & Relay & Computer ([09.2011 - 09.2014] ENGINE ROOM RELAY BLOCK (1109-1409)) Diagram Toyota SIENNA
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
