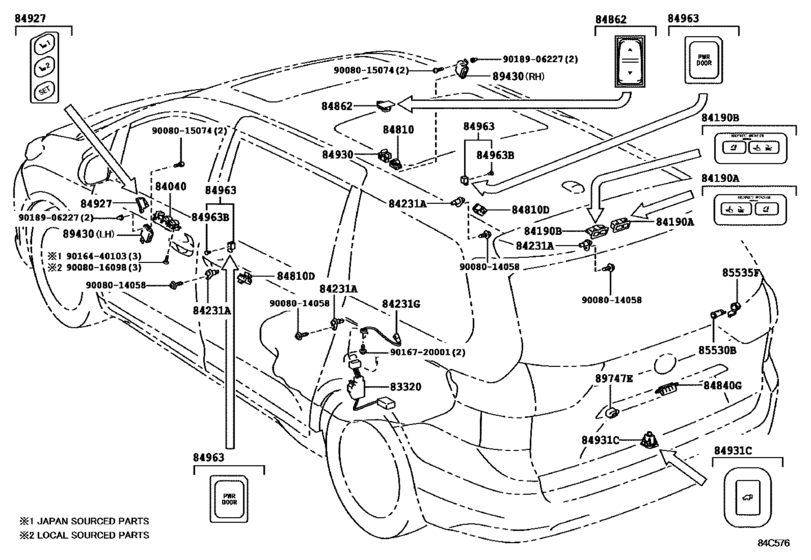

Switch & Relay & Computer ([09.2011 - 09.2014] DOOR,ROOF,FLOOR & BACK DOOR (1109-1409)) Diagram Toyota SIENNA
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-08030
Gage Assy, Fuel Sender
[09.2011 - 08.2013] ASL30 |
83320-08030 |
— | ||
|
84040
|
84040
84040-08020
Master Switch Assy,multiplex Network
[09.2011 - 08.2013] ASL30 |
84040-08020 |
— | ||
|
84231A
|
84231A
84231-0C010 Switch, Courtesy LampCOURTESY LAMP [09.2011 - 08.2013] ASL30 |
84231-0C010 |
US $11.84 |
||
|
84231G
|
84231G
84231-08050
Switch, Courtesy (For Fuel Lid)
[09.2011 - 08.2013] ASL30 |
84231-08050 |
— | ||
|
84810
|
84810
84810-0T010
Switch Assy, Power Window Regulator
[09.2011 - 08.2013] ASL30 |
84810-0T010 |
— | ||
|
84810D
|
84810D
84810-0T010
Switch Assy, Power Window Regulator
[09.2011 - 08.2013] ASL30 |
84810-0T010 |
— | ||
|
84840G
|
84840G
84840-0T010
Switch Assy, Luggage Compartment Door Opening
[09.2011 - 08.2013] ASL30,GSL30; GSL30 STARTING SYSTEM-ROTARY |
84840-0T010 |
— | ||
|
84927
|
84927
84927-08010
Switch, Seat Memory
[09.2011 - 08.2013] ASL30 |
84927-08010 |
— | ||
|
84930
|
84930
84930-0C010
Switch Assy, Door Control
[09.2011 - 08.2013] ASL30 |
84930-0C010 |
— | ||
|
84963
|
84963
84963-AE010 Switch, Power Slide Door Control, No.1POWER SLIDE DOOR CONTROL, NO.1 [09.2011 - 08.2013] ASL30 |
84963-AE010 |
US $39.60 |
||
|
84963B
|
84963B
90011-01042 Bulb (For Pattern Select Switch)POWER SLIDE CONTROL SWITCH, NO.1 [09.2011 - 08.2013] ASL30 14V 0.91W,W(CAP) |
90011-01042 |
US $4.80 |
||
|
85530B
|
85530B
85530-AE010 Socket Assy, Power Outlet, No.1POWER POINT [09.2011 - 08.2013] ASL30 |
85530-AE010 |
from US $27.46 |
||
|
85535F
|
85535F
85535-AE020-B1
Cover, Power Outlet Socket, No.1
[09.2011 - 08.2013] ASL30 LT.GRAY,TRIM1# |
85535-AE020-B1 |
— | ||
|
85535F
|
85535F
85535-AE020-E2
Cover, Power Outlet Socket, Rear
[09.2011 - 08.2013] ASL30 GREGE,TRIM4# |
85535-AE020-E2 |
— | ||
|
89430
|
89430
89430-08010
Computer Assy, Outer Mirror Control
[09.2011 - 08.2013] ASL30 LH |
89430-08010 |
— | ||
|
89430
|
89430
89430-08020 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [09.2011 - 08.2013] ASL30 RH |
89430-08020 |
US $129.58 |
||
|
9008014058
|
9008014058
90080-14058
New Genuine Part
|
90080-14058 |
— | ||
|
9008015074
|
9008015074
90080-15074 New Genuine Part |
90080-15074 |
US $0.73 |
||
|
9008016098
|
9008016098
90080-16098
New Genuine Part
|
90080-16098 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016720001
|
9016720001
90167-20001 New Genuine Part |
90167-20001 |
US $0.87 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
