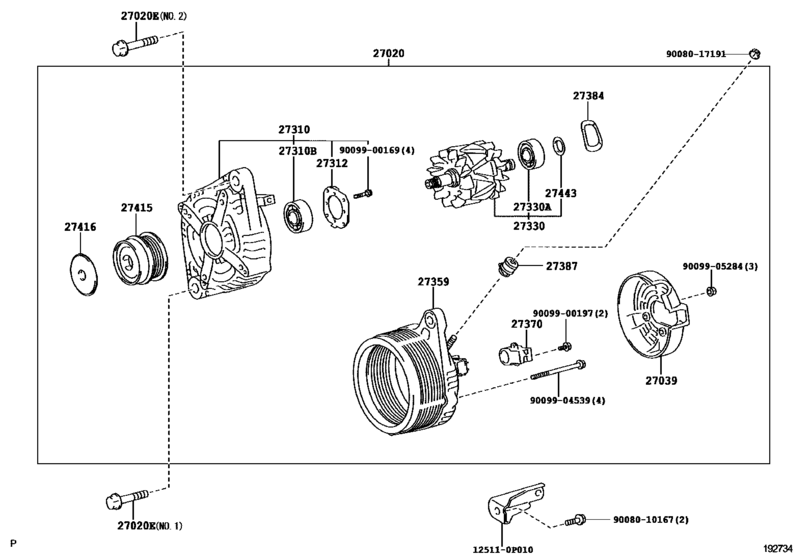

Alternator ([12.2006 - ] 12V 150A (0612- )) Diagram Toyota SIENNA
- Year
- 2006 - 2010
- Sales region
- U.S.A.
- Frame
- GSL20
- grade
- LE
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 12.2006
- To
- 01.2010
- No.of Doors
- 5D
- Seating Capacity
- 7S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0P240
Alternator Assy
[12.2006 - 10.2008] 2GRFE..GSL2# 12V 150A |
27060-0P240 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-0P241 Alternator Assy[12.2006 - 10.2008] 2GRFE..GSL2# 12V 150A |
27060-0P241 |
US $1,359.90 |
||
|
27020
|
27020
27060-0P241 Alternator Assy[11.2008 -] 2GRFE..GSL2# 12V 150A |
27060-0P241 |
US $1,359.90 |
||
|
27020E
|
27020E
90105-A0107
Bolt(For Alternator)
[12.2006 -] 2GRFE..GSL2# NO.1 |
90105-A0107 |
— | ||
|
27020E
|
27020E
90105-A0129
Bolt(For Alternator)
[12.2006 -] 2GRFE..GSL2# NO.2 |
90105-A0129 |
— | ||
|
27039
|
27039
27039-0A110
Cover, Alternator Rear End
[12.2006 - 06.2009] 2GRFE..GSL2# |
27039-0A110 |
— | ||
|
27039
|
27039
27039-0T040
Cover, Alternator Rear End
[06.2009 -] 2GRFE..GSL2# |
27039-0T040 |
— | ||
|
27310
|
27310
27310-0P140
Frame Assy, Drive End, Alternator
[12.2006 -] 2GRFE..GSL2# |
27310-0P140 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[11.2008 -] 2GRFE..GSL2# |
90068-10033 |
— | ||
|
27310B
|
27310B
90068-10142 Bearing(For Alternator Drive End Frame)[12.2006 - 11.2008] 2GRFE..GSL2# |
90068-10142 |
US $24.90 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[12.2006 -] 2GRFE..GSL2# |
27312-72100 |
US $3.88 |
||
|
27330
|
27330
27330-0A110
Rotor Assy, Alternator
[12.2006 -] 2GRFE..GSL2# |
27330-0A110 |
— | ||
|
27330A
|
27330A
90068-10222
Bearing(For Alternator Rotor)
[12.2006 -] 2GRFE..GSL2# |
90068-10222 |
— | ||
|
27359
|
27359
27360-0P240
Frame, Alternator Rectifier End
[12.2006 -] 2GRFE..GSL2# |
27360-0P240 |
— | ||
|
27370
|
27370
27370-0P020
Holder Assy, Alternator Brush
[12.2006 -] 2GRFE..GSL2# |
27370-0P020 |
— | ||
|
27384
|
27384
27384-0A020 Washer[12.2006 -] 2GRFE..GSL2# |
27384-0A020 |
US $9.32 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[12.2006 - 12.2009] 2GRFE..GSL2# |
27387-20130 |
US $4.02 |
||
|
27415
|
27415
27415-0W010
Pulley, Alternator W/clutch
[12.2006 - 11.2008] 2GRFE..GSL2# |
27415-0W010 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[12.2006 - 11.2008] 2GRFE..GSL2# |
27415-0W131 |
from US $61.43 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[12.2006 - 11.2008] 2GRFE..GSL2# |
27416-0W050 |
from US $3.90 |
||
|
27415
|
27415
27415-0W130
Pulley, Alternator W/clutch
[11.2008 - 12.2009] 2GRFE..GSL2# |
27415-0W130 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[11.2008 - 12.2009] 2GRFE..GSL2# |
27415-0W131 |
from US $61.43 |
||
|
27416
|
27416
27416-0W010 Cap, Alternator Pulley[12.2006 - 11.2008] 2GRFE..GSL2# |
27416-0W010 |
US $7.16 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[11.2008 - 12.2009] 2GRFE..GSL2# |
27416-0W050 |
from US $3.90 |
||
|
27443
|
27443
27443-0A020
Cover, Alternator Bearing
[12.2006 -] 2GRFE..GSL2# |
27443-0A020 |
— | ||
| replacement | |||||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[12.2006 -] 2GRFE..GSL2# |
27443-63020 |
from US $1.12 |
||
|
125110P010
|
125110P010
12511-0P010
Bracket, Alternator, No.1
|
12511-0P010 |
— | ||
|
9008010167
|
9008010167
90080-10167
BOLT WWASHER
|
90080-10167 |
— | ||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.44 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
