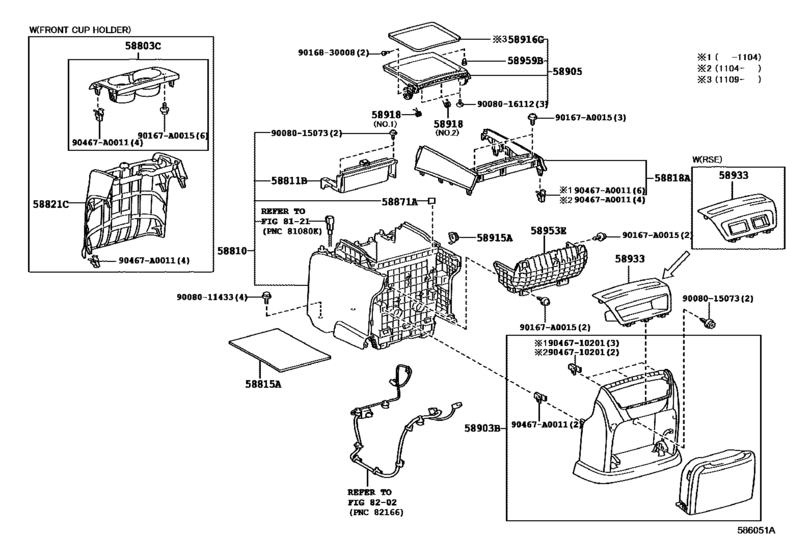

Console Box & Bracket ([08.2016 - ] FIXED TYPE (1608- )LE,SE,XLE) Diagram Toyota SIENNA
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- GSL30
- grade
- SE
- body
- WG
- ENGINE
- 2GRFKS
- DESTINATION
- USA
- From
- 08.2016
- Gear Shift Type
- 8FC
- Seating Capacity
- 08S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58803C
|
58803C
58803-08050
Box Sub-Assy, Console Cup Holder
[08.2016 -] GSL30..SE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58803-08050 |
— | ||
|
58810
|
58810
58801-08030-C0
Console Assy
[08.2016 -] GSL30..SE BLACK,TRIM2#; GSL35..XLE BLACK,TRIM15,43 |
58801-08030-C0 |
— | ||
|
58811B
|
58811B
58802-08011
Box, Console
[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58802-08011 |
— | ||
|
58815A
|
58815A
58815-08010 Carpet, Console BoxCONSOLE BOX [08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58815-08010 |
US $8.59 |
||
|
58818A
|
58818A
58818-08020-C0
Cover, Console Box, Fr
[08.2016 -] GSL30..SE BLACK,TRIM2#; GSL35..XLE BLACK,TRIM15,43; GSL30..07S..XLE W(DRIVER SEAT : MEMORY POWER SEAT),BLACK,TRIM1#,4#; GSL30..07S..XLE W(DRIVER SEAT : MEMORY POWER SEAT)&TELEVISION & DVD PLAYER-WITH,BLACK,TRIM1#,4# |
58818-08020-C0 |
— | ||
|
58821C
|
58821C
58821-08050-C0
Panel, Console, Upper
[08.2016 -] GSL30..SE BLACK,TRIM2#; GSL30,35..07S..XLE W(DRIVER SEAT : MEMORY POWER SEAT),BLACK,TRIM1#,4# |
58821-08050-C0 |
— | ||
|
58871A
|
58871A
58871-08020
Cushion, Console Box, No.2
[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58871-08020 |
— | ||
|
58903B
|
58903B
58903-08020-C0
Bracket Sub-Assy, Console Box Hinge, No.2
[08.2016 -] GSL30..SE BLACK,TRIM2#; GSL35..XLE BLACK,TRIM15,43 |
58903-08020-C0 |
— | ||
|
58905
|
58905
58905-08011 Door Sub-Assy, Console Compartment[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58905-08011 |
US $109.71 |
||
|
58915A
|
58915A
58915-08030
Damper, Console Box, Rear
[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58915-08030 |
— | ||
|
58916G
|
58916G
58916-08040 Mat, Box Bottom, No.2[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58916-08040 |
US $125.28 |
||
|
58918
|
58918
58949-08010
Spring, Console Box Stopper
[08.2016 -] GSL30,35..SE,XLE NO.1; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK),NO.1 |
58949-08010 |
— | ||
|
58918
|
58918
58949-08020
Spring, Console Box Stopper
[08.2016 -] GSL30,35..SE,XLE NO.2; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK),NO.2 |
58949-08020 |
— | ||
|
58933
|
58933
58933-08010
Garnish, Console Rear End Panel
[08.2016 -] GSL35..XLE;GSL30..08S..(SE,XLE) TELEVISION & DVD PLAYER-WITH |
58933-08010 |
— | ||
|
58933
|
58933
58933-08020
Garnish, Console Rear End Panel
[08.2016 -] GSL35..XLE;GSL30..08S..(SE,XLE); GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58933-08020 |
— | ||
|
58953E
|
58953E
58953-08010
Cover, Console Compartment Door Pad
[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58953-08010 |
— | ||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[08.2016 -] GSL30,35..SE,XLE; GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
58959-60060 |
from US $1.31 |
||
|
90167A0015
|
90167A0015
90167-A0015
New Genuine Part
|
90167-A0015 |
— | ||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
9008011433
|
9008011433
90080-11433
New Genuine Part
|
90080-11433 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9008016112
|
9008016112
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9016830008
|
9016830008
90168-30008 New Genuine Part |
90168-30008 |
US $0.73 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.94 |
