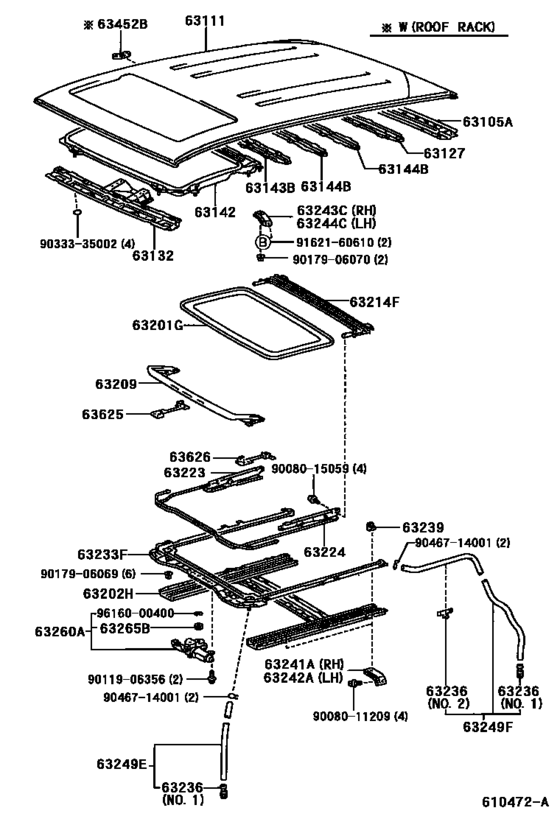

Roof Panel & Back Panel ([08.1997 - ] W(MOON ROOF) (9708- )5D..LE) Diagram Toyota SIENNA
- Year
- 1997 - 2003
- Sales region
- U.S.A.
- Frame
- MCL10
- grade
- LE
- body
- WG
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1997
- To
- 01.2003
- No.of Doors
- 5D
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63105A
|
63105A
63105-08010
Frame Sub-Assy, Back Door Opening
[08.1997 - 08.2000] MCL10 |
63105-08010 |
— | ||
| replacement | |||||
|
63105A
|
63105A
63105-08011
Frame Sub-Assy, Back Door Opening
[08.1997 - 08.2000] MCL10 |
63105-08011 |
— | ||
|
63105A
|
63105A
63105-08011
Frame Sub-Assy, Back Door Opening
[08.2000 -] MCL10 |
63105-08011 |
— | ||
|
63111
|
63111
63111-08010
Panel, Roof
[08.1997 -] MCL10 |
63111-08010 |
— | ||
|
63111
|
63111
63111-08020
Panel, Roof
[08.1997 - 08.2000] MCL10..5D..LE W(MOON ROOF) |
63111-08020 |
— | ||
|
63111
|
63111
63111-08030
Panel, Roof
[08.1997 -] MCL10 W(ROOF RACK) |
63111-08030 |
— | ||
|
63111
|
63111
63111-08040
Panel, Roof
[08.1997 -] MCL10..5D..LE W(MOOF ROOF & ROOF RACK) |
63111-08040 |
— | ||
|
63127
|
63127
63127-08010
Reinforcement, Roof Panel, No.5
[08.1997 -] MCL10 |
63127-08010 |
— | ||
|
63132
|
63132
63132-08900
Panel, Windshield Header, Inner
[08.1997 - 08.2000] MCL10 |
63132-08900 |
— | ||
| replacement | |||||
|
63132
|
63132
63132-08901
Panel, Windshield Header, Inner
[08.1997 - 08.2000] MCL10 |
63132-08901 |
— | ||
|
63132
|
63132
63132-08901
Panel, Windshield Header, Inner
[08.2000 -] MCL10 |
63132-08901 |
— | ||
|
63142
|
63142
63142-AA010 Reinforcement, Roof Panel, No.2[08.1997 -] MCL10..5D..LE |
63142-AA010 |
US $97.55 |
||
|
63143B
|
63143B
63143-08010
Reinforcement, Roof Panel, No.3
[08.1997 -] MCL10 |
63143-08010 |
— | ||
|
63143B
|
63143B
63143-08020
Reinforcement, Roof Panel, No.3
[08.1997 -] MCL10..5D..LE W(MOON ROOF) |
63143-08020 |
— | ||
|
63144B
|
63144B
63144-08010
Reinforcement, Roof Panel, No.4
[08.1997 - 07.2000] MCL10 |
63144-08010 |
— | ||
| replacement | |||||
|
63144B
|
63144B
63144-08011
Reinforcement, Roof Panel, No.4
[08.1997 - 07.2000] MCL10 |
63144-08011 |
— | ||
|
63144B
|
63144B
63144-08011
Reinforcement, Roof Panel, No.4
[07.2000 -] MCL10 |
63144-08011 |
— | ||
|
63201G
|
63201G
63201-08010
Glass Sub-Assy, Sliding Roof
[08.1997 -] MCL10..5D..LE |
63201-08010 |
— | ||
|
63202H
|
63202H
63202-08010
Rail Sub-Assy, Slide Roof
[08.1997 -] MCL10..5D..LE |
63202-08010 |
— | ||
|
63209
|
63209
63209-45010 Panel Sub-Assy, Roof Wind DeflectorROOF WIND DEFLECTOR [08.1997 -] MCL10..5D..LE |
63209-45010 |
US $174.72 |
||
|
63214F
|
63214F
63214-33030 Channel, Roof Drip, RearROOF DRIP, REAR [02.1999 -] MCL10..5D..LE |
63214-33030 |
US $40.77 |
||
|
63214F
|
63214F
63214-45010 Channel, Roof Drip, RearROOF DRIP, REAR [08.1997 - 02.1999] MCL10..5D..LE |
63214-45010 |
US $40.33 |
||
|
63223
|
63223
63223-08010
Cable, Sliding Roof Drive, Rh
[08.1997 -] MCL10..5D..LE |
63223-08010 |
— | ||
|
63224
|
63224
63224-08010
Cable, Sliding Roof Drive, Lh
[08.1997 -] MCL10..5D..LE |
63224-08010 |
— | ||
|
63233F
|
63233F
63233-45010 Frame, Removable Roof HousingREMOVABLE ROOF HOUSING [08.1997 -] MCL10..5D..LE |
63233-45010 |
US $321.78 |
||
|
63236
|
63236
63236-08010 Clamp, Sliding Roof Or Removable Roof Drain Hose[08.1997 -] MCL10..5D..LE NO.1 |
63236-08010 |
US $2.62 |
||
|
63236
|
63236
63236-08020
Clamp, Sliding Roof Or Removable Roof Drain Hose
[08.1997 -] MCL10..5D..LE NO.2 |
63236-08020 |
— | ||
|
63239
|
63239
63239-12030 Stopper, Sliding Roof Panel[08.1997 -] MCL10..5D..LE |
63239-12030 |
US $1.75 |
||
|
63241A
|
63241A
63241-45010 Bracket, Sliding Roof Housing Front Mounting, RhSLIDING ROOF HOUSING FRONT MOUNTING, RH [08.1997 -] MCL10..5D..LE |
63241-45010 |
US $34.80 |
||
|
63242A
|
63242A
63241-45010 Bracket, Sliding Roof Housing Front Mounting, RhSLIDING ROOF HOUSING FRONT MOUNTING, RH [08.1997 -] MCL10..5D..LE |
63241-45010 |
US $34.80 |
||
|
63243C
|
63243C
63243-08010
Bracket, Sliding Roof Housing Center Mounting, Rh
[08.1997 -] MCL10..5D..LE |
63243-08010 |
— | ||
|
63244C
|
63244C
63244-08020
Bracket, Sliding Roof Housing Center Mounting, Lh
[08.1997 -] MCL10..5D..LE |
63244-08020 |
— | ||
|
63249E
|
63249E
63220-08010
Hose, Sliding Roof Drain
[08.1997 -] MCL10..5D..LE |
63220-08010 |
— | ||
|
63249F
|
63249F
63220-08020
Hose, Sliding Roof Drain
[08.1997 - 01.2003] MCL10..5D..LE RH |
63220-08020 |
— | ||
|
63249F
|
63249F
63240-08010
Hose, Sliding Roof Drain
[08.1997 - 01.2003] MCL10..5D..LE LH |
63240-08010 |
— | ||
|
63260A
|
63260A
63260-45010
Gear Sub-Assy, Sliding Roof Drive
[08.1997 -] MCL10..5D..LE |
63260-45010 |
— | ||
|
63265B
|
63265B
63265-12040 Gear, Sliding Roof Drive[08.1997 -] MCL10..5D..LE |
63265-12040 |
US $20.97 |
||
|
63452B
|
63452B
63452-45010 Reinforcement, Roof Rack, No.2ROOF RACK, NO.2 [08.1997 -] MCL10 |
63452-45010 |
US $4.95 |
||
|
63625
|
63625
63625-45010 Block, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [08.1997 -] MCL10..5D..LE |
63625-45010 |
US $16.89 |
||
|
63626
|
63626
63626-45010 Block, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [08.1997 -] MCL10..5D..LE |
63626-45010 |
US $16.89 |
||
|
9008011209
|
9008011209
90080-11209
New Genuine Part
|
90080-11209 |
— | ||
|
9008015059
|
9008015059
90080-15059 New Genuine Part |
90080-15059 |
US $1.60 |
||
|
9011906356
|
9011906356
90119-06356 New Genuine Part |
90119-06356 |
US $2.04 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
