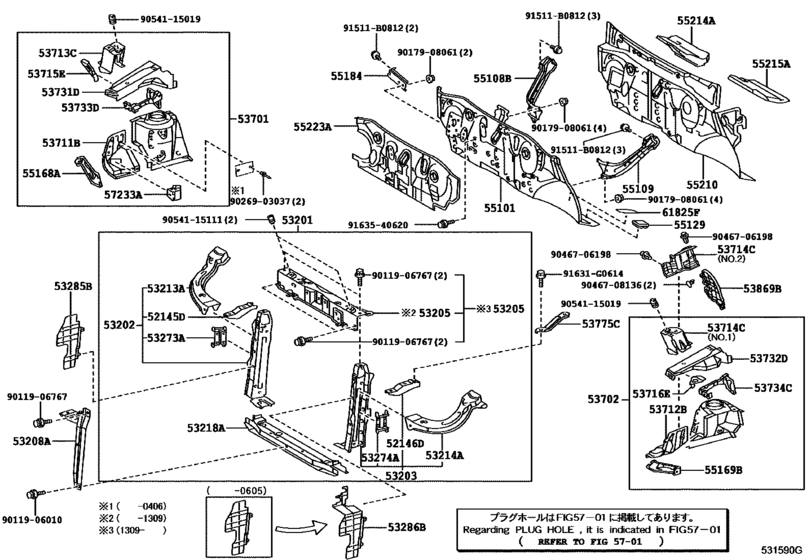

Front Fender Apron & Dash Panel ([09.2003 - ] (0309- )G,X) Diagram Toyota SIENTA
- Year
- 2003 - 2014
- Sales region
- Japan
- Frame
- NCP85
- grade
- G
- ENGINE
- 1NZFE
- From
- 09.2003
- To
- 09.2014
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52145D
|
52145D
52145-52110 Bracket, Front Bumper Side Mounting, Rh[09.2003 - 05.2006] NCP8# |
52145-52110 |
US $6.70 |
||
|
52146D
|
52146D
52146-52110 Bracket, Front Bumper Side Mounting, Lh[09.2003 - 05.2006] NCP8# |
52146-52110 |
US $6.70 |
||
|
53201
|
53201
53210-52160 Support Sub-Assy, Radiator[09.2003 - 05.2006] NCP8# |
53210-52160 |
from US $436 |
||
|
53202
|
53202
53202-52160 Support Sub-Assy, Radiator, Rh[09.2003 - 05.2006] NCP8# |
53202-52160 |
US $117.48 |
||
|
53203
|
53203
53203-52150 Support Sub-Assy, Radiator, Lh[09.2003 - 05.2006] NCP8# |
53203-52150 |
US $117.48 |
||
|
53205
|
53205
53205-52060 Support Sub-Assy, Radiator, Upper[09.2003 - 05.2006] NCP8# |
53205-52060 |
US $75.71 |
||
| replacement | |||||
|
53205
|
53205
53205-52140 Support Sub-Assy, Radiator, Upper[09.2003 - 05.2006] NCP8# |
53205-52140 |
US $137.64 |
||
|
53205
|
53205
53205-52140 Support Sub-Assy, Radiator, Upper[09.2013 -] NCP8# |
53205-52140 |
US $137.64 |
||
|
53208A
|
53208A
53208-52090 Support Sub-Assy, Hood Lock[09.2003 - 05.2006] NCP8# |
53208-52090 |
US $29.56 |
||
| replacement | |||||
|
53208A
|
53208A
53208-52120 Support Sub-Assy, Hood Lock[09.2003 - 05.2006] NCP8# |
53208-52120 |
from US $39.22 |
||
|
53208A
|
53208A
53208-52120 Support Sub-Assy, Hood Lock[06.2011 - 06.2015] NCP8# |
53208-52120 |
from US $39.22 |
||
|
53213A
|
53213A
53213-52080 Support, Radiator, Upper Rh[09.2003 - 05.2006] NCP8# |
53213-52080 |
US $28.38 |
||
|
53214A
|
53214A
53214-52080 Support, Radiator, Upper Lh[09.2003 - 05.2006] NCP8# |
53214-52080 |
US $28.39 |
||
|
53218A
|
53218A
53218-52010 Support, Radiator, Lower[09.2003 - 05.2006] NCP8# |
53218-52010 |
US $119.88 |
||
|
53273A
|
53273A
53273-52010 Reinforcement, Radiator Support, Rh[09.2003 - 05.2006] NCP8# |
53273-52010 |
US $11.56 |
||
|
53274A
|
53274A
53273-52010 Reinforcement, Radiator Support, Rh[09.2003 - 05.2006] NCP8# |
53273-52010 |
US $11.56 |
||
|
53285B
|
53285B
53285-52130 Seal, Radiator Side Air, No.1[09.2003 - 05.2006] NCP8# |
53285-52130 |
US $24.17 |
||
|
53286B
|
53286B
53285-52130 Seal, Radiator Side Air, No.1[09.2003 - 05.2006] NCP8# |
53285-52130 |
US $24.17 |
||
|
53286B
|
53286B
53286-52190 Seal, Radiator Side Air, No.2[05.2006 - 08.2010] NCP8# |
53286-52190 |
US $27.06 |
||
|
53701
|
53701
53701-52100 Apron Sub-Assy, Front Fender, Rh[09.2003 - 05.2006] NCP8# |
53701-52100 |
US $182 |
||
|
53701
|
53701
53701-52210 Apron Sub-Assy, Front Fender, Rh[06.2011 - 06.2015] NCP8# |
53701-52210 |
US $165.98 |
||
|
53702
|
53702
53702-52100 Apron Sub-Assy, Front Fender, Lh[09.2003 - 05.2006] NCP8# |
53702-52100 |
US $182 |
||
|
53702
|
53702
53702-52210 Apron Sub-Assy, Front Fender, Lh[06.2011 - 06.2015] NCP8# |
53702-52210 |
US $165.98 |
||
|
53711B
|
53711B
53711-52010 Apron, Front Fender, Front Rh[09.2003 - 05.2006] NCP8# |
53711-52010 |
US $40.37 |
||
|
53712B
|
53712B
53712-52010 Apron, Front Fender, Front Lh[09.2003 - 05.2006] NCP8# |
53712-52010 |
US $38.16 |
||
|
53713C
|
53713C
53707-52020 Extension, Front Fender Apron, Front Rh[09.2003 - 05.2006] NCP8# |
53707-52020 |
US $26.06 |
||
|
53713C
|
53713C
53707-52040 Extension, Front Fender Apron, Front Rh[06.2011 -] NCP8# |
53707-52040 |
US $20.24 |
||
|
53714C
|
53714C
53708-52020 Extension, Front Fender Apron, Front Lh[09.2003 - 05.2006] NCP8# ＮＯ．１ |
53708-52020 |
US $26.06 |
||
|
53714C
|
53714C
53708-52040 Extension, Front Fender Apron, Front Lh[06.2011 -] NCP8# ＮＯ．１ |
53708-52040 |
US $25.48 |
||
|
53714C
|
53714C
53714-52010 Extension, Front Fender Apron, Front Lh[09.2003 - 05.2006] NCP8# ＮＯ．２ |
53714-52010 |
US $32.61 |
||
|
53714C
|
53714C
53714-52120 Extension, Front Fender Apron, Front Lh[06.2011 -] NCP8# ＮＯ．２ |
53714-52120 |
US $20.82 |
||
|
53715E
|
53715E
53715-52010 Extension, Front Fender Apron, Rear Rh[09.2003 - 05.2006] NCP8# |
53715-52010 |
US $4.08 |
||
|
53716E
|
53716E
53716-52010 Extension, Front Fender Apron, Rear Lh[09.2003 - 05.2006] NCP8# |
53716-52010 |
US $4.08 |
||
|
53731D
|
53731D
53731-52020 Member, Front Apron To Cowl Side, Upper Rh[09.2003 - 05.2006] NCP8# |
53731-52020 |
US $37.74 |
||
|
53732D
|
53732D
53732-52020 Member, Front Apron To Cowl Side, Upper Lh[09.2003 - 05.2006] NCP8# |
53732-52020 |
US $44.29 |
||
|
53733D
|
53733D
53705-52010 Member, Front Apron To Cowl Side, Lower Front Rh[09.2003 - 05.2006] NCP8# |
53705-52010 |
US $19.66 |
||
|
53734C
|
53734C
53706-52010 Member, Front Apron To Cowl Side, Lower Front Lh[09.2003 - 05.2006] NCP8# |
53706-52010 |
US $19.66 |
||
|
53775C
|
53775C
53775-52020 Bracket, Cool Air Intake Duct Mounting[09.2003 - 05.2006] NCP8# |
53775-52020 |
US $4.08 |
||
|
53869B
|
53869B
53869-52030 Seal, Front Fender To Cowl Side, No.2 Lh[09.2003 - 05.2006] NCP8# |
53869-52030 |
US $30.87 |
||
|
53869B
|
53869B
53869-52080 Seal, Front Fender To Cowl Side, No.2 Lh[06.2011 -] NCP8# |
53869-52080 |
US $23.44 |
||
|
55101
|
55101
55101-52431 Panel Sub-Assy, Dash[09.2003 - 05.2006] NCP85 |
55101-52431 |
US $259.17 |
||
|
55108B
|
55108B
55108-52080 Brace Sub-Assy, Dash To Frame, Rh[09.2003 - 05.2006] NCP8# |
55108-52080 |
US $49.36 |
||
|
55108B
|
55108B
55108-52081 Brace Sub-Assy, Dash To Frame, RhDASH TO FRAME, RH [05.2009 - 08.2010] NCP8# |
55108-52081 |
US $45.14 |
||
|
55109
|
55109
55109-52080 Brace Sub-Assy, Dash To Frame, Lh[09.2003 - 05.2006] NCP8# |
55109-52080 |
US $41.06 |
||
|
55129
|
55129
55129-52030 Cover, Dash Panel Hole[09.2003 - 05.2006] NCP8# |
55129-52030 |
US $20.24 |
||
|
55168A
|
55168A
55168-52100 Bracket, Front Fender Mounting, Rh[09.2003 - 05.2006] NCP8# |
55168-52100 |
US $24.17 |
||
|
55169B
|
55169B
55169-52100 Bracket, Front Fender Mounting, Lh[09.2003 - 05.2006] NCP8# |
55169-52100 |
US $24.17 |
||
|
55184
|
55184
55184-52040 Bracket, Dash Panel To Cowl Brace[09.2003 - 05.2006] NCP8# |
55184-52040 |
US $8.44 |
||
|
55210
|
55210
55210-52160 Insulator Assy, Dash Panel[09.2003 - 05.2006] NCP8# |
55210-52160 |
US $123.76 |
||
| replacement | |||||
|
55210
|
55210
55210-52430 Insulator Assy, Dash Panel[09.2003 - 05.2006] NCP8# |
55210-52430 |
US $123.76 |
||
|
55210
|
55210
55210-52430 Insulator Assy, Dash Panel[05.2013 -] NCP8# |
55210-52430 |
US $123.76 |
||
|
55214A
|
55214A
55214-52110 Pad, Dash Panel Insulator, No.2[09.2003 - 05.2006] NCP8# |
55214-52110 |
US $24.75 |
||
|
55215A
|
55215A
55215-52080 Pad, Dash Panel Insulator, No.3[09.2003 - 05.2006] NCP8# |
55215-52080 |
US $49.07 |
||
|
55223A
|
55223A
55223-52010 Insulator, Dash Panel, Outer[09.2003 - 05.2006] NCP8# |
55223-52010 |
US $63.48 |
||
|
57233A
|
57233A
57233-52010 Retainer, Engine Front Support, Rh[09.2003 - 12.2004] NCP8# |
57233-52010 |
US $18.20 |
||
| replacement | |||||
|
57233A
|
57233A
57233-52011 Retainer, Engine Front Support, Rh[09.2003 - 12.2004] NCP8# |
57233-52011 |
US $12.38 |
||
|
57233A
|
57233A
57233-52011 Retainer, Engine Front Support, Rh[12.2004 - 05.2006] NCP8# |
57233-52011 |
US $12.38 |
||
|
61825F
|
61825F
61826-47010 Plate, Noise Control[09.2003 - 05.2006] NCP8# |
61826-47010 |
US $4.22 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.70 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.82 |
||
|
9026903037
|
9026903037
90269-03037 RIVET |
90269-03037 |
US $1.76 |
||
|
9046706198
|
9046706198
90467-06198 CLIP |
90467-06198 |
from US $1.44 |
||
|
9046708136
|
9046708136
90467-08136 Retainer, Front Wheel Opening Extension, Rh |
90467-08136 |
US $1.44 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.20 |
||
|
9054115111
|
9054115111
90541-15111 Cushion, Radiator Support |
90541-15111 |
from US $2.20 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $0.96 |
||
