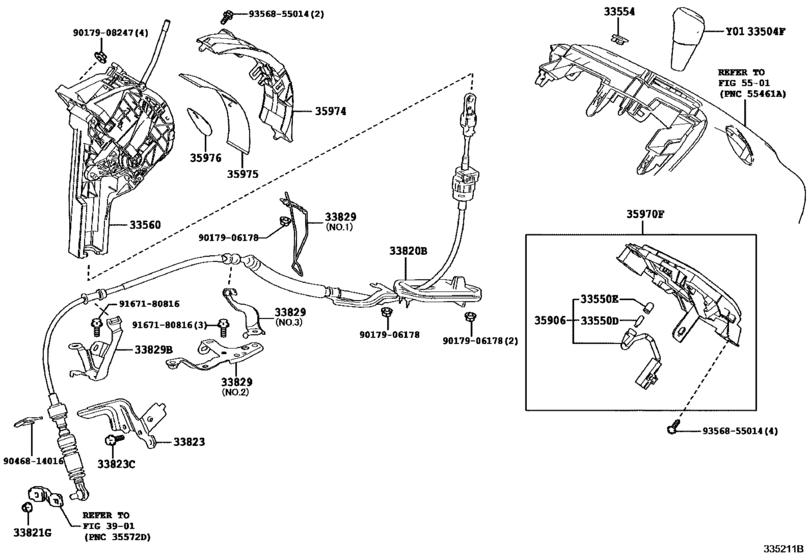

Shift Lever & Retainer ([07.2015 - ] (1507- )NHP170) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NHP170
- grade
- G
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 07.2015
- Seating Capacity
- 06S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-52490-C0 Knob Sub-Assy, Shift Lever[06.2015 -] NCP175,NHP170,NSP17#..G BLACK & STITCH NO.201,TRIM0#,2# |
33504-52490-C0 |
US $64.75 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[06.2015 -] NCP175,NHP170,NSP17# １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
33550E
|
33550E
35956-64020 Cap, Position Indicator LampPOSITION INDICATOR LAMP [06.2015 -] NCP175,NHP170,NSP17# |
35956-64020 |
US $2.24 |
||
|
33554
|
33554
33554-52160-A0 Cap, Shift Lever[06.2015 -] NCP175,NHP170,NSP17# FROMAGE,TRIM0# |
33554-52160-A0 |
US $1.92 |
||
|
33554
|
33554
33554-52160-C0 Cap, Shift Lever[06.2015 -] NCP175,NHP170,NSP17# BLACK,TRIM2# |
33554-52160-C0 |
US $1.92 |
||
|
33560
|
33560
33560-52680 Unit Assy, Shift Lock Control[07.2015 -] NHP170..G; NHP170..X スマートエントリ−有り（フロントドア ＆ バックドア） |
33560-52680 |
US $247.52 |
||
|
33820B
|
33820B
33820-52890 Cable Assy, Transmission Control[07.2015 -] NHP170 |
33820-52890 |
US $144.14 |
||
|
33821G
|
33821G
94151-80800 Nut (For Transmission Control Cable)[06.2015 -] NCP175,NHP170,NSP17# |
94151-80800 |
from US $0.82 |
||
|
33823
|
33823
33823-52140 Bracket, Transmission Control Cable, No.1[07.2015 -] NHP170 |
33823-52140 |
US $21.13 |
||
|
33823C
|
33823C
91671-80816 Bolt (For Transmission Control Cable Bracket)[07.2015 -] NHP170 |
91671-80816 |
from US $0.84 |
||
|
33829
|
33829
33829-52170 Support, Transmission Control CableTRANSMISSION CONTROL CABLE [07.2015 -] NHP170 ＮＯ．１：イラスト参照 |
33829-52170 |
US $5.97 |
||
|
33829
|
33829
33829-52190 Support, Transmission Control Cable[07.2015 -] NHP170 ＮＯ．２：イラスト参照 |
33829-52190 |
US $11.65 |
||
|
33829
|
33829
33829-52200 Support, Transmission Control Cable[07.2015 -] NHP170 ＮＯ．３：イラスト参照 |
33829-52200 |
US $5.82 |
||
|
33829B
|
33829B
33829-52180 Clamp, Transmission Control Cable[07.2015 -] NHP170 |
33829-52180 |
US $8.30 |
||
|
35906
|
35906
35906-52130 Wire Sub-Assy, Indicator Lamp[06.2015 -] NCP175,NHP170,NSP17# |
35906-52130 |
US $7.68 |
||
|
35970F
|
35970F
35970-52260-B0 Housing Assy, Position Indicator[07.2015 -] NHP170..G SATIN CHROME,TRIM0#,2# |
35970-52260-B0 |
US $116.48 |
||
|
35974
|
35974
35974-52160 Housing, Position Indicator, Lower[06.2015 -] NCP175,NHP170,NSP17# |
35974-52160 |
US $40.04 |
||
|
35975
|
35975
35975-52120 Cover, Slide (For Position Indicator)[06.2015 -] NCP175,NHP170,NSP17# |
35975-52120 |
US $9.28 |
||
|
35976
|
35976
35976-48050 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [06.2015 -] NCP175,NHP170,NSP17# |
35976-48050 |
US $6.24 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017908247
|
9017908247
90179-08247 New Genuine Part |
90179-08247 |
US $1.60 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
