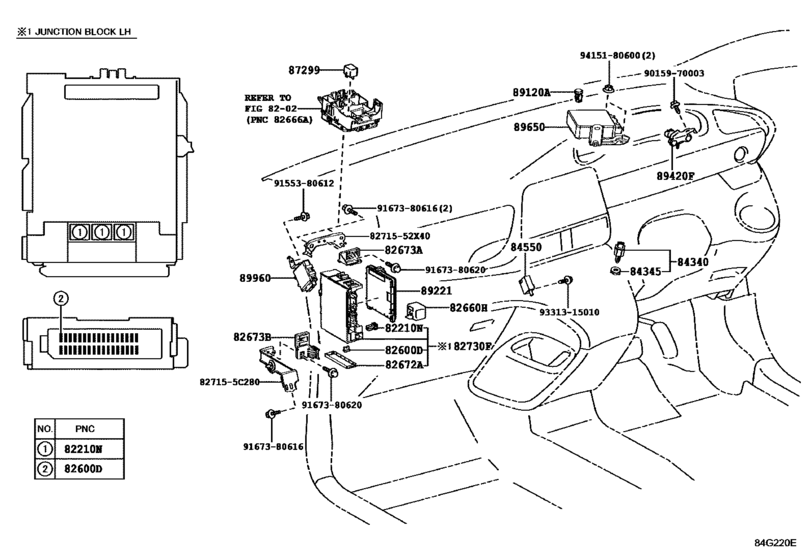

Switch & Relay & Computer ([06.2015 - ] COWL (1506- )) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NHP170
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 07.2015
- Seating Capacity
- 07S
- Vehicle Model
- SIENTA
- Model Mark
- Q
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[06.2015 -] NHP170,NSP170 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[06.2015 -] NHP170,NSP170 5A,MINI FUSE |
90982-09019 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[06.2015 -] NHP170,NSP170 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[06.2015 -] NHP170,NSP170 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[06.2015 -] NHP170,NSP170 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[06.2015 -] NHP170,NSP170 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[06.2015 -] NHP170,NSP170 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-52110 Cover, Junction Block[06.2015 -] NHP170,NSP170 |
82672-52110 |
US $3.49 |
||
|
82673A
|
82673A
82673-52040 Bracket, Junction Block[06.2015 -] NHP170,NSP170 |
82673-52040 |
US $9.03 |
||
|
82673B
|
82673B
82673-52140 Bracket, Junction Block[06.2015 -] NHP170,NSP170 |
82673-52140 |
US $9.32 |
||
|
82730F
|
82730F
82730-52Q90 Block Assy, Junction, Lh[06.2015 - 10.2015] NHP170,NSP170 |
82730-52Q90 |
US $195.10 |
||
| replacement | |||||
|
82730F
|
82730F
82730-52Q91 Block Assy, Junction, Lh[06.2015 - 10.2015] NHP170,NSP170 |
82730-52Q91 |
US $182.24 |
||
|
82730F
|
82730F
82730-52Q91 Block Assy, Junction, Lh[11.2015 -] NHP170,NSP170 |
82730-52Q91 |
US $182.24 |
||
|
84340
|
84340
84340-49085 Switch Assy, Stop Lamp[06.2015 -] NHP170,NSP170 |
84340-49085 |
US $18.64 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[06.2015 -] NHP170,NSP170 |
84345-51010 |
from US $3.49 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[06.2015 -] NHP170,NSP170 |
84550-30080 |
from US $18.39 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[06.2015 -] NHP170,NSP170..Q HEADLAMP-LED |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-52620
Computer, Multiplex Network Body
[06.2015 -] NHP170,NSP170 |
89220-52620 |
— | ||
|
89221
|
89221
89220-52630
Computer, Multiplex Network Body
[06.2015 -] NHP170,NSP170..Q HEADLAMP-LED |
89220-52630 |
— | ||
|
89650
|
89650
89650-52A40 Computer Assy, Power Steering[07.2015 -] NHP170 |
89650-52A40 |
US $417.87 |
||
|
89960
|
89960
89960-52700 Computer Assy, Headlamp Leveling[06.2015 -] NHP170,NSP170..Q HEADLAMP-LED |
89960-52700 |
US $270.82 |
||
|
827155C280
|
827155C280
82715-5C280 Bracket,wiring Harness Clamp |
82715-5C280 |
US $12.08 |
||
|
8271552X40
|
8271552X40
82715-52X40 Bracket,wiring Harness Clamp |
82715-52X40 |
US $8.44 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.96 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
