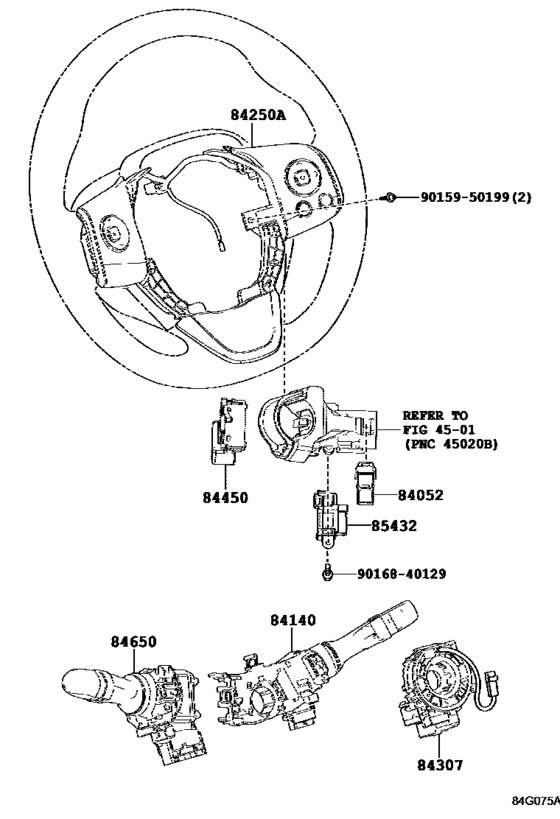

Switch & Relay & Computer ([06.2015 - ] STEERING (1506- )) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NHP170
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 07.2015
- Seating Capacity
- 07S
- Vehicle Model
- SIENTA
- Model Mark
- Q
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42030 Switch Assy, Headlamp Dimmer[06.2015 -] NHP170,NSP170 |
84140-42030 |
from US $74.10 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[06.2015 -] NHP170,NSP170..Q HEADLAMP-LED |
84140-42070 |
US $103.60 |
||
|
84250A
|
84250A
84250-52260-C2 Switch Assy, Steering Pad[06.2015 -] NHP170;NSP170..Q PIANOBLACK_22BK22,TRIM0#,2# |
84250-52260-C2 |
US $162.49 |
||
|
84307
|
84307
84307-47060 Cable Sub-Assy, Spiral[06.2015 -] NHP170;NSP170..Q |
84307-47060 |
US $392 |
||
|
84650
|
84650
84652-52251 Switch Assy, Windshield Wiper[06.2015 -] NHP170,NSP170 |
84652-52251 |
US $109.52 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.80 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
