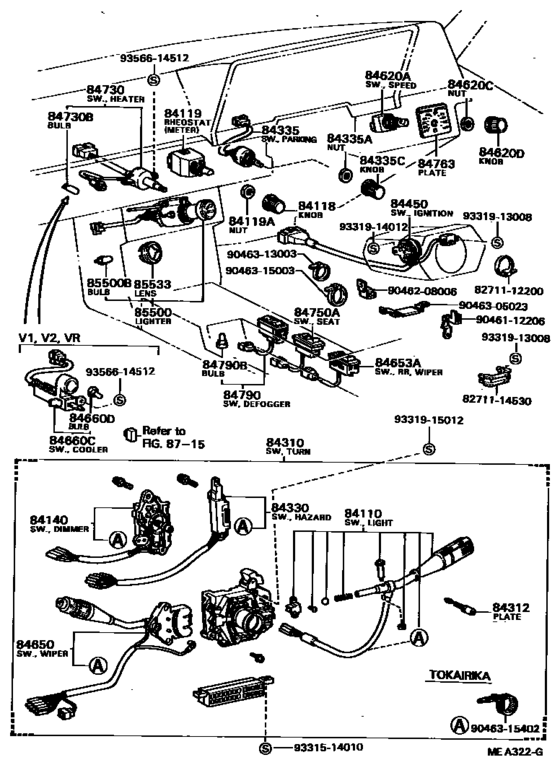

Switch & Relay & Computer ([02.1981 - 02.1983] (8102-8302)) Diagram Toyota SOARER
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MZ10
- body
- CP
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 02.1983
- Grade
- V2
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-19285
Switch Assy, Light Control, No.1
[02.1983 - 12.1985] GZ10,MZ1# MATSUSHITA |
84112-19285 |
— | ||
|
84110
|
84110
84112-19345
Switch Assy, Light Control, No.1
[02.1983 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84112-19345 |
— | ||
|
84110
|
84110
84112-29236 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [06.1981 - 02.1983] GZ10,MZ1# TOKAIRIKA |
84112-29236 |
US $69.89 |
||
|
84110
|
84110
84112-29246 Switch Assy, Light Control, No.1[06.1981 - 02.1983] GZ10,MZ1# MATSUSHITA |
84112-29246 |
US $69.89 |
||
| replacement | |||||
|
84110
|
84110
84112-29245 Switch Assy, Light Control, No.1[06.1981 - 02.1983] GZ10,MZ1# MATSUSHITA |
84112-29245 |
US $70.18 |
||
|
84118
|
84118
84115-24010 Knob, Tunnel Mode Select SwitchTUNNEL MODE SELECT SWITCH [02.1983 - 01.1985] GZ10,MZ1# |
84115-24010 |
US $14.12 |
||
|
84118
|
84118
84331-24010 Knob, Light Control Rheostat[02.1981 - 02.1983] GZ10,MZ1# |
84331-24010 |
US $11.21 |
||
|
84119
|
84119
84119-24010
Rheostat, Light Control
[02.1981 - 03.1982] GZ10,MZ10..V1,V2 METER |
84119-24010 |
— | ||
|
84119
|
84119
84119-24021 Rheostat, Light ControlLIGHT CONTROL [03.1982 - 01.1985] GZ10,MZ1# METER |
84119-24021 |
US $133.95 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[02.1981 - 03.1984] GZ10,MZ1# |
90170-09167 |
— | ||
|
84140
|
84140
84140-19125 Switch Assy, Headlamp Dimmer[06.1981 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84140-19125 |
US $66.25 |
||
| replacement | |||||
|
84140
|
84140
84140-24010 Switch Assy, Headlamp Dimmer[06.1981 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84140-24010 |
US $62.67 |
||
|
84140
|
84140
84140-19145 Switch Assy, Headlamp Dimmer[06.1981 - 12.1985] GZ10,MZ1# MATSUSHITA |
84140-19145 |
US $66.25 |
||
|
84310
|
84310
84310-24011 Switch Assy, Turn Signal[06.1981 - 02.1983] GZ10,MZ1# |
84310-24011 |
US $282.46 |
||
| replacement | |||||
|
84310
|
84310
84310-24012 Switch Assy, Turn Signal[06.1981 - 02.1983] GZ10,MZ1# |
84310-24012 |
US $281.01 |
||
|
84310
|
84310
84310-24012 Switch Assy, Turn Signal[02.1983 - 12.1985] GZ10,MZ1# |
84310-24012 |
US $281.01 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[02.1981 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84312-20011 |
from US $5.01 |
||
|
84312
|
84312
84312-20020
Plate, Horn Contact
[02.1981 - 12.1985] GZ10,MZ1# MATSUSHITA |
84312-20020 |
— | ||
|
84330
|
84330
84332-19095 Switch Assy, Hazard Warning Signal[06.1981 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84332-19095 |
US $60.13 |
||
| replacement | |||||
|
84330
|
84330
84332-29195 Switch Assy, Hazard Warning Signal[06.1981 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84332-29195 |
US $60.13 |
||
|
84330
|
84330
84332-19115 Switch Assy, Hazard Warning Signal[06.1981 - 12.1985] GZ10,MZ1# MATSUSHITA |
84332-19115 |
US $41.20 |
||
|
84335
|
84335
84330-24010 Switch Assy, Parking LampPARKING LAMP [02.1981 - 02.1983] GZ10,MZ1# |
84330-24010 |
US $40.19 |
||
|
84335
|
84335
84330-24020 Switch Assy, Parking LampPARKING LAMP [02.1983 - 12.1985] GZ10,MZ1# |
84330-24020 |
US $37.86 |
||
|
84335A
|
84335A
90170-09167
Nut, Tunnel Mode Select Switch
[02.1981 - 02.1983] GZ10,MZ1# |
90170-09167 |
— | ||
|
84335C
|
84335C
84331-24010 Knob, Light Control Rheostat[02.1981 - 02.1983] GZ10,MZ1# |
84331-24010 |
US $11.21 |
||
|
84450
|
84450
84450-22080 Switch Assy, Ignition Or Starter[02.1981 - 02.1983] GZ10,MZ1#..GT,TBO,V2,VR,VX |
84450-22080 |
US $70.18 |
||
|
84620A
|
84620A
84620-24010
Switch Assy, Speed Warning
[03.1982 - 02.1983] GZ10,MZ1# |
84620-24010 |
— | ||
|
84620C
|
84620C
90170-09167
Nut, Tunnel Mode Select Switch
[03.1982 - 02.1983] GZ10,MZ1# |
90170-09167 |
— | ||
|
84620D
|
84620D
84331-24010 Knob, Light Control Rheostat[03.1982 - 02.1983] GZ10,MZ1# |
84331-24010 |
US $11.21 |
||
|
84650
|
84650
84652-24022 Switch Assy, Windshield WiperWINDSHIELD WIPER [02.1983 - 12.1985] GZ10,MZ1# MATSUSHITA |
84652-24022 |
US $117.94 |
||
|
84650
|
84650
84652-29426
Switch Assy, Windshield Wiper
[06.1981 - 02.1983] GZ10,MZ1# TOKAIRIKA |
84652-29426 |
— | ||
|
84650
|
84650
84652-29427 Switch Assy, Windshield WiperWINDSHIELD WIPER [02.1983 - 12.1985] GZ10,MZ1# TOKAIRIKA |
84652-29427 |
US $119.39 |
||
|
84650
|
84650
84652-29436 Switch Assy, Windshield Wiper[06.1981 - 02.1983] GZ10,MZ1# MATSUSHITA |
84652-29436 |
US $110.66 |
||
| replacement | |||||
|
84650
|
84650
84652-24021
Switch Assy, Windshield Wiper
[06.1981 - 02.1983] GZ10,MZ1# MATSUSHITA |
84652-24021 |
— | ||
|
84660C
|
84660C
84660-24010 Switch, CoolerCOOLER [02.1981 - 12.1985] GZ10,MZ10..TBO,V1,V2,VR |
84660-24010 |
US $65.96 |
||
|
84660D
|
84660D
88607-14020
Bulb(For Cooler Switch)
[02.1981 - 12.1985] GZ10,MZ10..TBO,V1,V2,VR １４Ｖ １．４Ｗ |
88607-14020 |
— | ||
|
84730
|
84730
84732-24010 Switch Assy, Heater BlowerHEATER BLOWER [02.1981 - 12.1985] GZ10,MZ10..TBO,V1,V2,VR |
84732-24010 |
US $61.73 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[02.1981 - 12.1985] GZ10,MZ10..TBO,V1,V2,VR １４Ｖ １．４Ｗ,14V 1.4KW |
90981-11014 |
from US $1.92 |
||
|
84763
|
84763
84763-24010
Plate, Switch
[03.1982 - 02.1983] GZ10,MZ1# |
84763-24010 |
— | ||
|
84790
|
84790
84790-14150 Switch Assy, Rear Window Defogger[06.1981 - 12.1985] GZ10,MZ1# |
84790-14150 |
US $55.62 |
||
|
84790B
|
84790B
84999-10170 Bulb, Indicator Lamp[06.1981 - 12.1985] GZ10,MZ1# １２Ｖ １．１２Ｗ,12V 1.12W |
84999-10170 |
US $7.04 |
||
|
85500
|
85500
85500-24010
Lighter Assy, Cigarette
[02.1981 - 02.1983] GZ10,MZ1# |
85500-24010 |
— | ||
|
85500
|
85500
85500-24011 Lighter Assy, CigaretteCIGARETTE [02.1983 - 12.1985] GZ10,MZ1# |
85500-24011 |
US $80.08 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[02.1981 - 12.1985] GZ10,MZ1# １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85533
|
85533
85533-24010 Lens, Cigarette Lighter Indicator[02.1981 - 11.1982] GZ10,MZ1# |
85533-24010 |
US $10.05 |
||
| replacement | |||||
|
85533
|
85533
85533-24011
Lens, Cigarette Lighter Indicator
[02.1981 - 11.1982] GZ10,MZ1# |
85533-24011 |
— | ||
|
85533
|
85533
85533-24011
Lens, Cigarette Lighter Indicator
[11.1982 - 12.1985] GZ10,MZ1# |
85533-24011 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8271114530
|
8271114530
82711-14530 Clamp,(For Ignition Switch Wire) |
82711-14530 |
US $4.66 |
||
|
9046112206
|
9046112206
90461-12206 New Genuine Part |
90461-12206 |
US $6.55 |
||
|
9046208006
|
9046208006
90462-08006 Clamp,(For Ignition Switch Wire) |
90462-08006 |
US $7.28 |
||
| replacement | |||||
|
9046208006
|
9046208006
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9046305023
|
9046305023
90463-05023 New Genuine Part |
90463-05023 |
US $7.86 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
