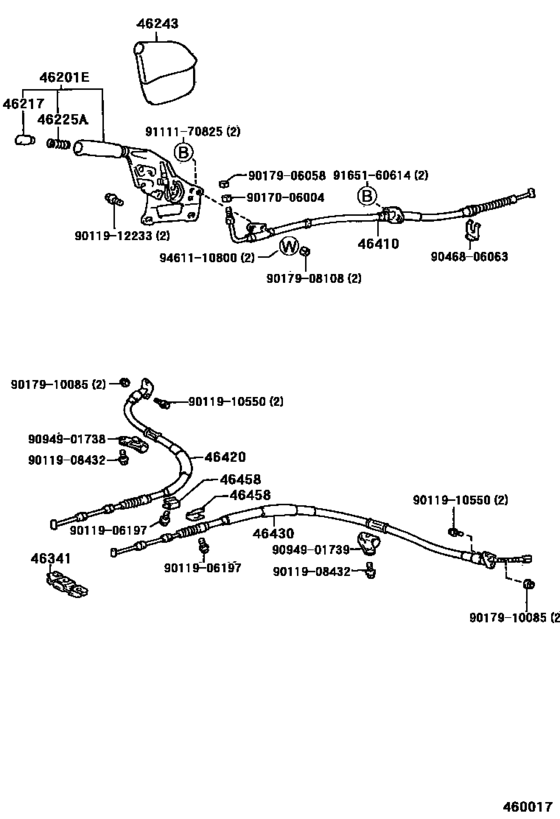

Parking Brake & Cable ([05.1991 - ] (9105- )UZZ32) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-24050-03
Lever Sub-Assy, Parking Brake
[05.1991 - 01.1994] JZZ30,UZZ3#..GT,GTL,GTTL SHADOW GRAY,TRIM1# |
46201-24050-03 |
— | ||
|
46201E
|
46201E
46201-24050-05
Lever Sub-Assy, Parking Brake
[05.1991 - 01.1994] JZZ30,UZZ3#..GT,GTL,GTTL GREIGE,TRIM0# |
46201-24050-05 |
— | ||
|
46201E
|
46201E
46201-24050-07 Lever Sub-Assy, Parking Brake[05.1991 - 01.1994] JZZ30,UZZ3#..GT,GTL,GTTL DARK SPRUCE,TRIM6# |
46201-24050-07 |
US $82.99 |
||
|
46201E
|
46201E
46201-24090-C0
Lever Sub-Assy, Parking Brake
[01.1994 - 08.1996] JZZ3#,UZZ3# ｱﾘ(ｶﾜﾏｷ ｸﾞﾘﾂﾌﾟ),BLACK,TRIM2# |
46201-24090-C0 |
— | ||
|
46201E
|
46201E
46201-24090-E0 Lever Sub-Assy, Parking Brake[01.1994 - 08.1996] JZZ3#,UZZ3# ｱﾘ(ｶﾜﾏｷ ｸﾞﾘﾂﾌﾟ),OAK,TRIM0# |
46201-24090-E0 |
US $84.45 |
||
|
46201E
|
46201E
46201-24090-G0 Lever Sub-Assy, Parking Brake[01.1994 - 08.1996] JZZ3#,UZZ3# ｱﾘ(ｶﾜﾏｷ ｸﾞﾘﾂﾌﾟ),SPRUCE GRAY,TRIM6# |
46201-24090-G0 |
US $84.45 |
||
|
46217
|
46217
46217-24010-03 Knob, Parking Brake Release Rod[05.1991 - 01.1994] JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
46217-24010-03 |
US $4.66 |
||
|
46217
|
46217
46217-24010-05 Knob, Parking Brake Release Rod[05.1991 - 01.1994] JZZ30,UZZ3# GREIGE,TRIM0# |
46217-24010-05 |
US $4.66 |
||
|
46217
|
46217
46217-24010-07 Knob, Parking Brake Release Rod[05.1991 - 01.1994] JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
46217-24010-07 |
US $4.66 |
||
| replacement | |||||
|
46217
|
46217
46217-24010-G0 Knob, Parking Brake Release Rod[05.1991 - 01.1994] JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
46217-24010-G0 |
US $4.66 |
||
|
46217
|
46217
46217-24010-C0 Knob, Parking Brake Release Rod[01.1994 -] JZZ3#,UZZ3# BLACK,TRIM2# |
46217-24010-C0 |
US $4.54 |
||
|
46217
|
46217
46217-24010-E0 Knob, Parking Brake Release Rod[01.1994 -] JZZ3#,UZZ3# OAK,TRIM0# |
46217-24010-E0 |
US $4.66 |
||
|
46217
|
46217
46217-24010-G0 Knob, Parking Brake Release Rod[01.1994 - 08.1998] JZZ3#,UZZ3# SPRUCE GRAY,TRIM6# |
46217-24010-G0 |
US $4.66 |
||
|
46225A
|
46225A
90501-10180 Spring, Compression(For Parking Brake Pawl Rod)[05.1991 -] JZZ3#,UZZ3# |
90501-10180 |
US $1.14 |
||
|
46243
|
46243
46243-24020-03
Cover, Parking Brake Lever
[05.1991 - 01.1994] JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
46243-24020-03 |
— | ||
|
46243
|
46243
46243-24020-05
Cover, Parking Brake Lever
[05.1991 - 01.1994] JZZ30,UZZ3# GREIGE,TRIM0# |
46243-24020-05 |
— | ||
|
46243
|
46243
46243-24020-07
Cover, Parking Brake Lever
[05.1991 - 01.1994] JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
46243-24020-07 |
— | ||
| replacement | |||||
|
46243
|
46243
46243-24020-03
Cover, Parking Brake Lever
[05.1991 - 01.1994] JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
46243-24020-03 |
— | ||
|
46243
|
46243
46243-24040-C0 Cover, Parking Brake Lever[01.1994 -] JZZ3#,UZZ3# BLACK,TRIM2# |
46243-24040-C0 |
US $41.19 |
||
|
46243
|
46243
46243-24040-E0 Cover, Parking Brake Lever[01.1994 -] JZZ3#,UZZ3# OAK,TRIM0# |
46243-24040-E0 |
US $36.55 |
||
|
46243
|
46243
46243-24040-G0
Cover, Parking Brake Lever
[01.1994 - 08.1998] JZZ3#,UZZ3# SPRUCE GRAY,TRIM6# |
46243-24040-G0 |
— | ||
|
46341
|
46341
46341-24010 Equalizer, Parking Brake[05.1991 -] JZZ3#,UZZ3# |
46341-24010 |
US $9.44 |
||
|
46410
|
46410
46410-24040
Cable Assy, Parking Brake, No.1
[05.1991 -] JZZ3#,UZZ3# |
46410-24040 |
— | ||
|
46420
|
46420
46420-24070 Cable Assy, Parking Brake, No.2[05.1991 - 08.1996] UZZ32 |
46420-24070 |
US $35.82 |
||
|
46430
|
46430
46430-24070 Cable Assy, Parking Brake, No.3[05.1991 - 08.1996] UZZ32 |
46430-24070 |
US $35.82 |
||
|
46458
|
46458
46458-28010 Retainer, Cable[01.1996 -] JZZ3#,UZZ3# |
46458-28010 |
US $3.68 |
||
|
46458
|
46458
46458-50010 Retainer, Cable[05.1991 - 01.1996] JZZ3#,UZZ3# |
46458-50010 |
from US $5.44 |
||
|
9011906197
|
9011906197
90119-06197 New Genuine Part |
90119-06197 |
US $0.87 |
||
|
9011908432
|
9011908432
90119-08432
New Genuine Part
|
90119-08432 |
— | ||
| replacement | |||||
|
9011908432
|
9011908432
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.60 |
||
| replacement | |||||
|
9011910550
|
9011910550
90080-11399 New Genuine Part |
90080-11399 |
US $2.73 |
||
|
9011912233
|
9011912233
90119-12233 BOLT, W/WASHER |
90119-12233 |
US $4.02 |
||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908108
|
9017908108
90179-08108 Nut |
90179-08108 |
US $2.56 |
||
|
9017910085
|
9017910085
90179-10085 NUT |
90179-10085 |
from US $2.56 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.44 |
||
|
9094901738
|
9094901738
90949-01738 New Genuine Part |
90949-01738 |
US $5.24 |
||
|
9094901739
|
9094901739
90949-01739 New Genuine Part |
90949-01739 |
US $5.24 |
||
|
9111170825
|
9111170825
91111-70825 Bolt, Flexible Attaching(for Steering Main Shaft) |
91111-70825 |
US $2.33 |
||
| replacement | |||||
|
9111170825
|
9111170825
91111-80825 Bolt, Flexible Attaching(for Steering Main Shaft) |
91111-80825 |
US $1.60 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
