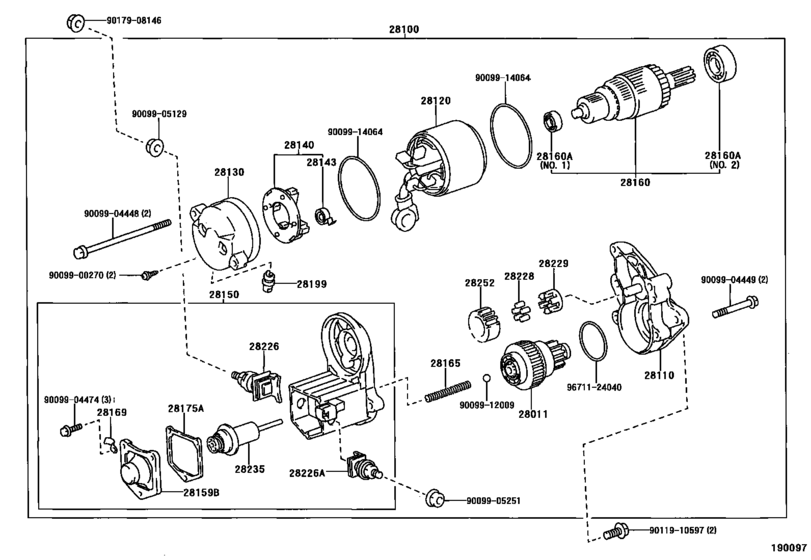

Starter ([05.1995 - ] 12V 1.4KW (9505- )1UZFE) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-35030 Clutch Sub-Assy, Starter[05.1991 - 01.1994] 1UZFE..UZZ3# |
28011-35030 |
from US $155.71 |
||
|
28011
|
28011
28011-50030 Clutch Sub-Assy, Starter[01.1994 - 05.1995] 1UZFE..UZZ3# |
28011-50030 |
US $285.38 |
||
|
28011
|
28011
28011-50050 Clutch Sub-Assy, Starter[05.1995 - 09.1997] 1UZFE..UZZ3# |
28011-50050 |
US $270.82 |
||
|
28100
|
28100
28100-50030 Starter Assy[05.1991 - 05.1995] 1UZFE..UZZ3# １２Ｖ １．６ＫＷ |
28100-50030 |
US $1,485.12 |
||
| replacement | |||||
|
28100
|
28100
28100-50020 Starter Assy[05.1991 - 05.1995] 1UZFE..UZZ3# １２Ｖ １．６ＫＷ |
28100-50020 |
US $1,805.44 |
||
|
28100
|
28100
28100-50050 Starter Assy[05.1995 - 01.1997] 1UZFE..UZZ3# １２Ｖ １．４ＫＷ |
28100-50050 |
US $1,412.32 |
||
| replacement | |||||
|
28100
|
28100
28100-50052 Starter Assy[05.1995 - 01.1997] 1UZFE..UZZ3# １２Ｖ １．４ＫＷ |
28100-50052 |
US $1,412.32 |
||
|
28110
|
28110
28110-50030 Housing Assy, Starter Drive[05.1991 - 01.1994] 1UZFE..UZZ3# |
28110-50030 |
US $80.08 |
||
|
28110
|
28110
28110-50031 Housing Assy, Starter Drive[01.1994 - 05.1995] 1UZFE..UZZ3# |
28110-50031 |
US $80.08 |
||
|
28110
|
28110
28110-50050 Housing Assy, Starter Drive[05.1995 - 09.1997] 1UZFE..UZZ3# |
28110-50050 |
US $80.08 |
||
|
28120
|
28120
28120-65030
Yoke Assy, Starter
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28120-65030 |
— | ||
|
28120
|
28120
28120-74070
Yoke Assy, Starter
[05.1995 - 09.1997] 1UZFE..UZZ3# |
28120-74070 |
— | ||
|
28130
|
28130
28130-50030
Frame Assy, Starter Commutator End
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28130-50030 |
— | ||
|
28130
|
28130
28130-50050
Frame Assy, Starter Commutator End
[05.1995 - 09.1997] 1UZFE..UZZ3# |
28130-50050 |
— | ||
|
28140
|
28140
28140-15090
Holder Assy, Starter Brush
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28140-15090 |
— | ||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[05.1995 - 09.1997] 1UZFE..UZZ3# |
28140-76070 |
from US $17.65 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.1991 - 09.1997] 1UZFE..UZZ3# |
90099-17112 |
— | ||
|
28150
|
28150
28150-50030 Switch Assy, Magnet Starter[05.1991 - 01.1994] 1UZFE..UZZ3# |
28150-50030 |
US $330.51 |
||
|
28150
|
28150
28150-50031 Switch Assy, Magnet Starter[01.1994 - 05.1995] 1UZFE..UZZ3# |
28150-50031 |
US $234.42 |
||
|
28150
|
28150
28150-50050 Switch Assy, Magnet Starter[05.1995 - 01.1997] 1UZFE..UZZ3# |
28150-50050 |
US $224.22 |
||
| replacement | |||||
|
28150
|
28150
28150-50054 Switch Assy, Magnet Starter[05.1995 - 01.1997] 1UZFE..UZZ3# |
28150-50054 |
US $224.22 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28159-10040 |
— | ||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28159-55050 |
— | ||
|
28160
|
28160
28160-65031 Armature Assy, Starter[05.1991 - 05.1995] 1UZFE..UZZ3# |
28160-65031 |
US $187.82 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[05.1995 - 09.1997] 1UZFE..UZZ3# |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[05.1991 - 05.1995] 1UZFE..UZZ3# ＮＯ．２ |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10144
Bearing, Starter Armature
[05.1991 - 05.1995] 1UZFE..UZZ3# ＮＯ．１ |
90099-10144 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# ＮＯ．２ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# ＮＯ．１ |
90099-10197 |
from US $7.34 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28165-26040 |
— | ||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28165-76070 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[05.1991 - 05.1995] 1UZFE..UZZ31,32 |
28169-10040 |
— | ||
|
28169
|
28169
28169-55050
Clamp, Starter Motor Lead Wire
[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28169-55050 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[05.1991 - 05.1995] 1UZFE..UZZ31,32 |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28175-55050 |
from US $1.91 |
||
|
28199
|
28199
28199-15090
Cover, Starter End Frame
[05.1991 - 01.1994] 1UZFE..UZZ3# |
28199-15090 |
— | ||
|
28199
|
28199
28199-50030
Cover, Starter
[01.1994 - 05.1995] 1UZFE..UZZ3# |
28199-50030 |
— | ||
|
28199
|
28199
28199-50050
Cover, Starter End Frame
[05.1995 - 09.1997] 1UZFE..UZZ3# |
28199-50050 |
— | ||
|
28226
|
28226
28226-50030 Starter Kit, Battery Terminal[05.1991 - 05.1995] 1UZFE..UZZ3# |
28226-50030 |
US $14.70 |
||
|
28226
|
28226
28226-76070
Starter Kit, Battery Terminal
[05.1995 - 01.1997] 1UZFE..UZZ3# |
28226-76070 |
— | ||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[05.1991 - 05.1995] 1UZFE..UZZ3# |
28226-72010 |
from US $10.49 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[05.1991 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[05.1991 - 05.1995] 1UZFE..UZZ3# |
28229-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28229-74070 |
US $1.46 |
||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[05.1991 - 05.1995] 1UZFE..UZZ31,32 |
28235-35080 |
from US $25.68 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[05.1995 - 09.1997] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
28235-55050 |
from US $20.27 |
||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[05.1991 - 01.1994] 1UZFE..UZZ3# |
28254-45020 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[01.1994 - 05.1995] 1UZFE..UZZ3# |
28254-54070 |
— | ||
|
28252
|
28252
28254-74070
Pinion, Starter Drive
[05.1995 - 09.1997] 1UZFE..UZZ3# |
28254-74070 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9011910597
|
9011910597
90119-10597 New Genuine Part |
90119-10597 |
US $3.32 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9671124040
|
9671124040
96711-24040 Ring, O(For Starter Clutch) |
96711-24040 |
US $3.79 |
||
