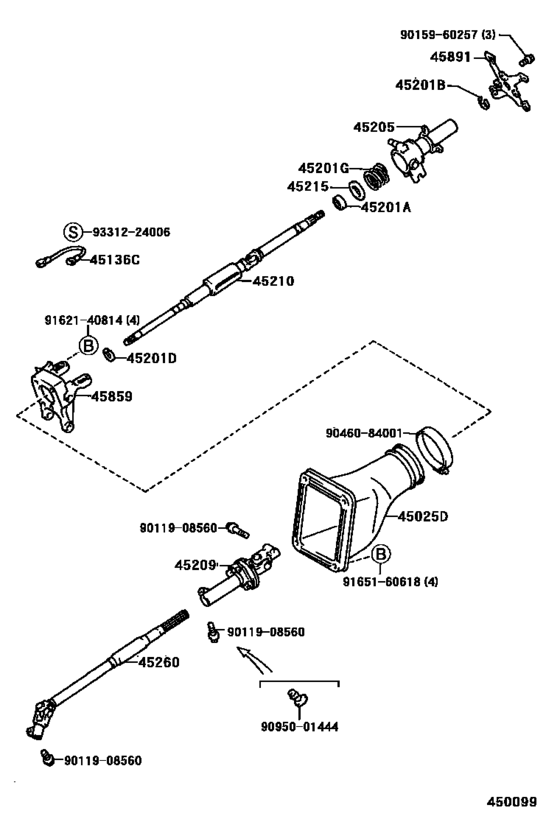

Steering Column & Shaft ([05.1991 - ] (9105- )UZZ31,32) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-24020
Cover Sub-Assy, Steering Column Hole, No.1
[05.1991 -] JZZ3#,UZZ3# |
45025-24020 |
— | ||
|
45136C
|
45136C
45832-41010 Cable, Bond(For Horn Earth)[03.1995 - 09.1997] UZZ3# |
45832-41010 |
US $6.81 |
||
|
45136C
|
45136C
90980-07312 Cable, Bond(For Horn Earth)[05.1991 - 03.1995] UZZ31,32 |
90980-07312 |
US $6.84 |
||
| replacement | |||||
|
45136C
|
45136C
45832-41010 Cable, Bond(For Horn Earth)[05.1991 - 03.1995] UZZ31,32 |
45832-41010 |
US $6.81 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[05.1991 - 06.1994] JZZ3#,UZZ3# |
90363-18005 |
from US $6.03 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[05.1991 -] JZZ3#,UZZ3# 厚さ＝１．２０ |
90520-17042 |
from US $0.86 |
||
|
45201D
|
45201D
90520-16004 Ring(For Steering Main Shaft)[05.1991 -] JZZ3#,UZZ3# |
90520-16004 |
US $1.75 |
||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[05.1991 -] JZZ3#,UZZ3# |
90501-40017 |
from US $4.02 |
||
|
45205
|
45205
45205-50010 Tube Sub-Assy, Steering Column[05.1991 - 03.1996] UZZ31,32 ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ & ﾃﾞﾝﾄﾞｳ ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
45205-50010 |
US $63.04 |
||
| replacement | |||||
|
45205
|
45205
45205-50011 Tube Sub-Assy, Steering Column[05.1991 - 03.1996] UZZ31,32 ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ & ﾃﾞﾝﾄﾞｳ ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
45205-50011 |
US $63.48 |
||
|
45209
|
45209
45209-14040
Yoke Sub-Assy, Steering Sliding
[05.1993 -] JZZ3#,UZZ3# |
45209-14040 |
— | ||
|
45209
|
45209
45209-24010
Yoke Sub-Assy, Steering Sliding
[05.1991 - 05.1993] JZZ30,UZZ3# |
45209-24010 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-14040
Yoke Sub-Assy, Steering Sliding
[05.1991 - 05.1993] JZZ30,UZZ3# |
45209-14040 |
— | ||
|
45210
|
45210
45210-24020 Shaft Assy, Steering Main[01.1994 -] JZZ3#,UZZ3# |
45210-24020 |
US $171.81 |
||
| replacement | |||||
|
45210
|
45210
45210-24021 Shaft Assy, Steering Main[01.1994 -] JZZ3#,UZZ3# |
45210-24021 |
US $171.81 |
||
|
45210
|
45210
45210-24030 Shaft Assy, Steering Main[05.1991 - 01.1994] JZZ30,UZZ3# |
45210-24030 |
US $254.80 |
||
| replacement | |||||
|
45210
|
45210
45210-24021 Shaft Assy, Steering Main[05.1991 - 01.1994] JZZ30,UZZ3# |
45210-24021 |
US $171.81 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[05.1991 -] JZZ3#,UZZ3# |
45215-12010 |
from US $1.66 |
||
|
45260
|
45260
45260-24070
Shaft Assy, Steering Intermediate, No.2
[05.1991 -] JZZ3#,UZZ3# |
45260-24070 |
— | ||
|
45859
|
45859
45859-50010 Support, Tilt Steering Housing[05.1991 - 09.1997] UZZ31,32 |
45859-50010 |
US $50.09 |
||
|
45891
|
45891
45891-24020 Bracket, Turn Signal[05.1991 - 09.1997] UZZ31,32 |
45891-24020 |
US $10.19 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9015960257
|
9015960257
90159-60257 New Genuine Part |
90159-60257 |
US $1.60 |
||
|
9046084001
|
9046084001
90460-84001
New Genuine Part
|
90460-84001 |
— | ||
|
9095001444
|
9095001444
90950-01444 PLUG |
90950-01444 |
US $4.48 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9331224006
|
9331224006
93312-24006 New Genuine Part |
93312-24006 |
US $1.60 |
||
